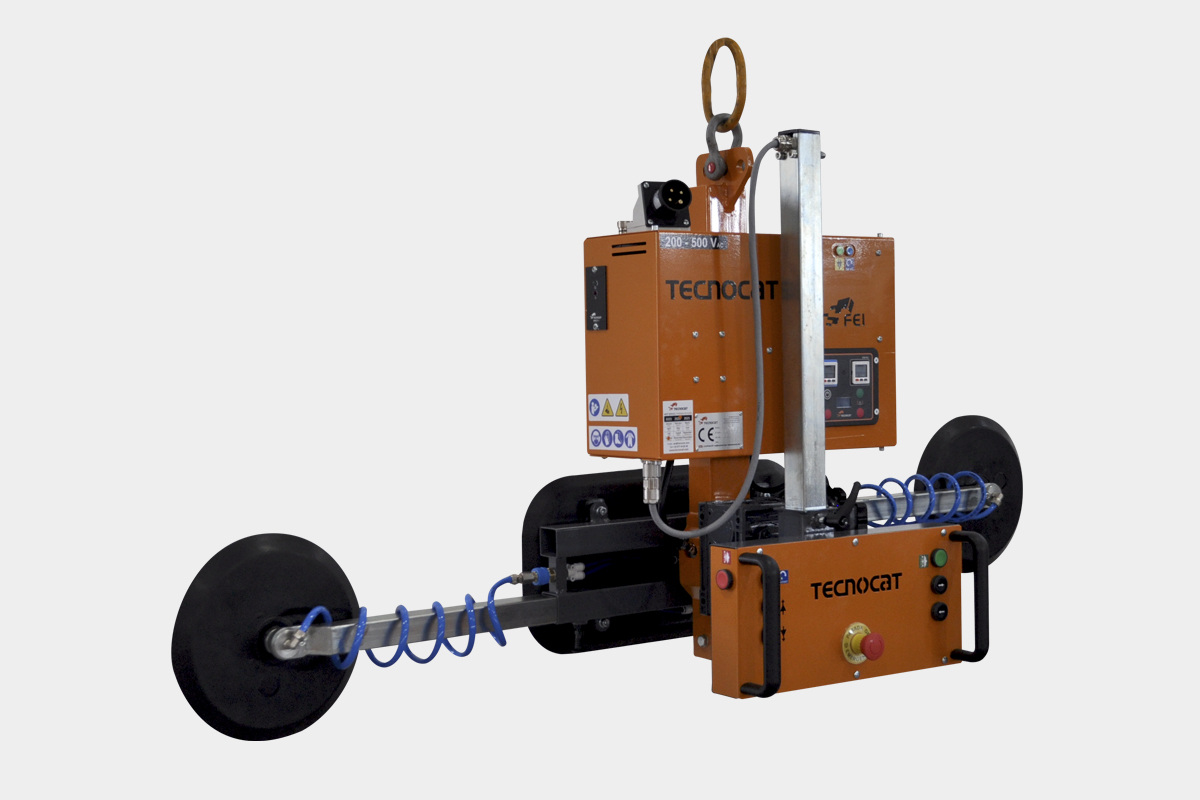

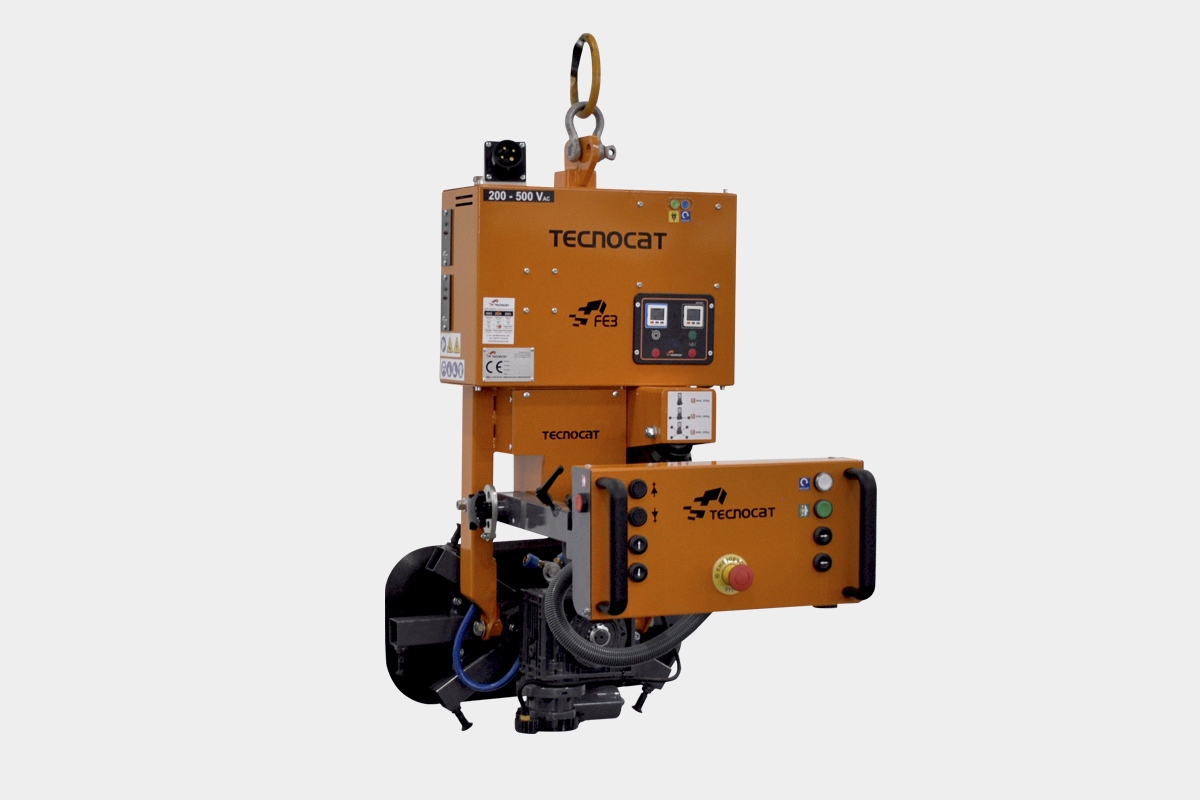

FE3-400G I FE3-400G+4AL-FE3
Light equipment specially indicated for vertical and horizontal glass handling processes such as work on edging machines, vertical and horizontal CNC, vertical and horizontal washing machines, tempering furnaces, handling and assembly of doors and windows, cutting tables...
Electric operation, 360º rotation and 0-90º tilt with smooth and precise movements that facilitate effortless work for the operator.
It incorporates the new digital control modules in line with Industry 4.0. It has a vacuum indicator, as well as a light and acoustic alarm. Through an APP you can obtain information about the equipment, diagnostics and alarms.

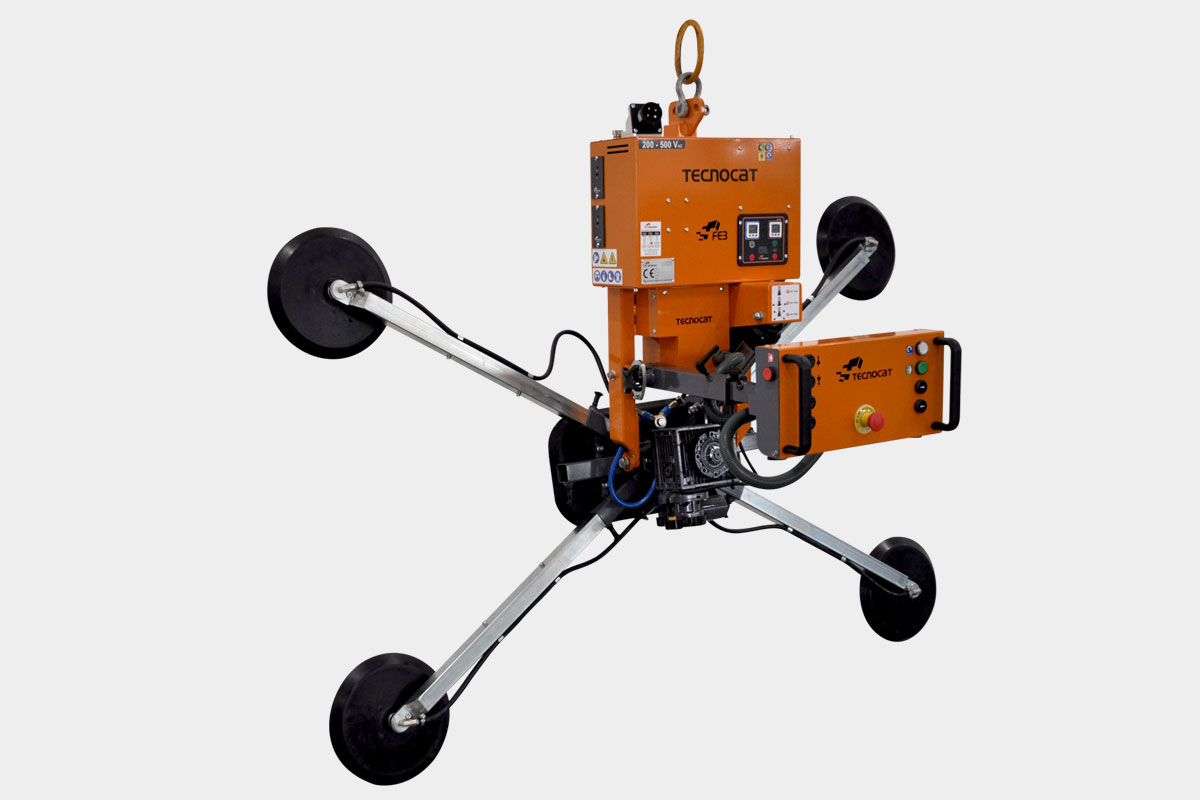

The central rectangular plate provides a great suction which allows to load up to 250Kg, adding the extensions allows to increase the gripping surface for larger sheets and capacity up to 400Kg.
This equipment combines perfectly with TECNOCAT LIFTING SYSTEMS. It is possible to control the lifting and lowering movements of the hoist (fast and slow) from the suction cup controls.
It has a multi-voltage electrical connection (200-500v) and a horizontally extendable control panel to tilt large format sheets.
