FF4-2400

FF4-2400

FF4-2400 Data

Maximum load capacity 2000 kg
Maximum load capacity according to EN13155 1000 kg
Equipment weight 175 kg
Equipment produced according to EN13155 OK
Nominal electrical power 480 W
Pushbutton cable length 3 m.
Wireless pushbutton OPCIONAL
Electrical power 200 - 500 VAC (50 - 60 Hz) Thriphase/Monopahse
Vacuum system air flow 166 L/min
Equipment support system OK
Equipment support system OK

The HANDLING SERIES family brings together all those vacuum equipment especially designed to work in specific processes on production lines, large glass formats, cargo handling and processes in which the WORK and FACTORY series vacuum equipment are not suitable.
Desde equipos de ventosas fijas verticales, fijas horizontales, para vidrios con tratamientos especiales, pinzas para mover de hojas de vidrio… hasta carros de instalación manuales y automáticos, la gran familia HANDLING no deja ningún tipo de procesado sin atender.

From vertical fixed or horizontal fixed vacuum equipment, for glasses with special protection layer treatments, clamps to move glass sheets ... to manual and automatic installation trolleys, this HANDLING family does not leave any type of processing without being attended.

FF4-2400 Drawings

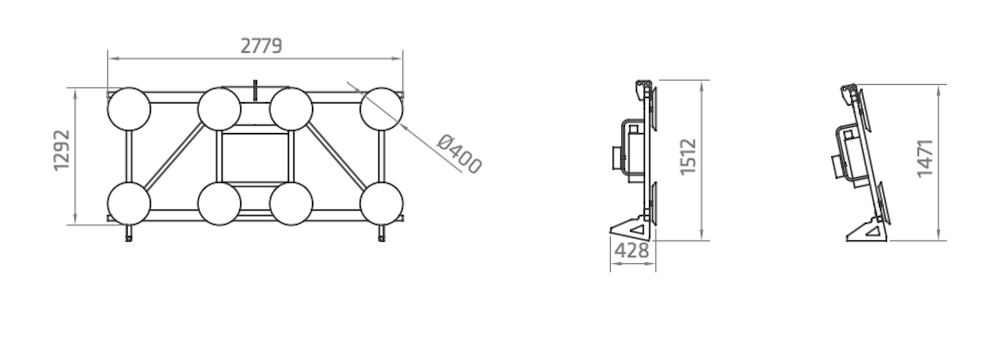

FF4-2400 esquema

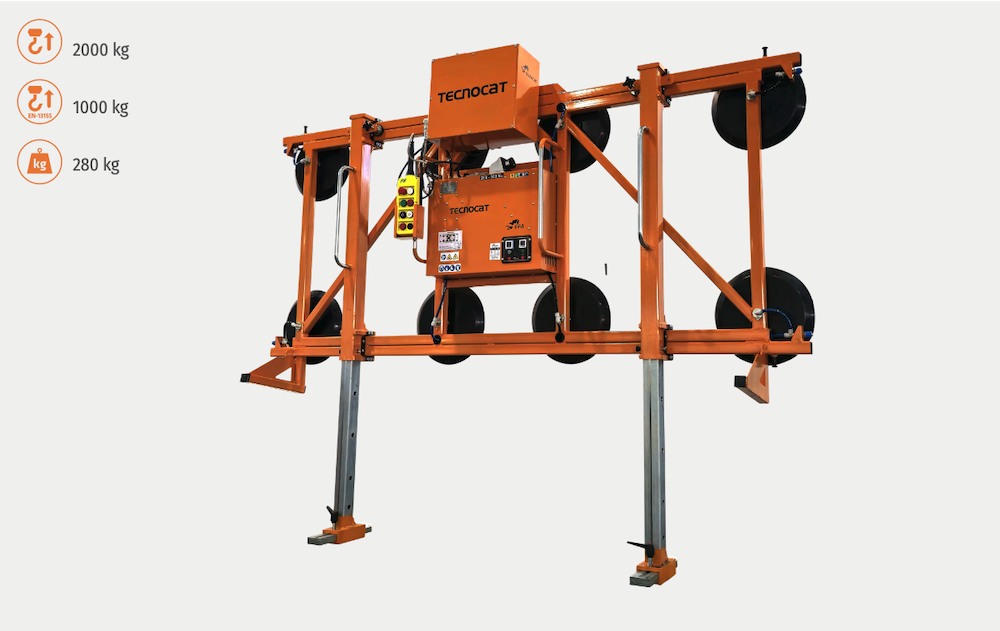

FF4-2400+P

FF4-2400+P

FF4-2400+P Data

Maximum load capacity 2000 kg
Maximum load capacity according to EN13155 1000 kg
Equipment weight 280 kg
Equipment produced according to EN13155 OK
Nominal electrical power 480 W
Pushbutton cable length 3 m.
Wireless pushbutton OPCIONAL
Electrical power 200 - 500 VAC (50 - 60 Hz) Thriphase/Monopahse
Vacuum system air flow 166 L/min
Equipment support system OK
Equipment support system OK

The HANDLING SERIES family brings together all those vacuum equipment especially designed to work in specific processes on production lines, large glass formats, cargo handling and processes in which the WORK and FACTORY series vacuum equipment are not suitable.
Desde equipos de ventosas fijas verticales, fijas horizontales, para vidrios con tratamientos especiales, pinzas para mover de hojas de vidrio… hasta carros de instalación manuales y automáticos, la gran familia HANDLING no deja ningún tipo de procesado sin atender.

From vertical fixed or horizontal fixed vacuum equipment, for glasses with special protection layer treatments, clamps to move glass sheets ... to manual and automatic installation trolleys, this HANDLING family does not leave any type of processing without being attended.

FF4-2400+P Drawings

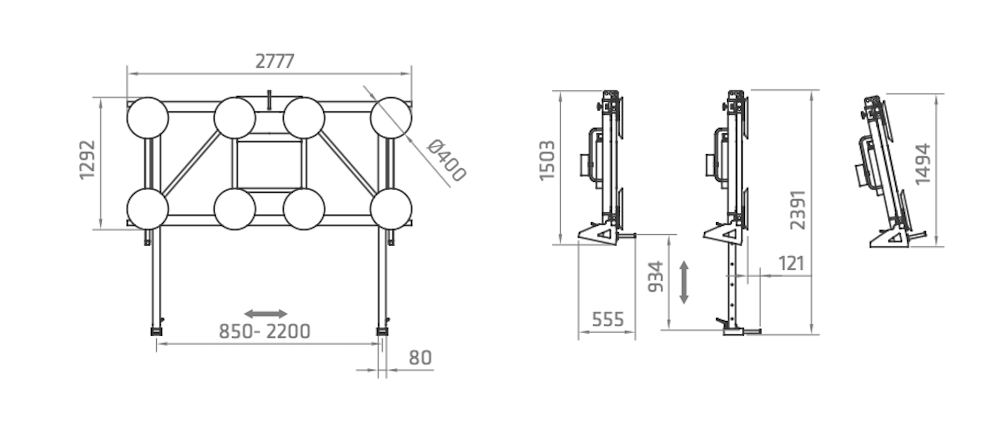

FF4-2400+P esquema

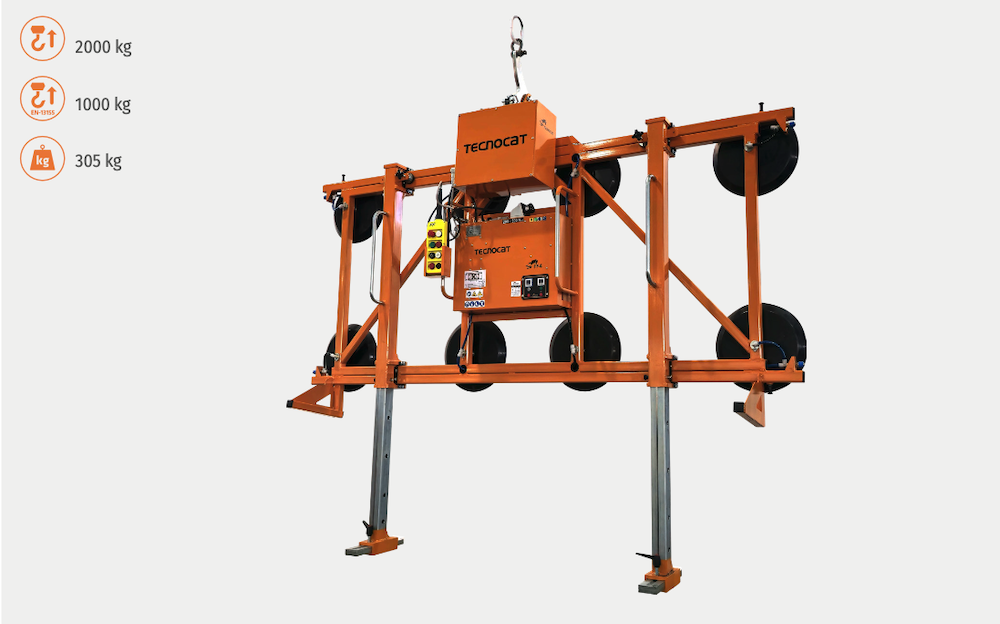

FF4-2400+P+I

FF4-2400+P+I

FF4-2400+P+I Data

Maximum load capacity 2000 kg
Maximum load capacity according to EN13155 1000 kg
Equipment weight 305 kg
Equipment produced according to EN13155 OK
Nominal electrical power 480 W
Pushbutton cable length 3 m.
Wireless pushbutton OPCIONAL
Electrical power 200 - 500 VAC (50 - 60 Hz) Thriphase/Monopahse
Vacuum system air flow 166 L/min
Equipment support system OK
Equipment support system OK

The HANDLING SERIES family brings together all those vacuum equipment especially designed to work in specific processes on production lines, large glass formats, cargo handling and processes in which the WORK and FACTORY series vacuum equipment are not suitable.
Desde equipos de ventosas fijas verticales, fijas horizontales, para vidrios con tratamientos especiales, pinzas para mover de hojas de vidrio… hasta carros de instalación manuales y automáticos, la gran familia HANDLING no deja ningún tipo de procesado sin atender.

From vertical fixed or horizontal fixed vacuum equipment, for glasses with special protection layer treatments, clamps to move glass sheets ... to manual and automatic installation trolleys, this HANDLING family does not leave any type of processing without being attended.

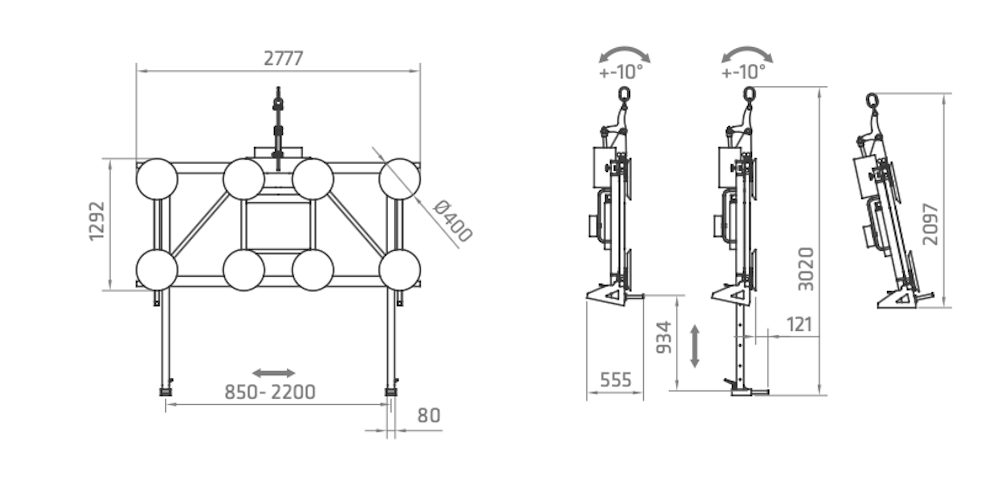

FF4-2400+P+I Drawings

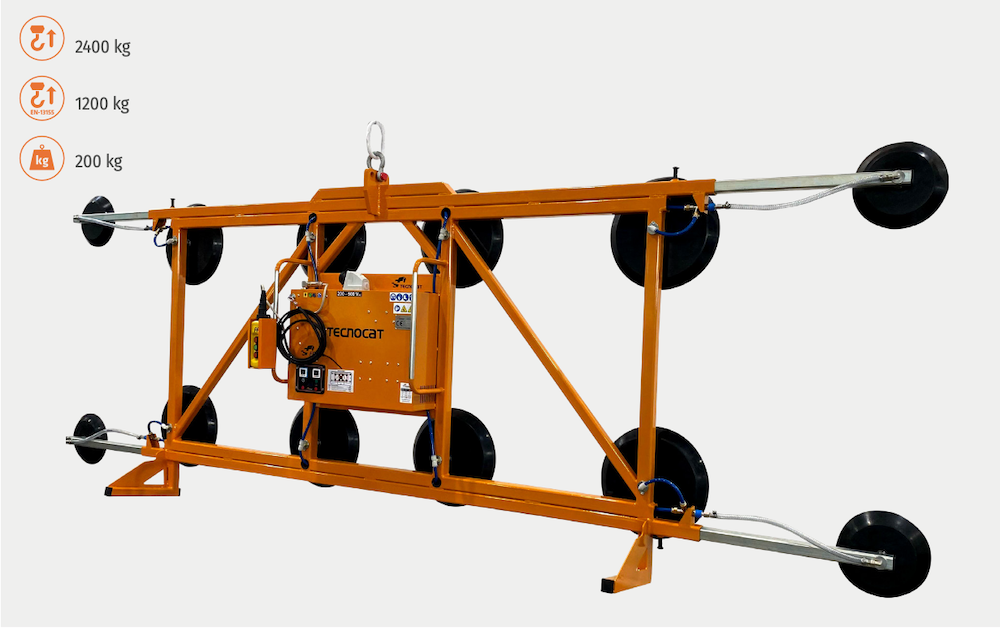

FF4-2400+4

FF4-2400+4

FF4-2400+4 Data

Maximum load capacity 2400 kg
Maximum load capacity according to EN13155 1200 kg
Equipment weight 200 kg
Equipment produced according to EN13155 OK
Nominal electrical power 480 W
Pushbutton cable length 3 m.
Wireless pushbutton OPCIONAL
Electrical power 200 - 500 VAC (50 - 60 Hz) Thriphase/Monopahse
Vacuum system air flow 166 L/min
Equipment support system OK
Equipment support system OK

The HANDLING SERIES family brings together all those vacuum equipment especially designed to work in specific processes on production lines, large glass formats, cargo handling and processes in which the WORK and FACTORY series vacuum equipment are not suitable.
Desde equipos de ventosas fijas verticales, fijas horizontales, para vidrios con tratamientos especiales, pinzas para mover de hojas de vidrio… hasta carros de instalación manuales y automáticos, la gran familia HANDLING no deja ningún tipo de procesado sin atender.

From vertical fixed or horizontal fixed vacuum equipment, for glasses with special protection layer treatments, clamps to move glass sheets ... to manual and automatic installation trolleys, this HANDLING family does not leave any type of processing without being attended.

FF4-2400+4 Drawings

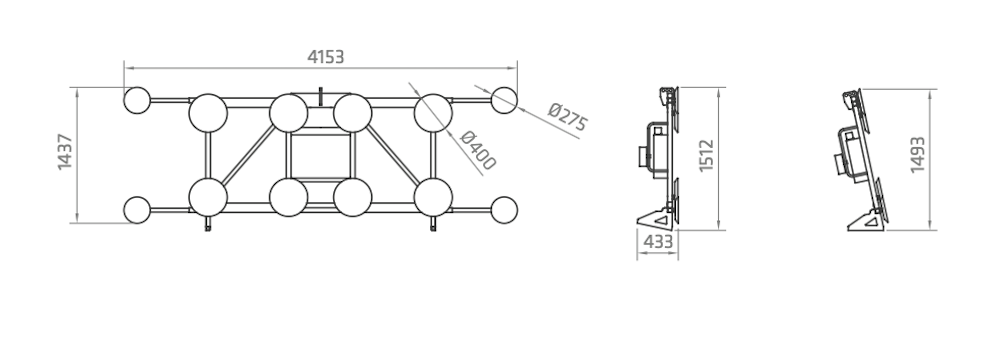

FF4-2400+4 esquema

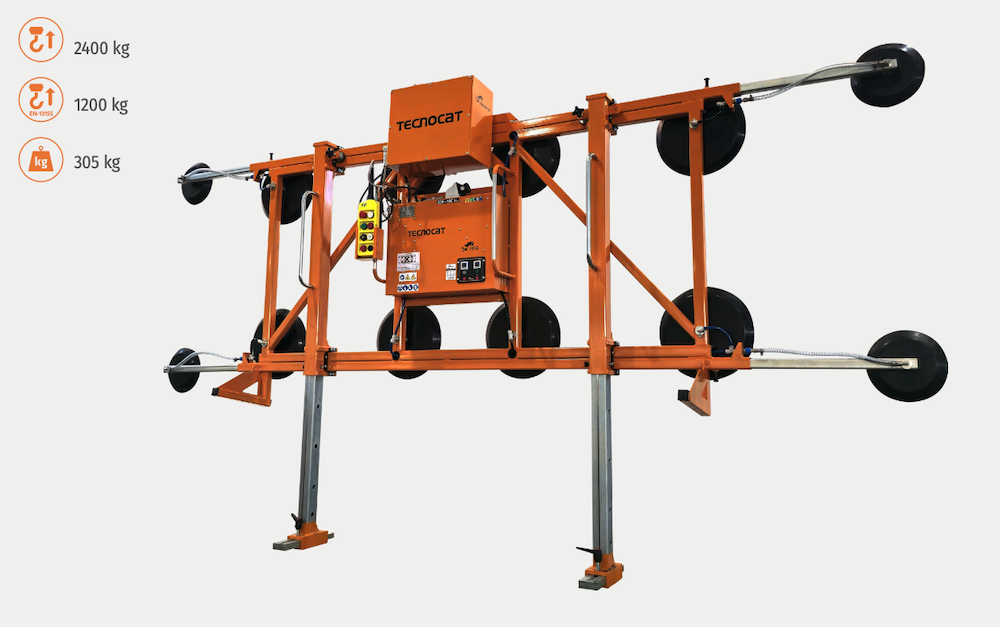

FF4-2400+4+P

FF4-2400+4+P

FF4-2400+4+P Data

Maximum load capacity 2400 kg
Maximum load capacity according to EN13155 1200 kg
Equipment weight 305 kg
Equipment produced according to EN13155 OK
Nominal electrical power 480 W
Pushbutton cable length 3 m.
Wireless pushbutton OPCIONAL
Electrical power 200 - 500 VAC (50 - 60 Hz) Thriphase/Monopahse
Vacuum system air flow 166 L/min
Equipment support system OK
Equipment support system OK

The HANDLING SERIES family brings together all those vacuum equipment especially designed to work in specific processes on production lines, large glass formats, cargo handling and processes in which the WORK and FACTORY series vacuum equipment are not suitable.
Desde equipos de ventosas fijas verticales, fijas horizontales, para vidrios con tratamientos especiales, pinzas para mover de hojas de vidrio… hasta carros de instalación manuales y automáticos, la gran familia HANDLING no deja ningún tipo de procesado sin atender.

From vertical fixed or horizontal fixed vacuum equipment, for glasses with special protection layer treatments, clamps to move glass sheets ... to manual and automatic installation trolleys, this HANDLING family does not leave any type of processing without being attended.

FF4-2400+4+P Drawings

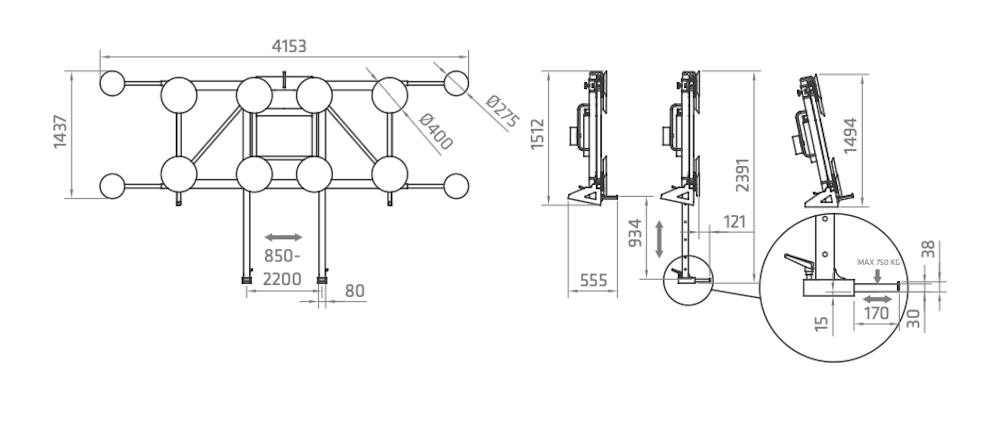

FF4-2400+4+P esquema

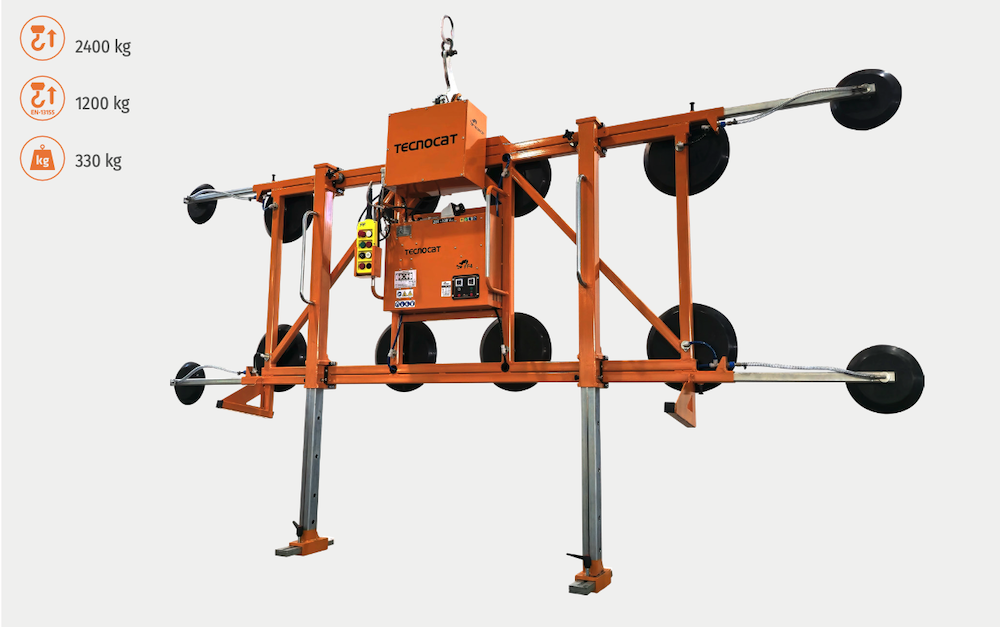

FF4-2400+4+P+I

FF4-2400+4+P+I

FF4-2400+4+P+I Data

Maximum load capacity 2400 kg
Maximum load capacity according to EN13155 1200 kg
Equipment weight 330 kg
Equipment produced according to EN13155 OK
Nominal electrical power 480 W
Pushbutton cable length 3 m.
Wireless pushbutton OPCIONAL
Electrical power 200 - 500 VAC (50 - 60 Hz) Thriphase/Monopahse
Vacuum system air flow 166 L/min
Equipment support system OK
Equipment support system OK

The HANDLING SERIES family brings together all those vacuum equipment especially designed to work in specific processes on production lines, large glass formats, cargo handling and processes in which the WORK and FACTORY series vacuum equipment are not suitable.
Desde equipos de ventosas fijas verticales, fijas horizontales, para vidrios con tratamientos especiales, pinzas para mover de hojas de vidrio… hasta carros de instalación manuales y automáticos, la gran familia HANDLING no deja ningún tipo de procesado sin atender.

From vertical fixed or horizontal fixed vacuum equipment, for glasses with special protection layer treatments, clamps to move glass sheets ... to manual and automatic installation trolleys, this HANDLING family does not leave any type of processing without being attended.

FF4-2400+4+P+I Drawings

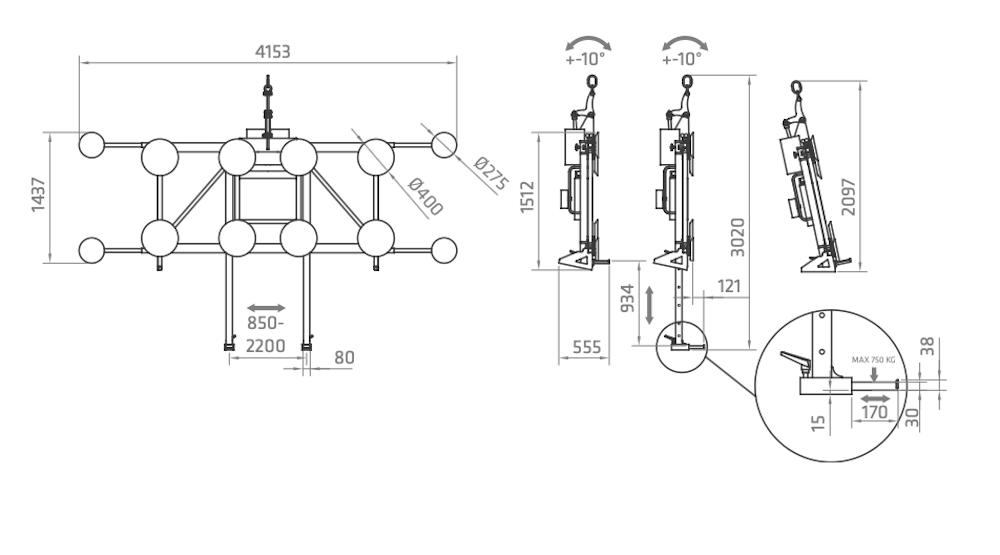

FF4-2400+4+P+I esquema
