Trolley with motorized displacement, specially designed for on-site glass installations, up to 600Kg of glass.

It has the double safety circuit capacity as it is required by the EN-13155 norm in relation to equipment for on-site installation.

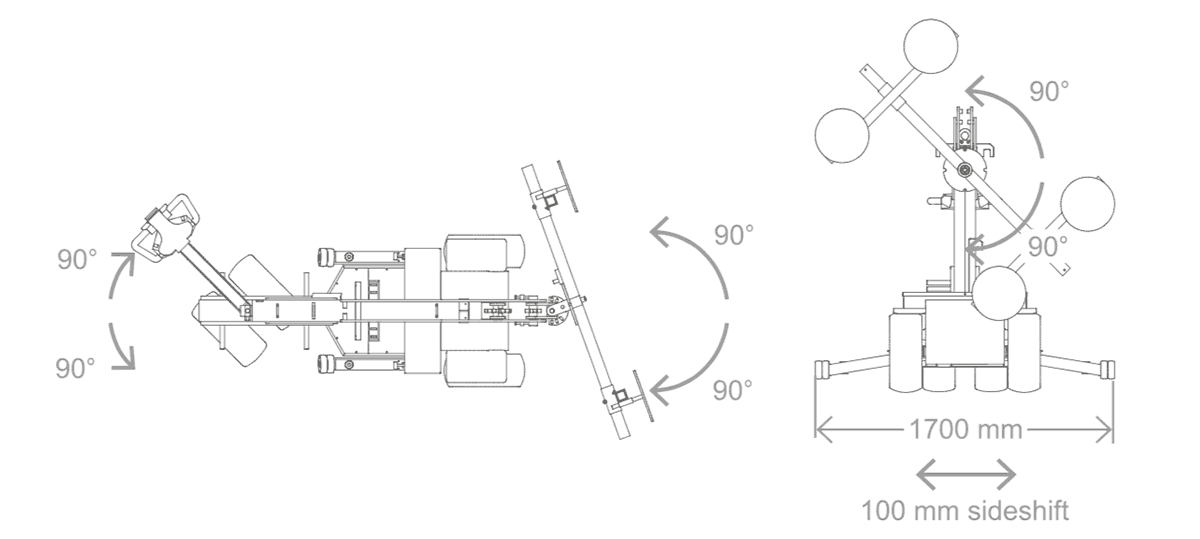

The suction cup grid rotates 360° manually and can be tilted to one side to help to go through  doors and narrow areas.  The rest of the movement, lifting and extension of the arm and tilting of the suction cup grid are electric and they are operated from the control pushbutton.

The distribution of the suction cups is manually adjustable for different glass sizes.

The excellent traction and stability of the off-road wheels allows to move in outdoor terrain with total safety.

Highligted optional elements:

RT device: Motorized rotation device

E device: In addition to the standard telescopic arm, there is the possibility of electrical extension of the second section of the arm.

RAMP: Aluminum ramp approved to help loading and unloading the SL 608 OHL in the van or transport lorry.

OPTIONALS

RT Rotation Head | E 2nd Arm Electric Extension
