CLA | CLAW

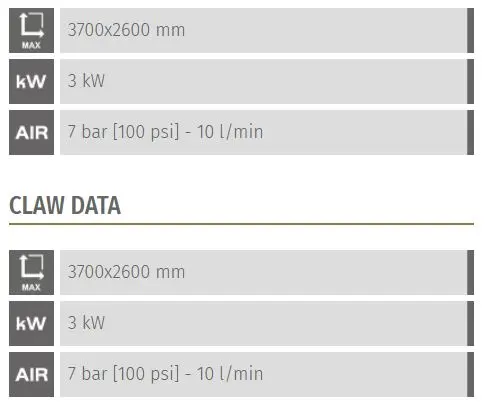

CLA | CLAW CLA DATA
CLA is the motorized semi-automatic system for sorting and storing sheets of glass or other materials up to 3700mm x 2600mm, in units or packages, and which optimizes warehouse space in the factory, improving mobility and production.
It works as a motorized opening filing cabinet by means of a push-button system activated by the operator that guarantees maximum security thanks to its automatic locking system in the event of not being positioned correctly and which prevents possible material and personal damages.

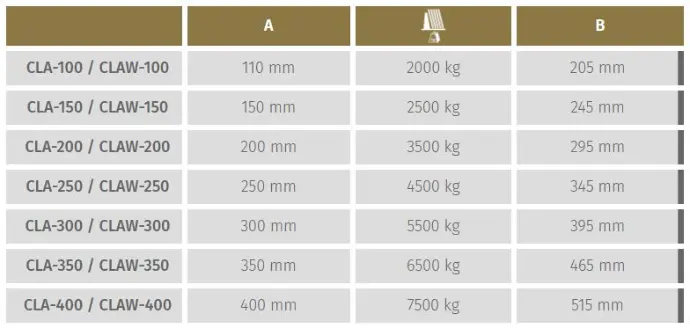

There are many possible combinations depending on the needs in each case, therefore, support base positions can be combined in different measures, from 110mm to 400mm.
As an option, there is the CLAW model, which increases the vertical support surface on the metal frame of the racks.
.


CLAW DRAWINGS

CLA DRAWINGS

L(mm)= ∑B+ 850 (O) + 345
