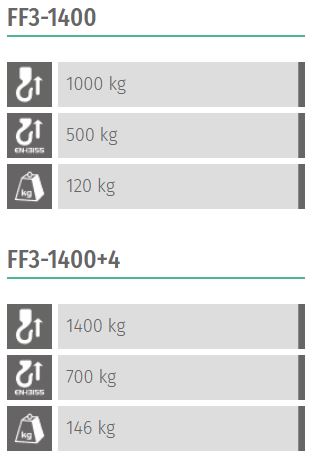

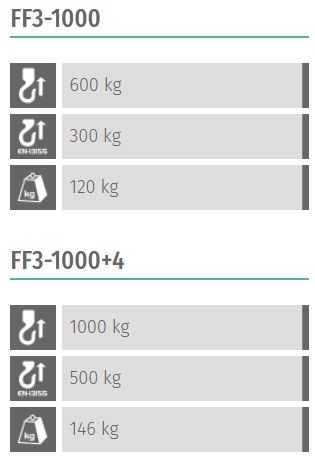

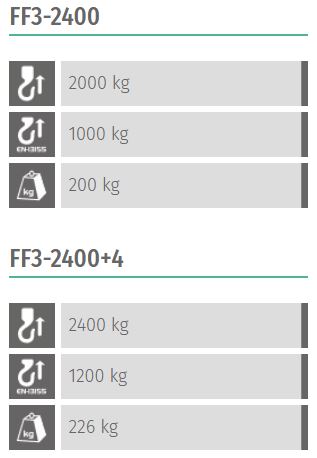

FF3-1000 | FF3-1400 | FF3-2400

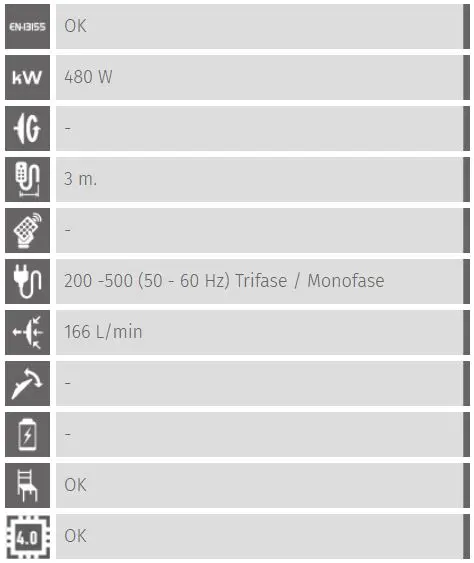

  FF3-1000 | FF-1400 | FF3-2400                                                       COMMON DATA

FF3-1000 I FF3-1400 I FF3-2400 vacuum equipment  is designed to handle sheets with different sizes and weights depending on the model chosen within the serie VF2, in a load capacity range between 600kg and 1600Kg.

The position of the suction plates and the stretched format of the grill allow you to handle long and narrow glasses.

Working position will always be fixed vertically, for processes that do not require rotation or tilting, that is, for loading and unloading glass in the warehouse, IG glass lines, cutting tables that have a tilting system, etc.

At the same time it can also be used for glass installation on site, because the FF3-1000 I FF3-1400 I FF3-2400 models have a multi-voltage electrical connection and a double safety circuit complying with the EN-13155 norm in relation to safety in outside installations.




FF3-2400 DRAWINGS

FF3-1400+4 DRAWINGS

FF3-2400+4 DRAWINGS

FF3-1000 DRAWINGS

FF3-1000+4 DRAWINGS

FF3-1400 DRAWINGS


OPTIONAL

  • PRO-MESH
