VLM-G1 | VLM-G1+2

VLM-G1 Data

Maximum load capacity 250 kg
Equipment weight 59 kg

VLM-G1+2 Data

Maximum load capacity 400 kg
Equipment weight 76 kg

Common Data

Pneumatic rotating equipment 0° - 360° - ENDLESS
Vacuum system air flow 40 L/min
Equipment support system OK
Nominal electrical power 480 W
Electrical power 200 - 500 VAC (50 - 60 Hz)
Energy autonomy by batteries -

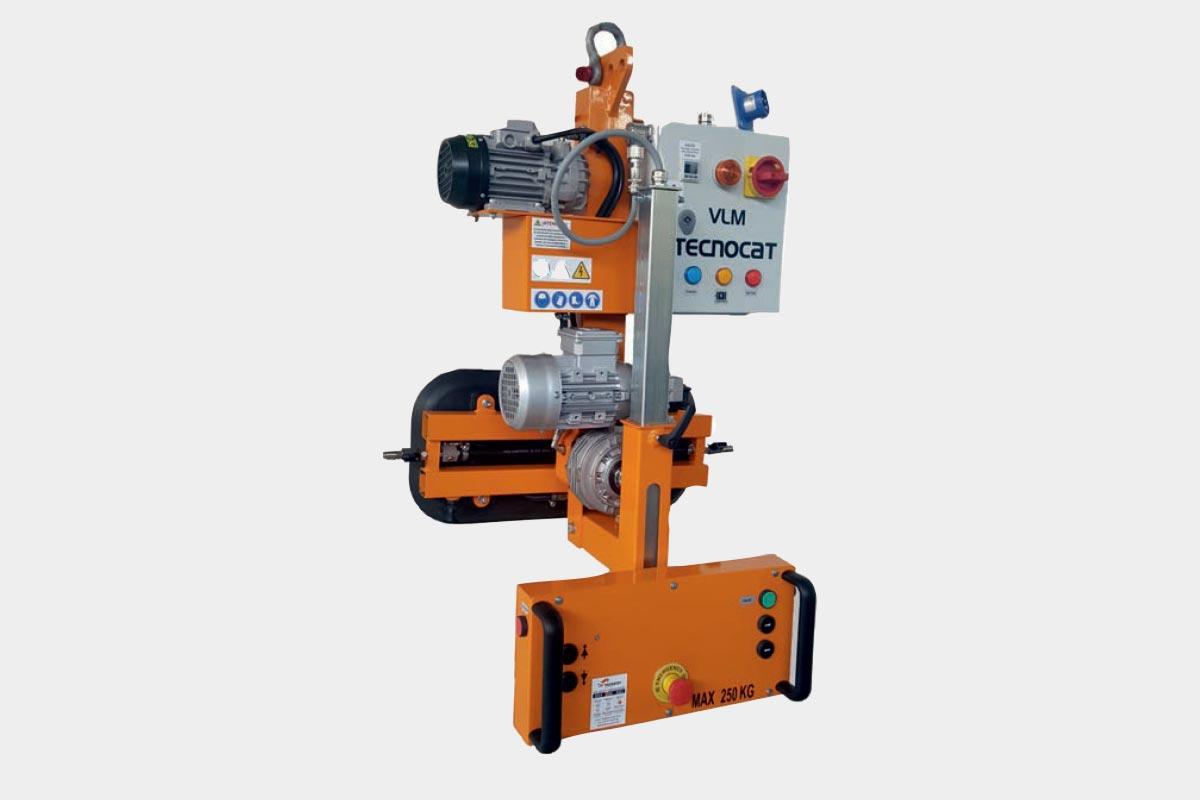

Light equipment with electric rotation 360° endless specially suitable for vertical glass handling processes such as edger machines, vertical CNC, vertical washing machines, handling and assembly of doors and windows ...

It works only with electric supply and the rotation is soft and precise to speed up the operator's work and increase efficiency.

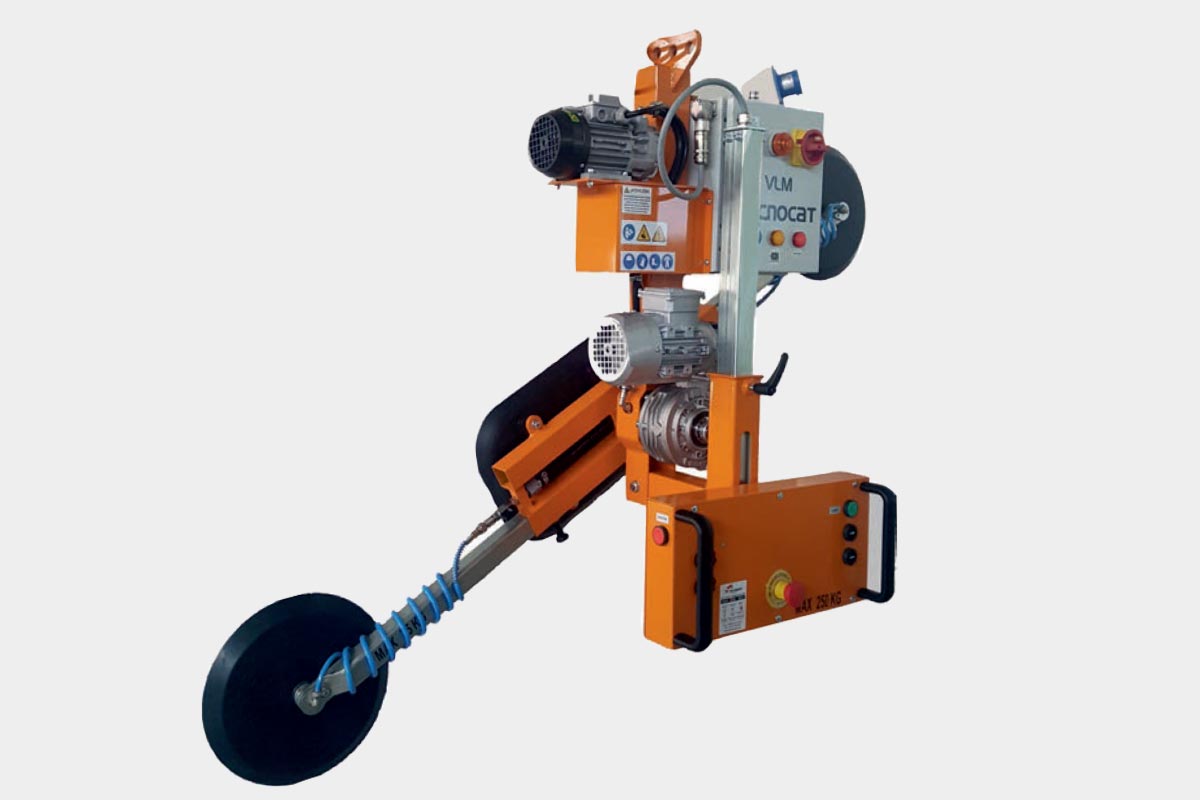

The rectangular central plate provides great suction which allows loading up to 250Kg. Adding the extensions (model VLM-G1+2) allows increasing the grip surface for larger sheets and load capacity up to 400Kg.

This equipment combines perfectly with TECNOCAT ELEVATION SYSTEMS.

It is a multi-tension equipment and it has a vertically extendable control keypad to hold large format sheets and incorporates air pressure and vacuum indicators, in addition to a vacuum security alarm.

VLM-G1 Drawings

VLM-G1+2 Drawings
