VR1-G4 | VR1-G4+4

VR1-G4 Data

Maximum load capacity 960 kg
Maximum load capacity according to EN13155 480 kg
Equipment weight 104 kg

VR1-G4+4 Data

Maximum load capacity 1360 kg
Maximum load capacity according to EN13155 680 kg
Equipment weight 128 kg

Common Data

Equipment produced according to EN13155 OK
Nominal electrical power 850 W
Motorised rotating equipment 0° - 360° - ENDLESS
Pushbutton cable length -
Wireless pushbutton -
Electrical power 200 - 500 VAC (50 - 60 Hz)
Vacuum system air flow 83 L/min
Manually tilting equipment -
Energy autonomy by batteries -
Equipment support system OK

Light equipment with electric rotation 360° endless specially suitable for vertical glass handling processes such as edger machines, vertical CNC, vertical washing machines, handling and assembly of doors and windows ...

It works only with electric supply and the rotation is soft and precise to speed up the operator's work and increase efficiency.

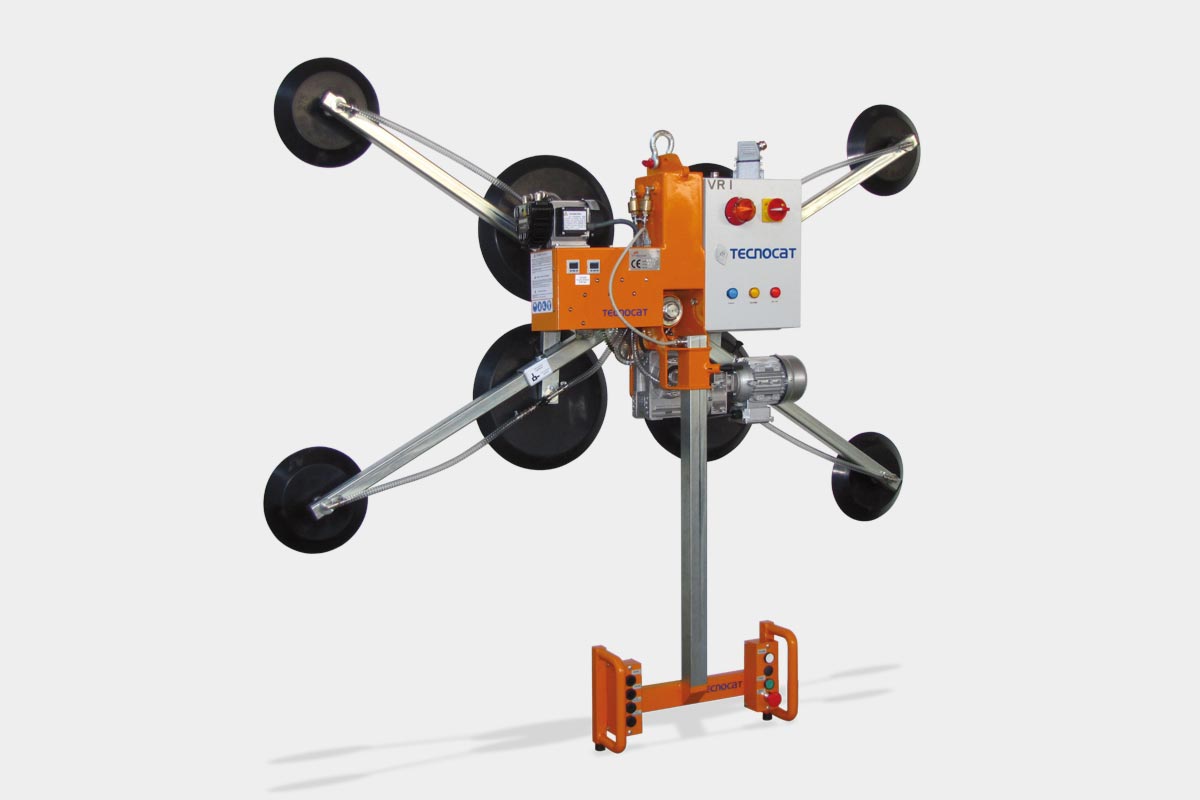

The rectangular central plate provides great suction which allows loading up to 960Kg. Adding the extensions (model VR1-G4+4) allows increasing the grip surface for larger sheets and load capacity up to 1360kg.

This equipment combines perfectly with TECNOCAT ELEVATION SYSTEMS.

It is a multi-tension equipment and it has a vertically extendable control keypad to hold large format sheets and incorporates air pressure and vacuum indicators, in addition to a vacuum security alarm.

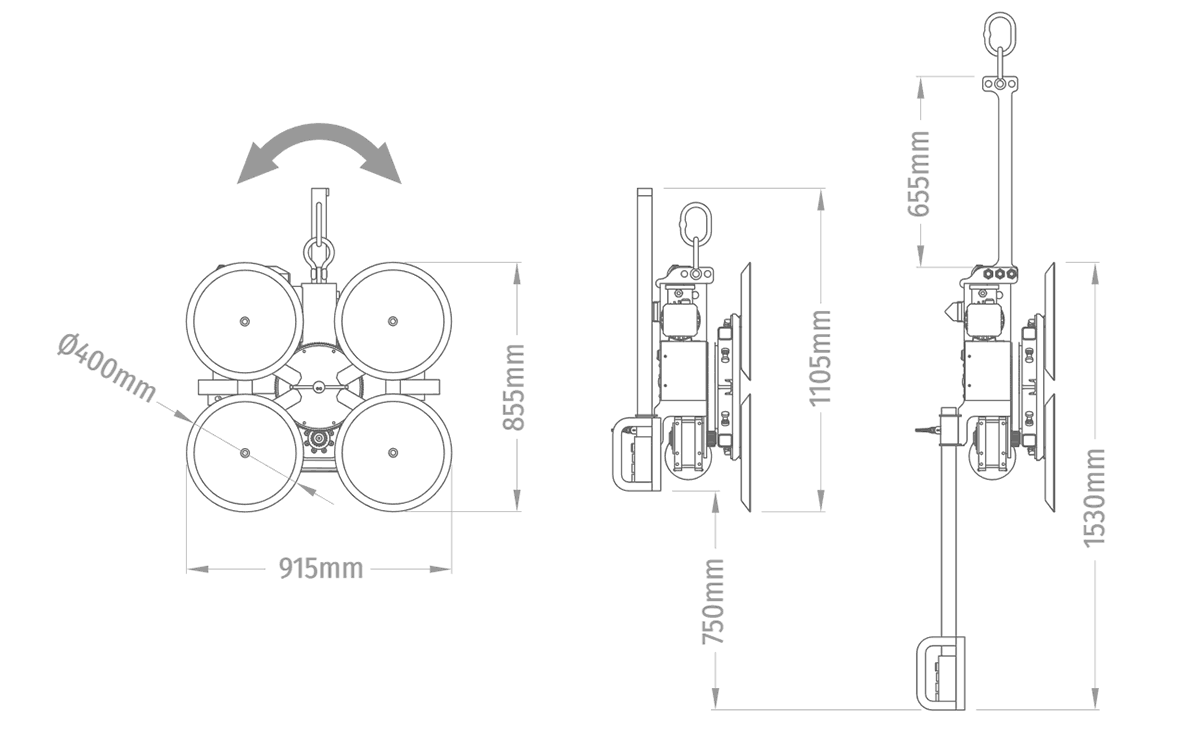

VR1-G4 Drawings

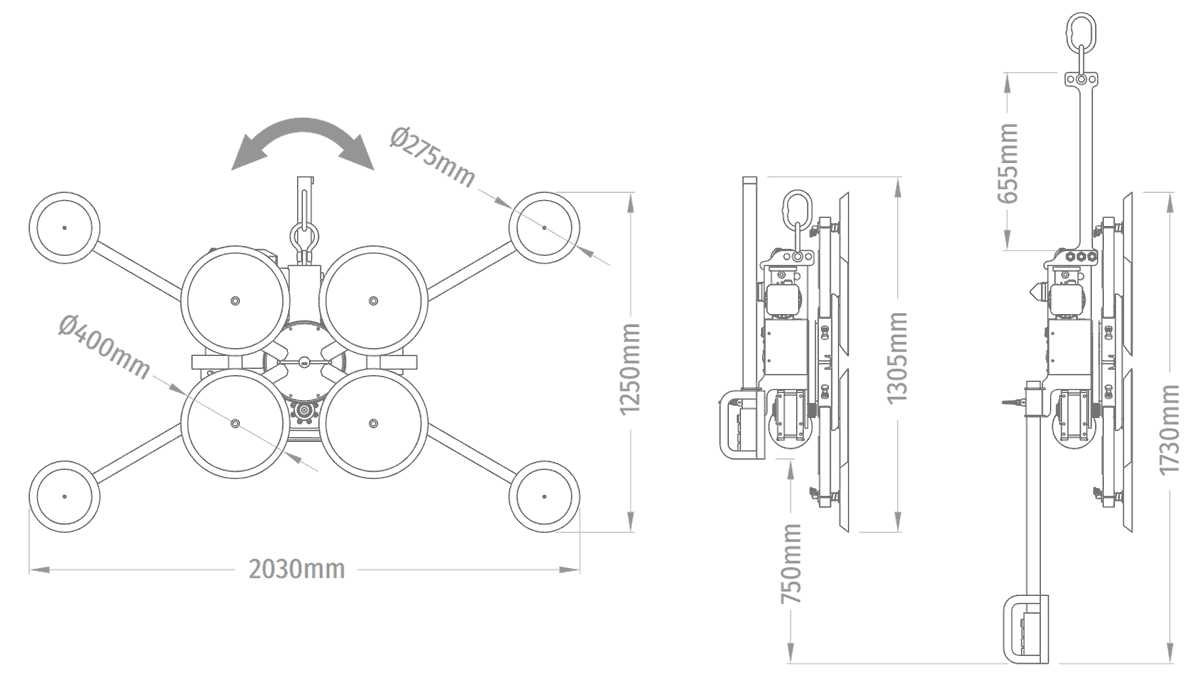

VR1-G4+4 Drawings
