VLM2-GB1 | VLM2-GB1+2 | VLM2-GB1+4

VLM2-GB1 Data

Maximum load capacity 250 kg
Equipment weight 70 kg

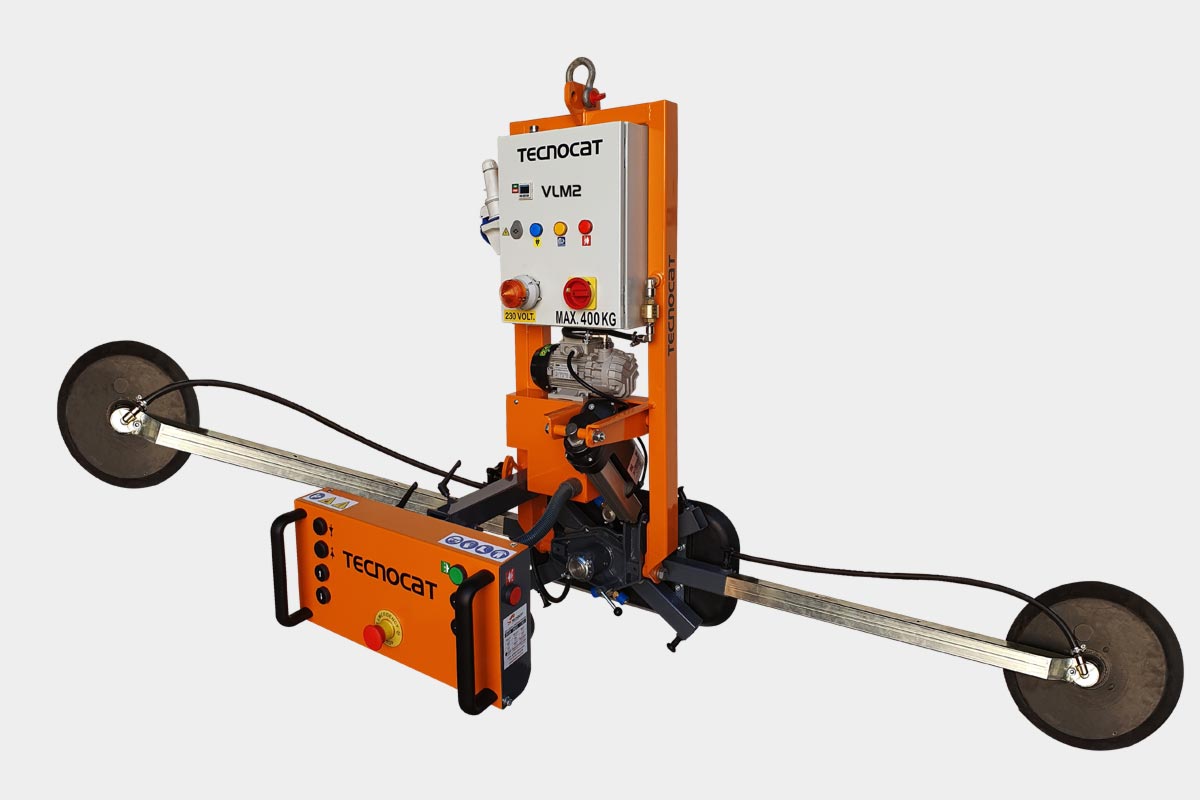

VLM2-GB1+2 Data

Maximum load capacity 400 kg
Equipment weight 80 kg

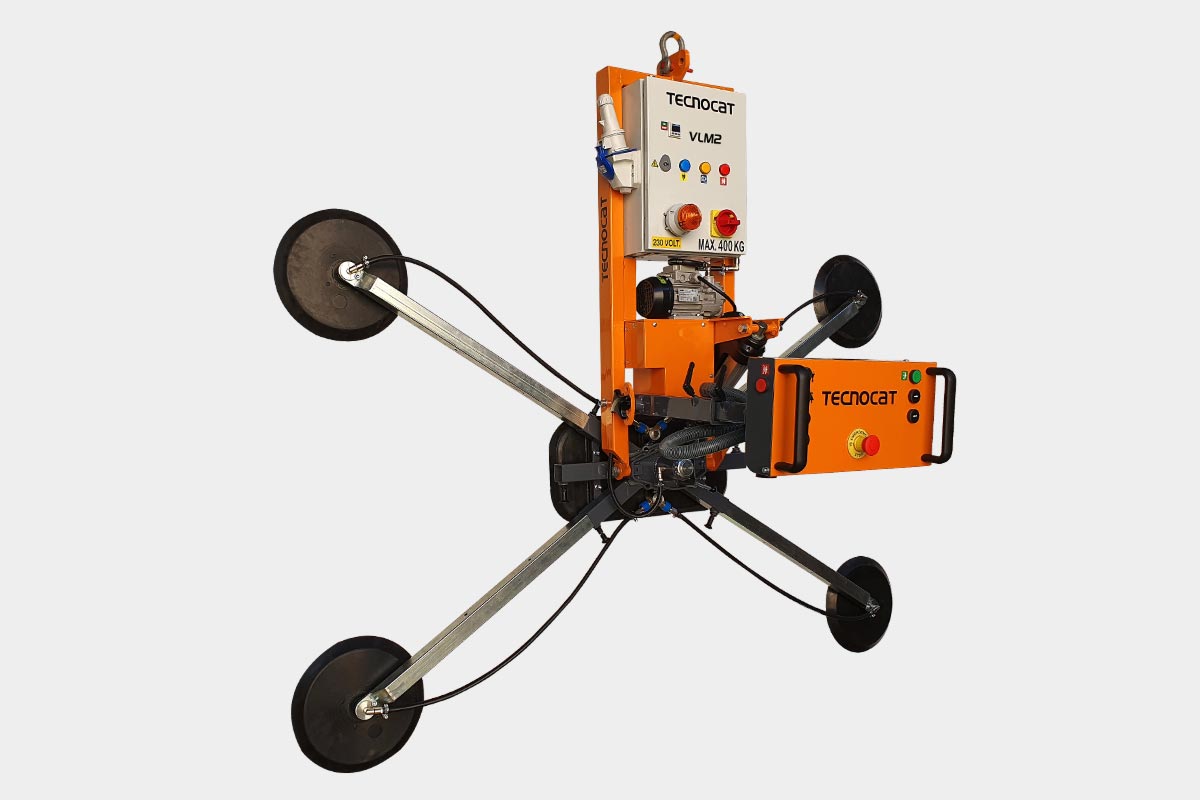

VLM2-GB1+4 Data

Maximum load capacity 400 kg
Equipment weight 90 kg

Common Data

Manually rotating equipment 90° - 180° - 270° - 360°
Motorised tilting equipment 0° - 90°
Vacuum system air flow 40 L/min
Equipment support system OK
Nominal electrical power 480 W
Electrical power 200 - 500 VAC (50 - 60 Hz)
Energy autonomy by batteries -

Light equipment with 360° manual rotation and 0° - 90° electric tilting, especially suitable for vertical and horizontal glass handling processes such as edger machines,  vertical and horizontal CNCs, vertical and horizontal washing machines, tempering furnaces, handling and assembly of doors and windows, cutting tables ...

It works only with electricity and the tilting is smooth, precise to speed up the operator's work and increase efficiency.

The rectangular central plate provides great suction which allows loading up to 250Kg. Adding the extensions (models VLM2-G1+2 and VLM2-G1+4) allows increasing the grip surface for larger sheets and load capacity up to 400Kg.

This equipment combines perfectly with TECNOCAT ELEVATION SYSTEMS.

It is a multi-tension equipment and it has an horizontal  extendable control keypad to hold large format sheets and incorporates air pressure and vacuum indicators, in addition to a vacuum security alarm.

VLM2-GB1 Drawings

VLM2-GB1+2 Drawings

VLM2-GB1+4 Drawings
