VLM3-GB1 | VLM3-GB1+2 | VLM3-GB1+4

VLM3-GB1 Data

Maximum load capacity 250 kg
Equipment weight 78 kg

VLM3-GB1+2 Data

Maximum load capacity 400 kg
Equipment weight 88 kg

VLM3-GB1+4 Data

Maximum load capacity 400 kg
Equipment weight 98 kg

Common Data

Motorised rotating equipment 0° - 360° - ENDLESS
Motorised tilting equipment 0° - 90°
Vacuum system air flow 40 L/min
Equipment support system OK
Nominal electrical power 480 W
Electrical power 200 - 500 VAC (50 - 60 Hz)
Energy autonomy by batteries -

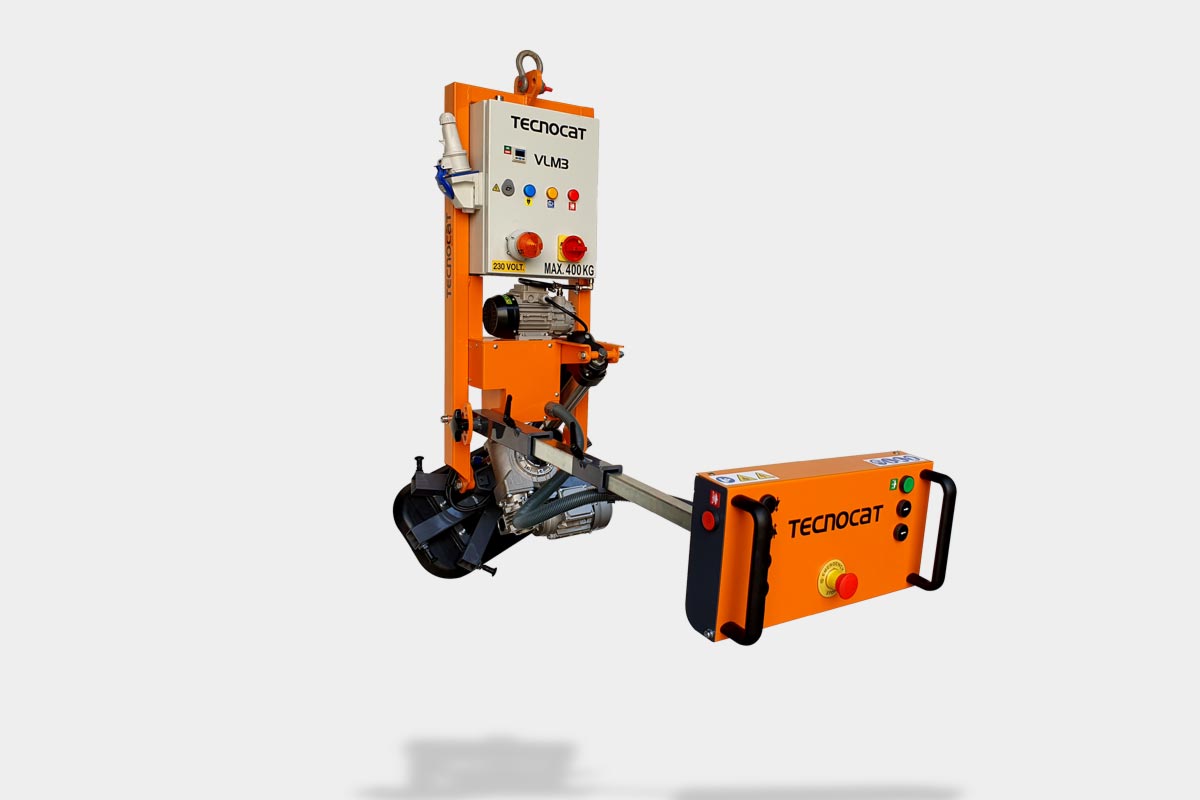

Light equipment with 360° electric rotation and 0° - 90° electric tilting, especially suitable for vertical and horizontal glass handling processes such as edger machines,  vertical and horizontal CNCs, vertical and horizontal washing machines, tempering furnaces, handling and assembly of doors and windows, cutting tables ...

It works only with electricity and rotation and tilting movements are smooth, precise to speed up the operator's work and increase efficiency.

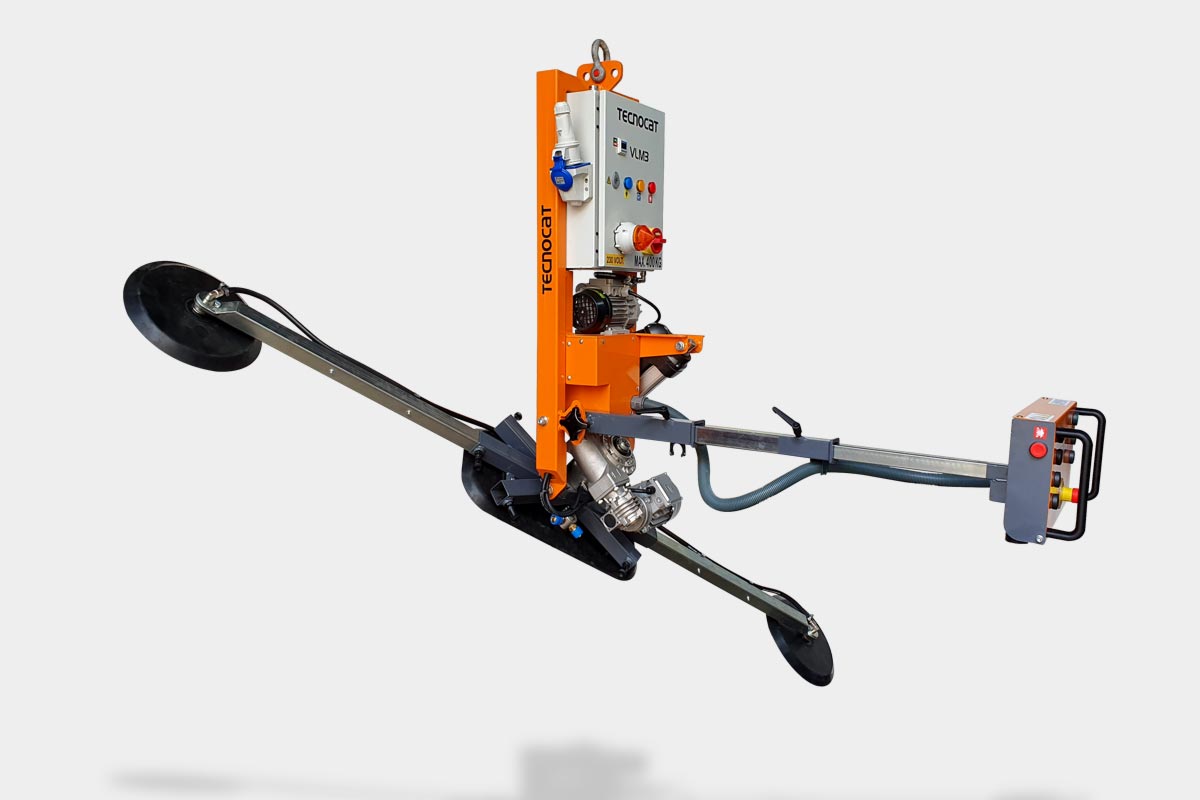

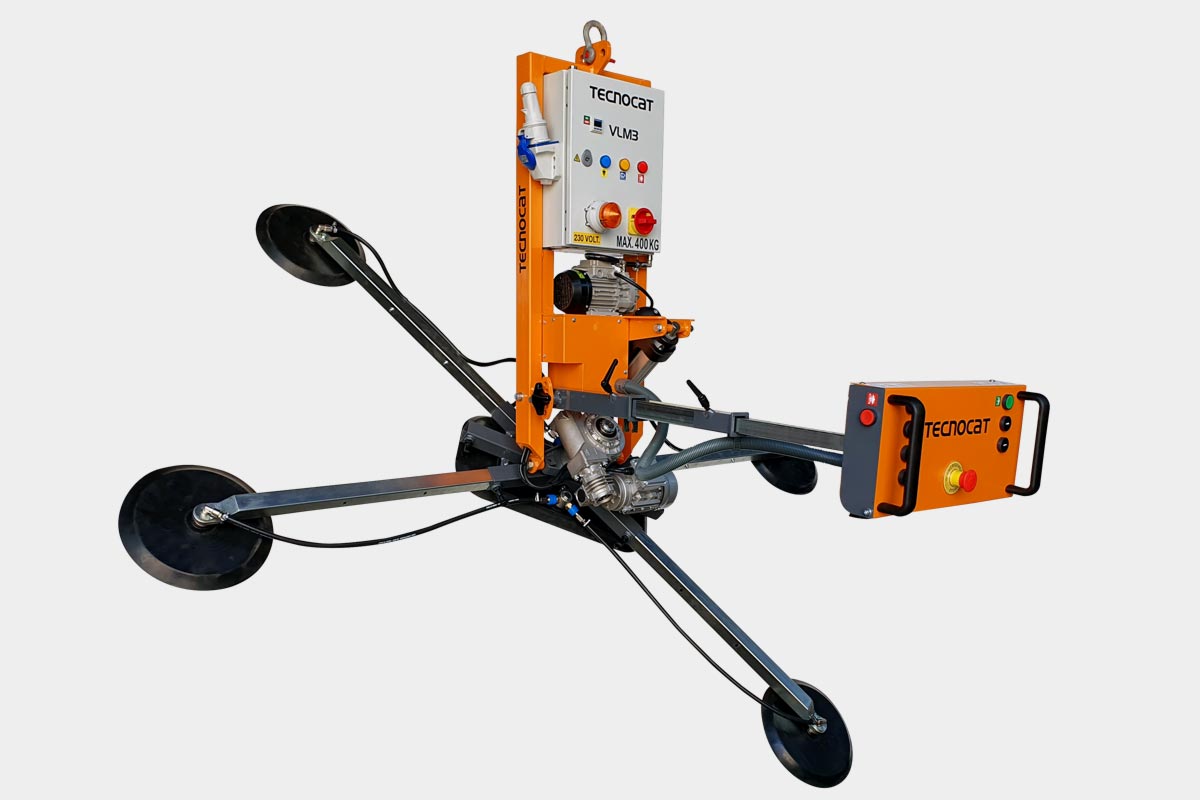

The rectangular central plate provides great suction which allows loading up to 250Kg. Adding the extensions (models VLM3-G1+2 and VLM3-G1+4) allows increasing the grip surface for larger sheets and load capacity up to 400Kg.

This equipment combines perfectly with TECNOCAT LIFTING SYSTEMS.

It is a multi-tension equipment and it has an horizontal extendable control keypad to hold large format sheets and incorporates air pressure and vacuum indicators, in addition to a vacuum security alarm.

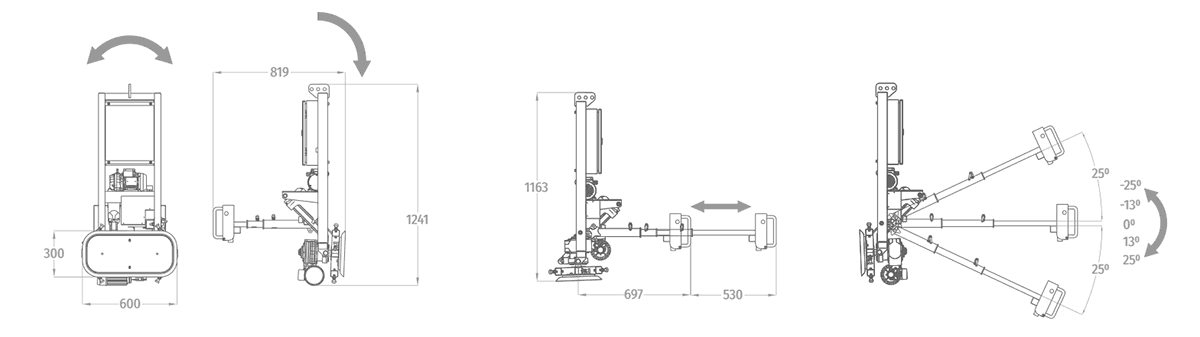

VLM3-GB1 Drawings

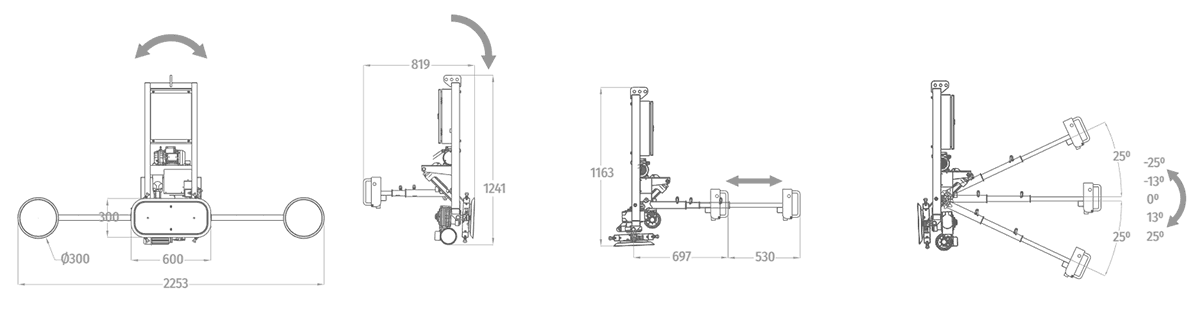

VLM3-GB1+2 Drawings

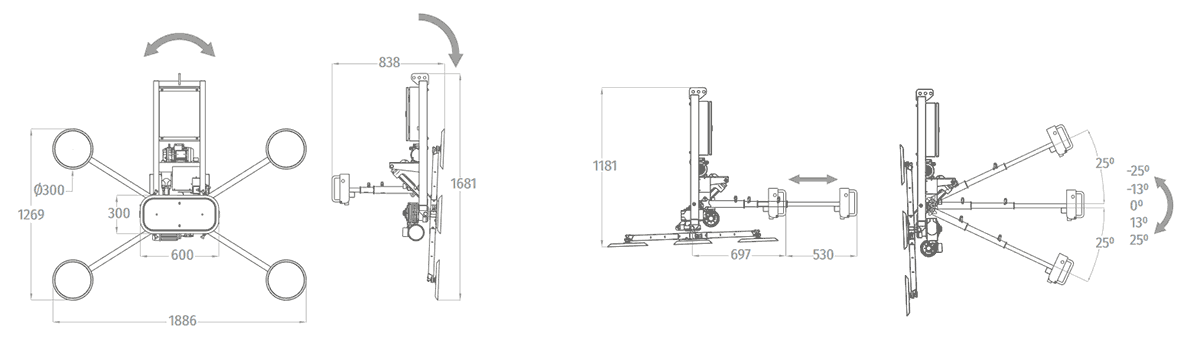

VLM3-GB1+4 Drawings
