VN1T-GX1 | VN1T-G1X+2 x 4AL-VN1X

Common Data

Pneumatic supply 7 bar - 100 l/min
Pneumatic rotating equipment 0° - 90°
Vacuum system air flow 40 L/min


Maximum load capacity 250 kg
Equipment weight 50 kg

VN1T-G1X+2 x 4AL-VN1X Data

Maximum load capacity 400 kg
Equipment weight 62 kg

VN1T-G1X+4 x 4AL-VN1X Data

Maximum load capacity 400 kg
Equipment weight 74 kg

Light equipment with pneumatic rotation 0° - 90° specially suitable for vertical glass handling processes such as edger machines, vertical CNC, vertical washing machines, handling and assembly of doors and windows ...

It works only with compressed air and manual rotation 90° is fast and precise to speed up the operator's work and increase efficiency.

The rectangular central plate provides great suction which allows loading up to 250Kg. Adding the extensions allows increasing the grip surface for larger sheets and load capacity up to 400Kg.

This equipment combines perfectly with TECNOCAT ELEVATION SYSTEMS.

It has a vertically extendable control keypad to hold large format sheets and incorporates air pressure and vacuum indicators, in addition to a vacuum security alarm.

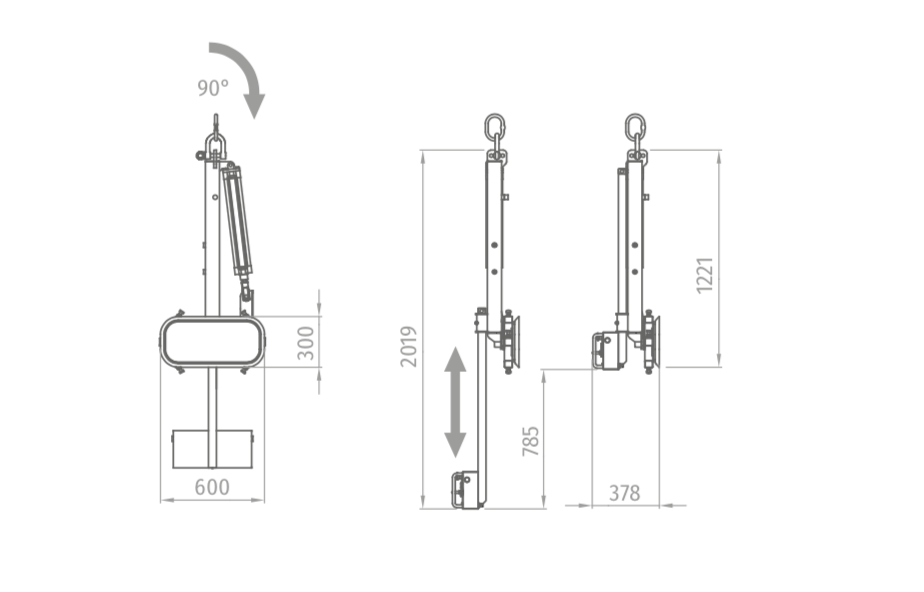

VN1T-G1X Drawings

VN1T-G1X esquema

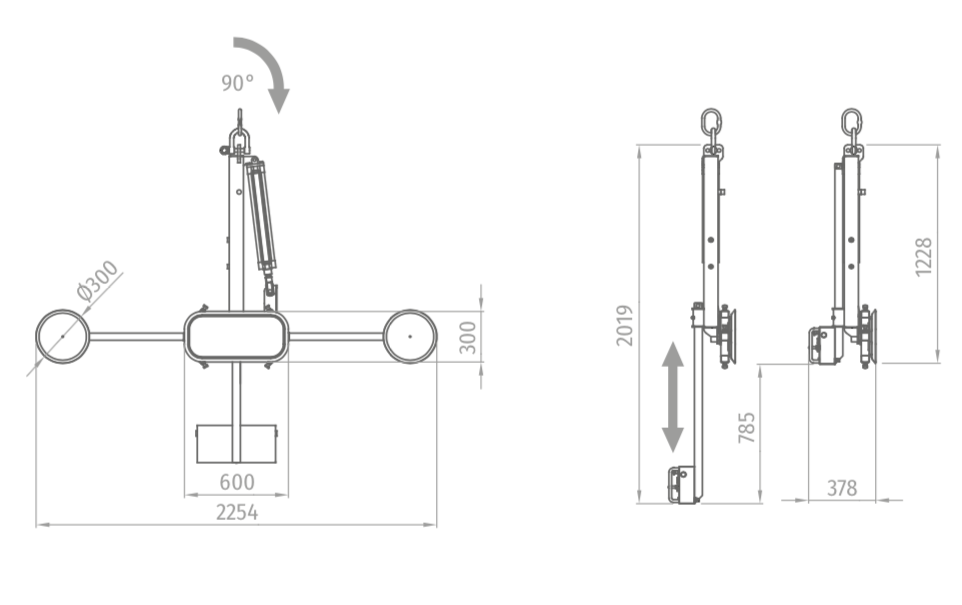

VN1T-G1X+2 x 4AL-VN1X Drawings


VN1T-G1X+2 x 4AL-VN1X Drawings

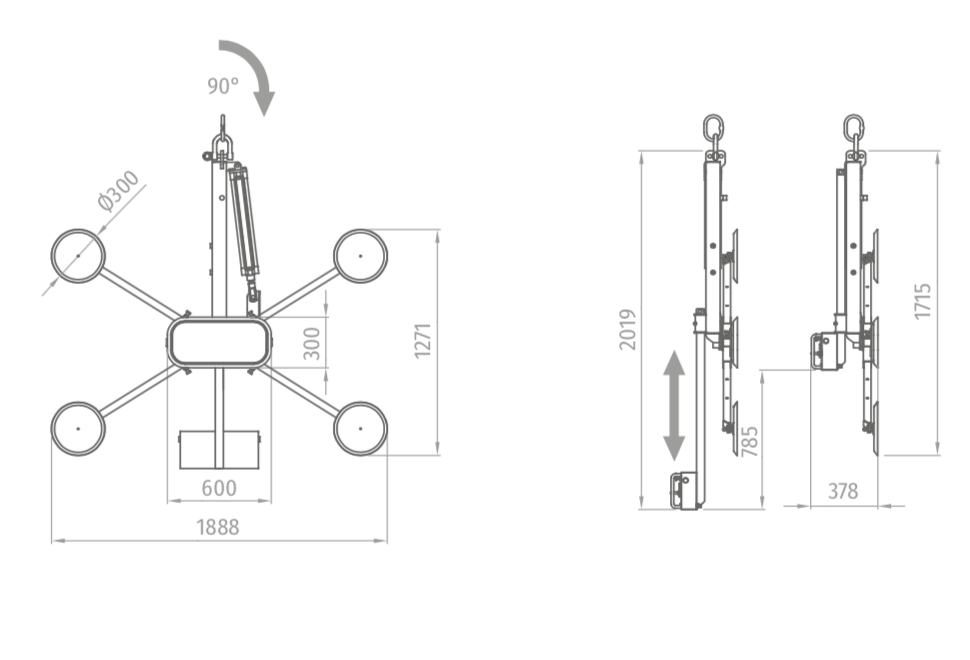

VN1T-G1X+4 x 4AL-VN1X
