VNL-GB2 | VNL-GB2+2 COMPATIBLE WITH: CML-B4

* HOIST NOT REQUIRED
* ELEVATION BY MEANS OF PNEUMATIC PISTON

VNL-GB2 Data

Maximum load capacity 200 kg
Equipment weight 52 kg

VNL-GB2+2 Data

Maximum load capacity 200 kg
Equipment weight 60 kg

VNL-GB2 Common Data

Pneumatic supply 7 bar 200 l/min
Pneumatic rotating equipment 0° - 90°
Vacuum system air flow 40 L/min
Pneumatic tilting equipment 0° - 90°

Light and compact equipment, indicated for vertical and horizontal glass handling processes,  such as edger machines, vertical or horizontal CNC machines, laminate glass machines, tempering furnaces, horizontal assembly of doors and windows, cutting tables ...

It works only with compressed air and the pneumatic rotation and tilting are fast and precise to speed up the operator's work and increase efficiency.

It has horizontal extendable control panel and it doesn’t require hoist due to it has its own elevation piston.

Perfect equipment to work with CML-B4 TECNOCAT lifting system.

It incorporates air pressure and vacuum indicators, and security alarm as well.

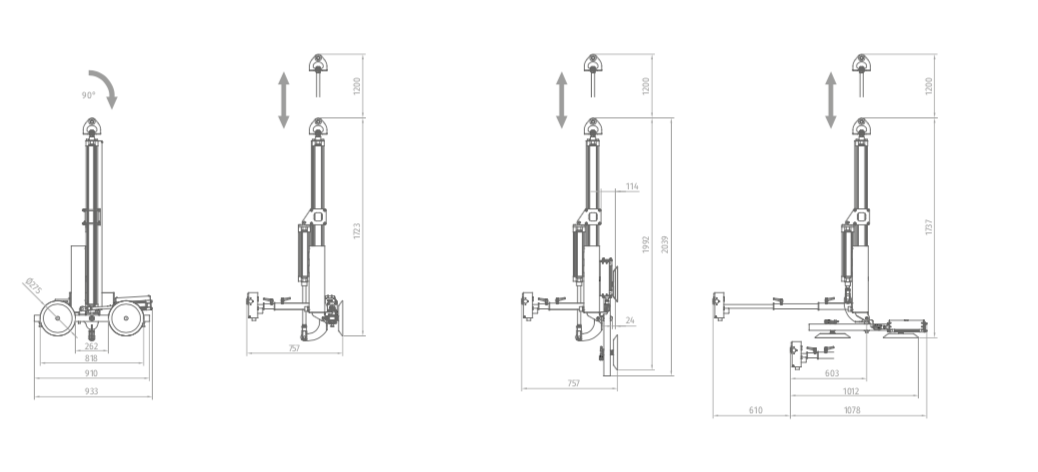

VNL-GB2 Drawings

VNL-GB2 esquemas

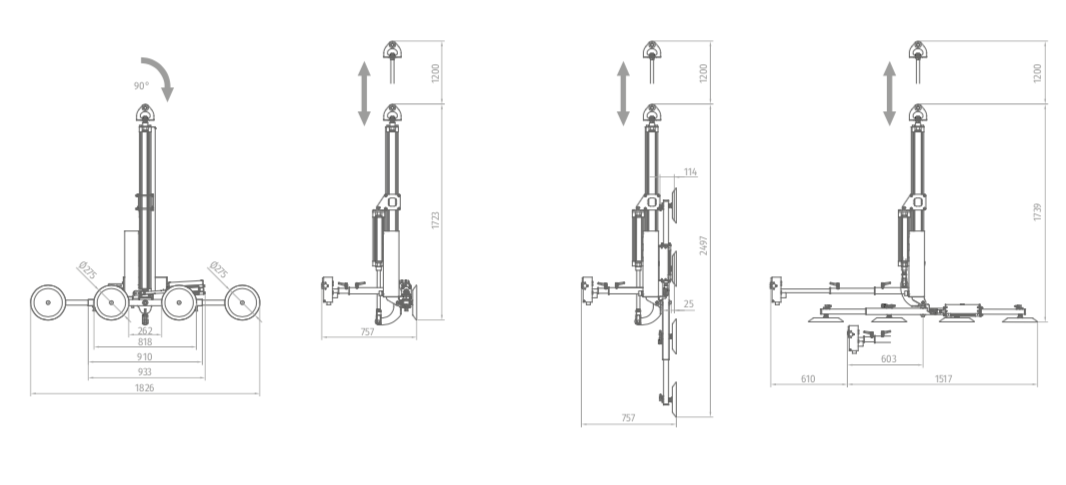

VNL-GB2+2 Drawings

VNL GB2+2 esquemas
