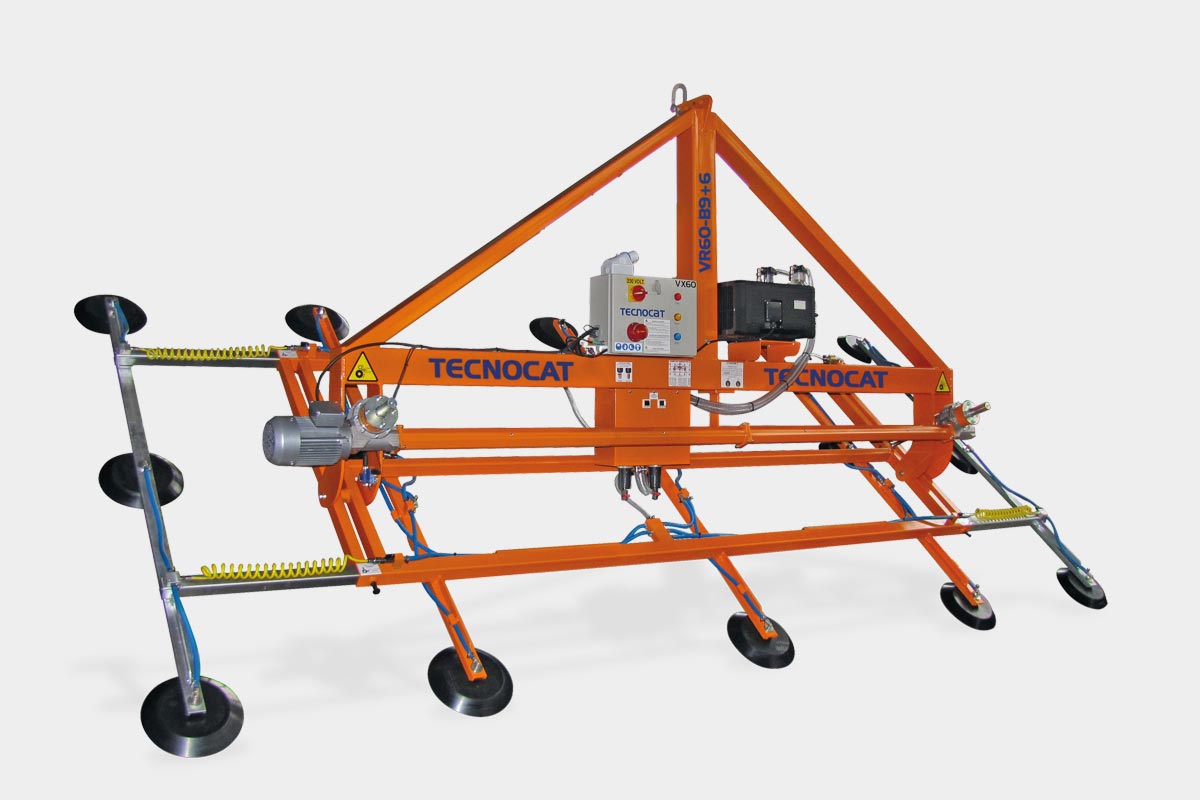

VR60-B9+6

VR60-B9 | VR60-B9+6 Data

Maximum load capacity 1500 kg
Maximum load capacity according to EN13155 700 kg
Equipment weight 472 kg
Equipment produced according to EN13155 OK
Nominal electrical power 950 W
Pushbutton cable length 3 m.
Equipment support system OK
Electrical power 230 VAC (50 - 60 Hz) Monophase
OPTIONAL: 230 VAC (50 - 60 Hz) Triphase
OPTIONAL: 400 VAC (50 - 60 Hz) Triphase
Vacuum system air flow 80 L/min
Energy autonomy by batteries -

Suction cup equipment specially designed for handling glass sheets split jumbo 3210 x 2600mm or jumbo sizes up to 6000mm x 3210mm,  inside the factory or it can be used in outdoor work installations, due to it has a double safety circuit complying with the EN-13155 norm for safety purposes.

Tilting capacity 0° - 90° is ideal for processes that need to transport sheets vertically and require to move them to an horizontal position, such as cutting tables, glass laminated processes, tempering furnaces, processes for assembling aluminum frames, etc.

It has a central frame with suction cups in which side extensions can be attached, in order to maximize the grip and suction surface in different sizes of glass.

Equipment with electrical connection in two options, for working as a complement to the overhead crane.

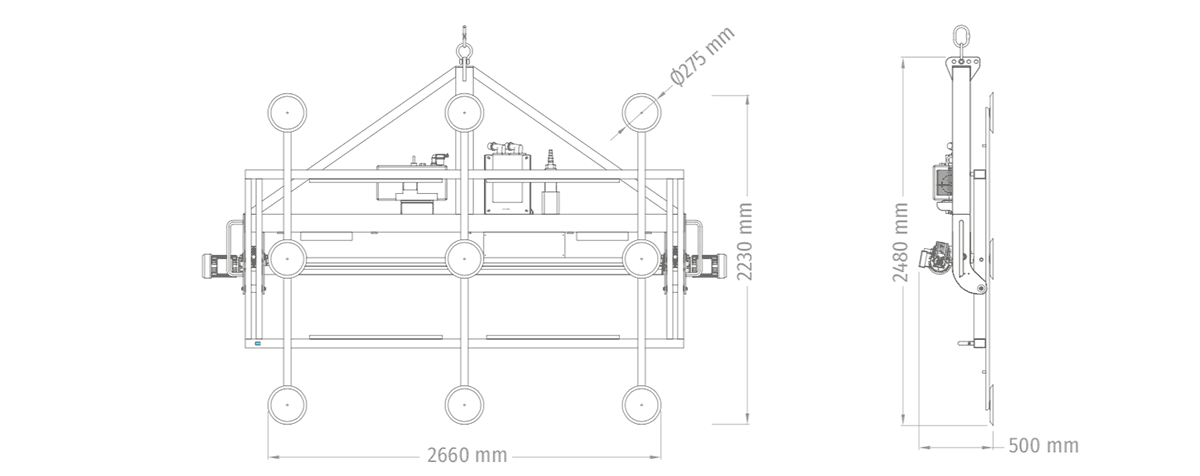

VR60-B9 Drawings

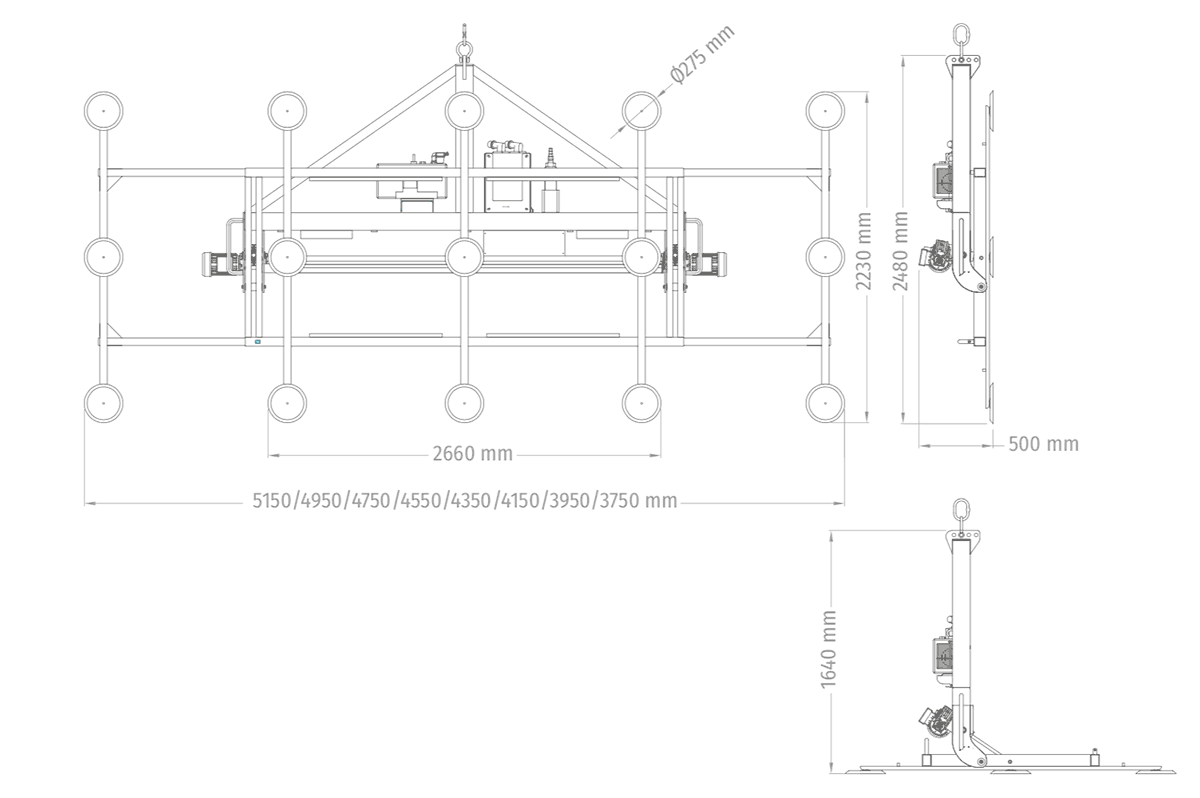

VR60-B9+6 Drawings
