VX-PF8 Data

Equipment produced according to EN13155 OK
Nominal electrical power 950 W
Pushbutton cable length 3 m.
Equipment support system OK
Electrical power 230 VAC (50 - 60 Hz) Monophase
OPTIONAL: 230 VAC (50 - 60 Hz) Triphase
OPTIONAL: 400 VAC (50 - 60 Hz) Triphase
Vacuum system air flow 80 L/min
Energy autonomy by batteries -


Maximum load capacity 180 kg


Maximum load capacity 400 kg


Maximum load capacity 800 kg


Maximum load capacity 240 kg


Maximum load capacity 500 kg


Maximum load capacity 1000 kg


Maximum load capacity 300 kg


Maximum load capacity 600 kg

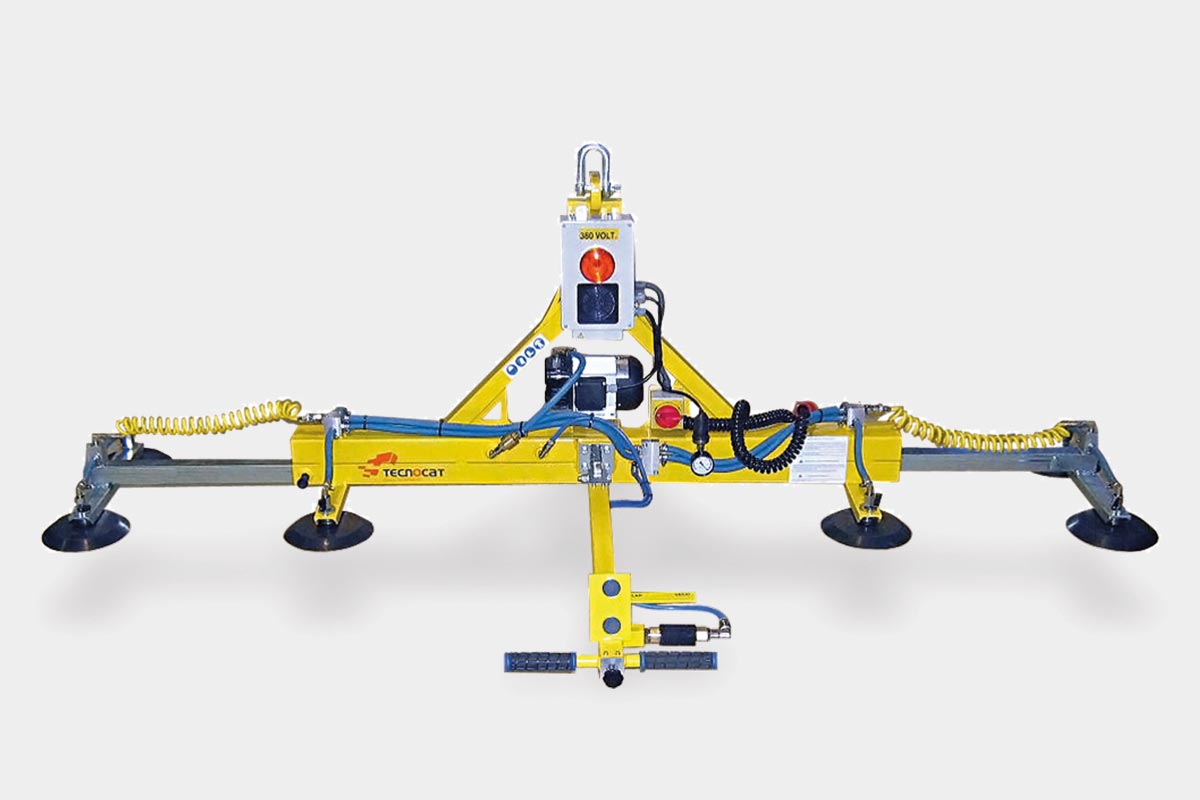

VX-PF suction pad equipment is specially designed for handling glass sheets inside the factory, always in a horizontal position. In addition they are also prepared to work with other smooth and flat materials, such as metal plates, composite plates, synthetics, wood, etc.

This equipment is very light and has different possible configurations for the distribution of suction cups to be able to handle different sheet sizes and depending on the required load capacity.

The operator handle the vacuum equipment from a separate position and thanks to a manual device located on the equipment handlebar, the operator can tilt this handle depending on the working height. The suction mechanism works by means of a manual valve located on the handlebar, with a safety locking device.

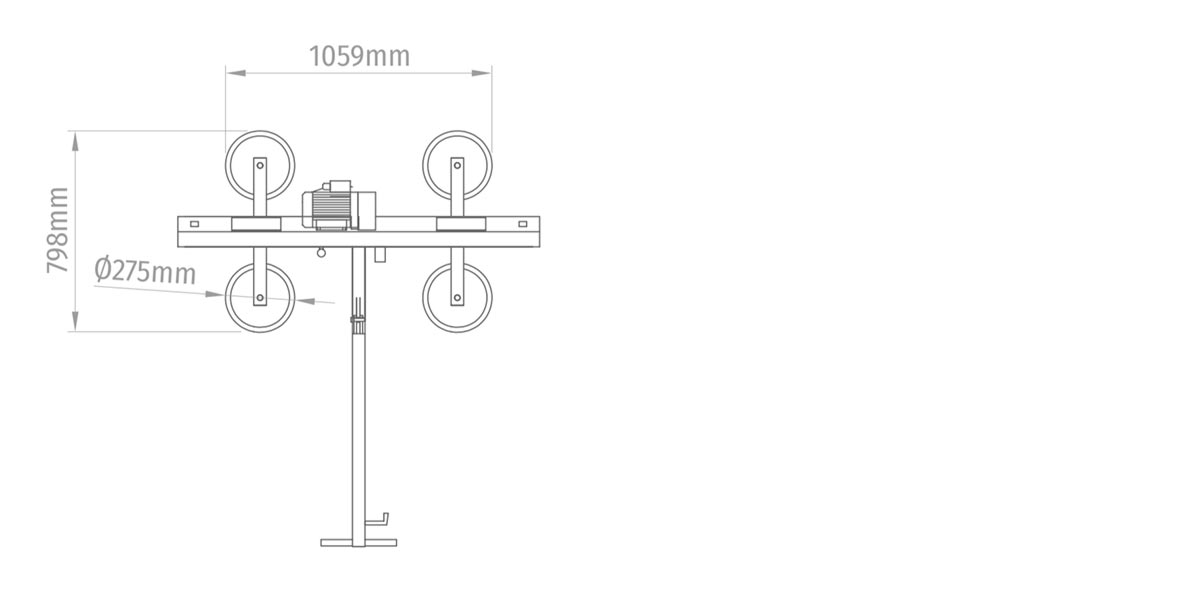

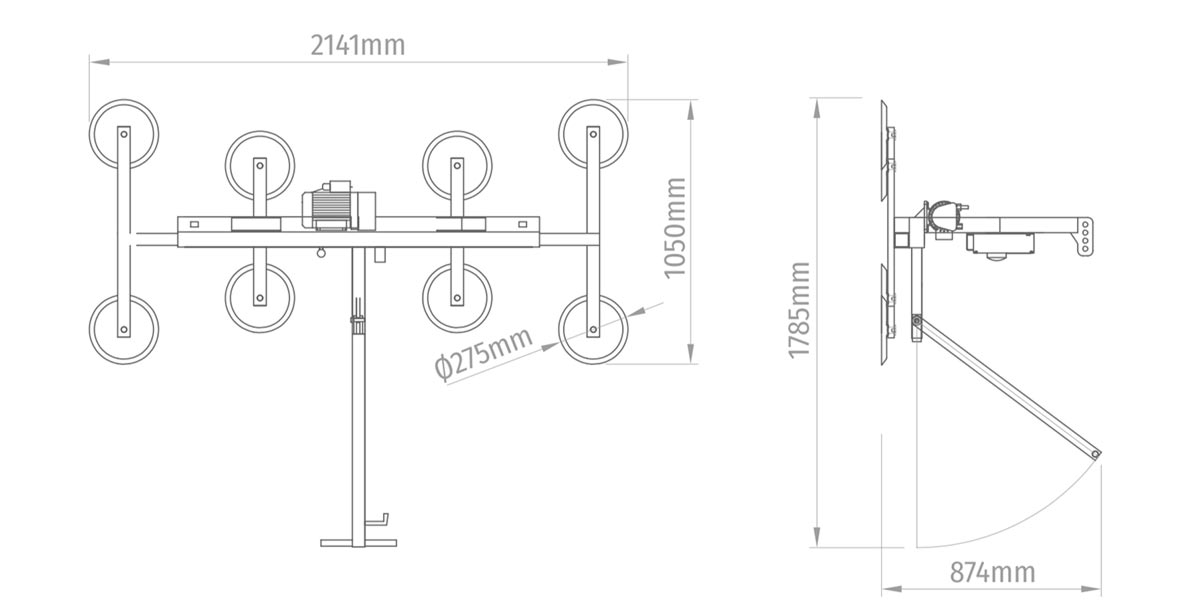

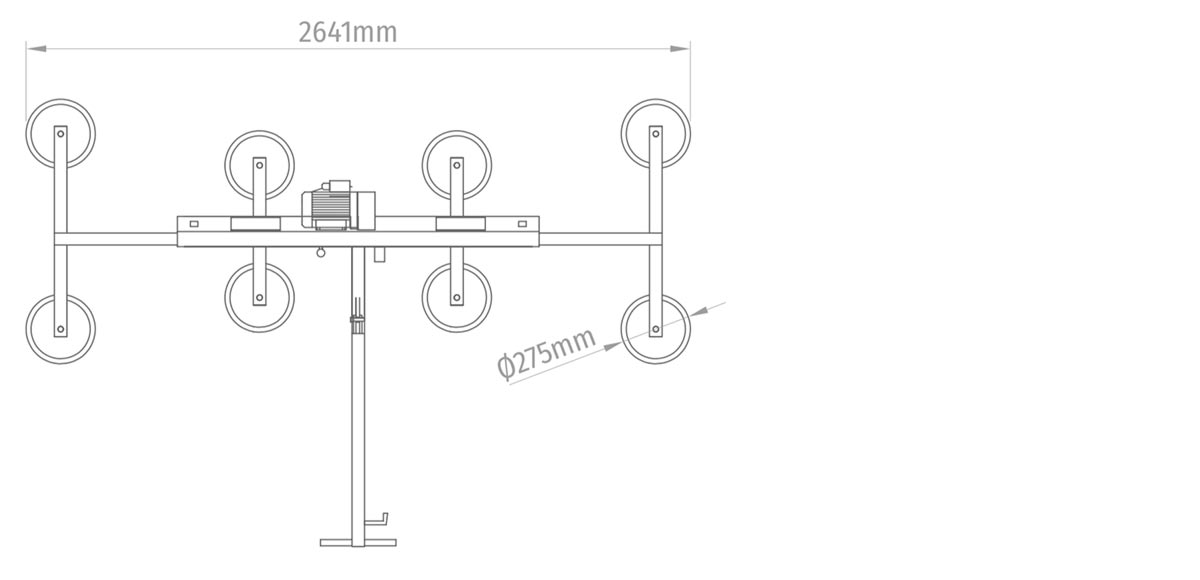

VX-PF8-800 Example Drawings
