SL 608 Outdoor High Lifter
SL 608 OHL RT E Optionals
SL 608 OHL Data
| DESCRIPTION | VALUE |
|---|---|
| Lifting capacity arm in/extended (1600 mm) |
608 kg / 150 kg |
| Weight | 930 kg |
| Height | 1530 mm |
| Width (min) | 840 mm |
| Length (min) | 22850 mm |
| Extension of arm | 700 + 900 mm |
| Tip from horizontal | 40 ̊ back / 100 ̊ forward |
| Speed regulation | Stepless high/low |
| Sideshift | 100 mm |
| Vacuum system | 2 circuits |
| Lifting height mounting | 4080 mm |
| Charging voltage | 230 volt |
| Integrated charger | Ctek XT 14000 |
| Charging time | Approx 8 hours |
| Battery(2 x 12v) 24 volt | 2 x 105 A |
| Running period | Approx 20 hours |
| Front-wheel drive | 1200 Watt - AC |
| Brake | Elektronic |
| Suction pads | 4 unit Ø 400 mm |
Trolley with motorized displacement, specially designed for on-site glass installations, up to 600Kg of glass.
It has the double safety circuit capacity as it is required by the EN-13155 norm in relation to equipment for on-site installation.
The suction cup grid rotates 360° manually and can be tilted to one side to help to go through doors and narrow areas. The rest of the movement, lifting and extension of the arm and tilting of the suction cup grid are electric and they are operated from the control pushbutton.
The distribution of the suction cups is manually adjustable for different glass sizes.
The excellent traction and stability of the off-road wheels allows to move in outdoor terrain with total safety.
Highligted optional elements.
RT device: Motorized rotation device
E device: In addition to the standard telescopic arm, there is the possibility of electrical extension of the second section of the arm.
RAMP: Aluminum ramp approved to help loading and unloading the SL 608 OHL in the van or transport lorry.

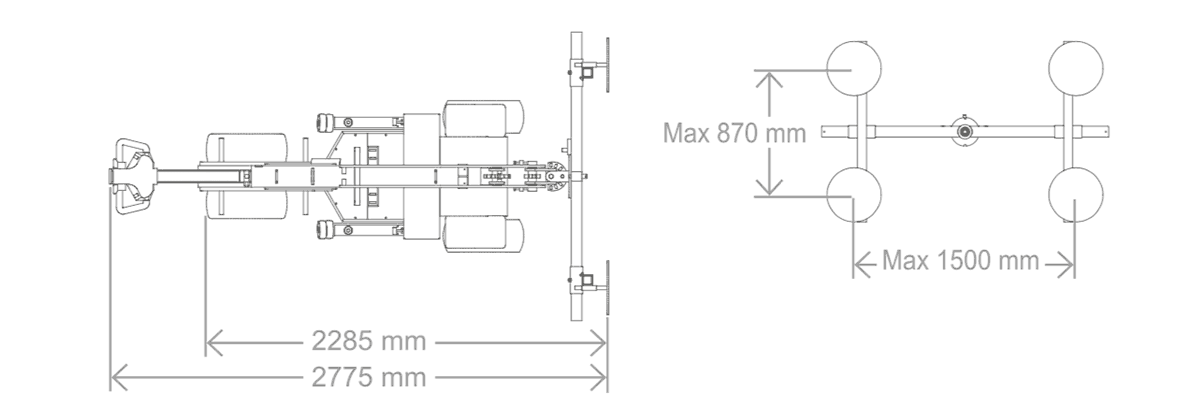

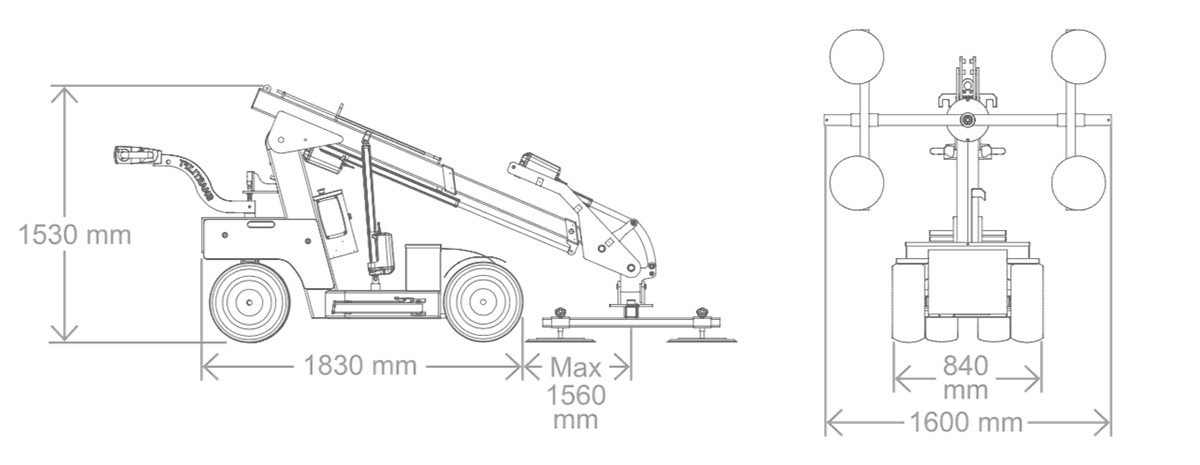

SL 608 Outdoor High Lifter Drawings

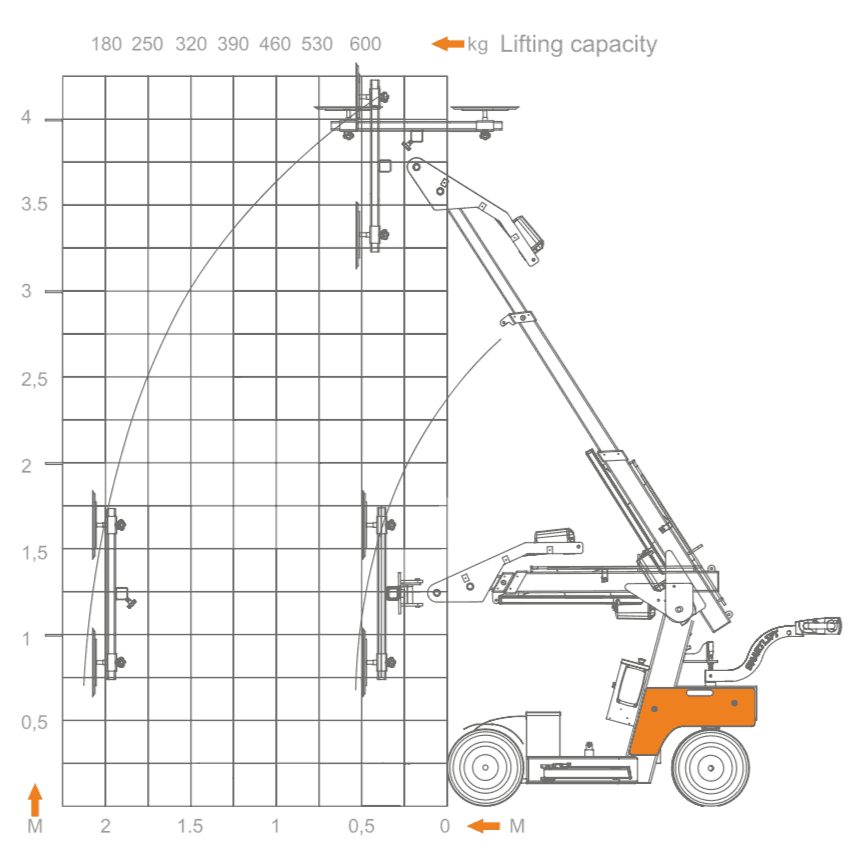

Lifting Capacity
