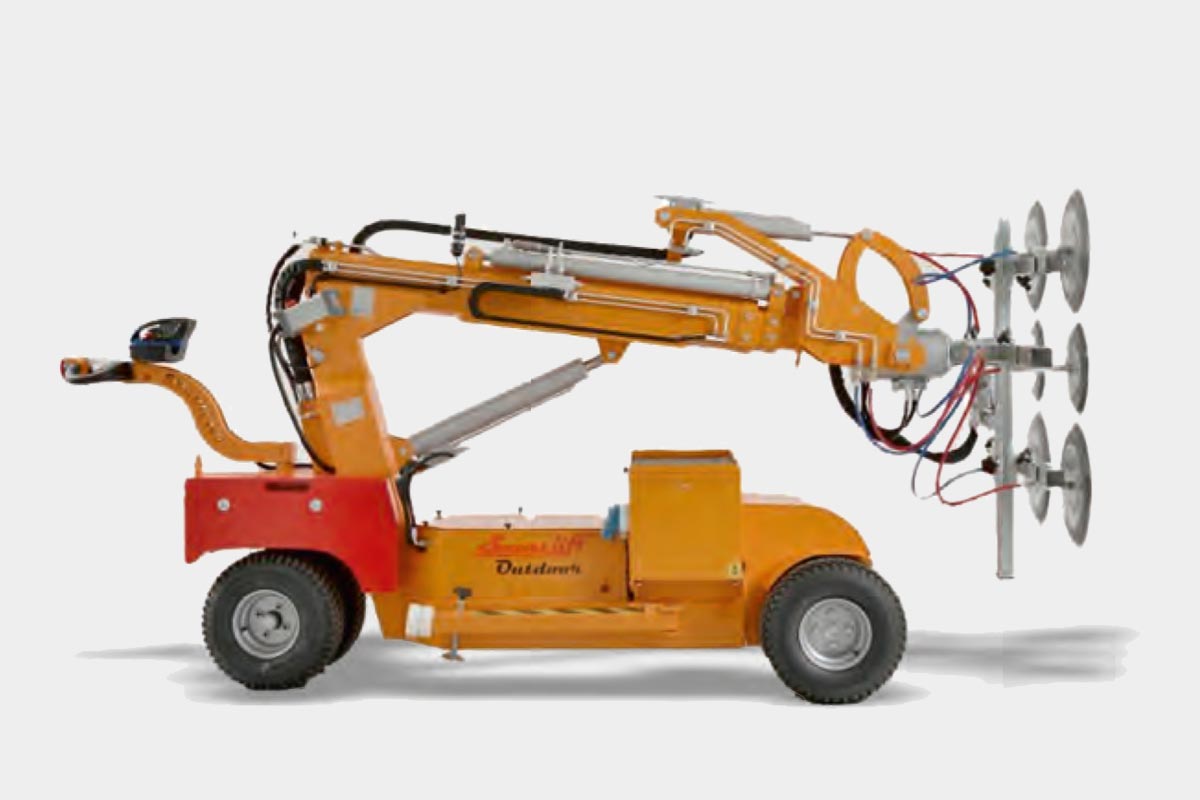

SL 808 Outdoor Giant
SL 808 OHL Data
| DESCRIPTION | VALUE |
|---|---|
| Lifting cap. arm in/out | 820 / 200 kg |
| Lifting height | 4,400 mm |
| Extension of arm | 2 x 830 mm |
| Tip from horizontal | 42° back / 86° fwd |
| Side shift | 100 mm |
| Charging voltage | 230V / 110V |
| Charging time | Approx. 8 hrs. |
| Battery | 4 x 134 Ah AGM |
| Running period | Up to 8 hrs. |
| Front wheel drive | 2000 W AC |
| Suction pads | 4 x Ø400mm & 2 x Ø300mm |
| Curb weight | 1,300 kg |
| Class | IP 65 |
Trolley with motorized displacement, specially designed for glass work installations with up to 800Kg of load.
It has the double safety circuit capacity as required by the EN-13155 standard in relation to equipment for on-site installation.
The rotation of the vacuum cups grill is electric, while the rest of the movements like arm lifting, arm extension and tilting of the suction grid, are hydraulic. All orders can be handled from the operator wireless pushbutton.
The distribution of the suction cups is manually adjustable for different glass sizes.
The excellent traction and stability of the off-road wheels allows to move in outdoor terrain with total safety.
They stand out as optional elements:
RAMP: Aluminum ramp approved to help loading and unloading the SL 808 OHL in the van or lorry.

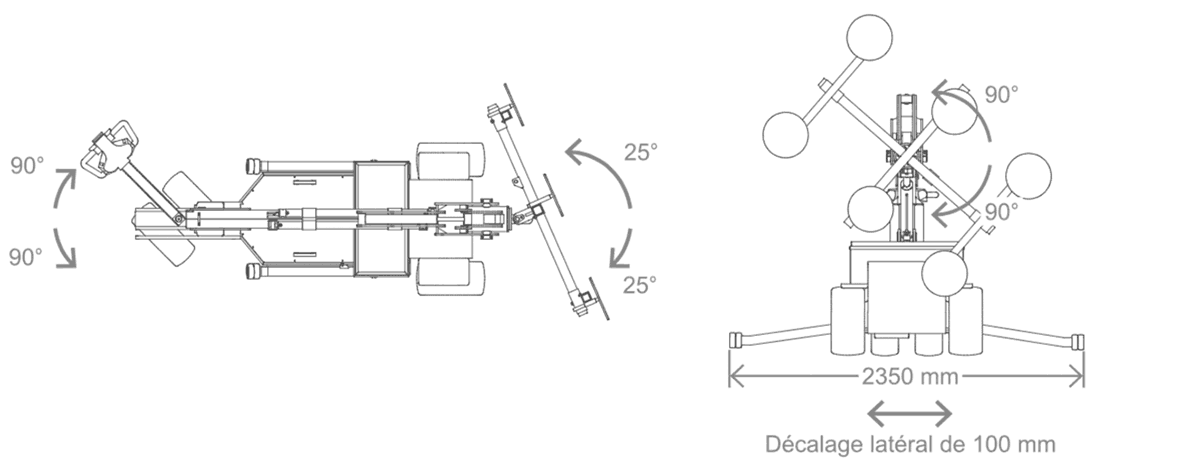

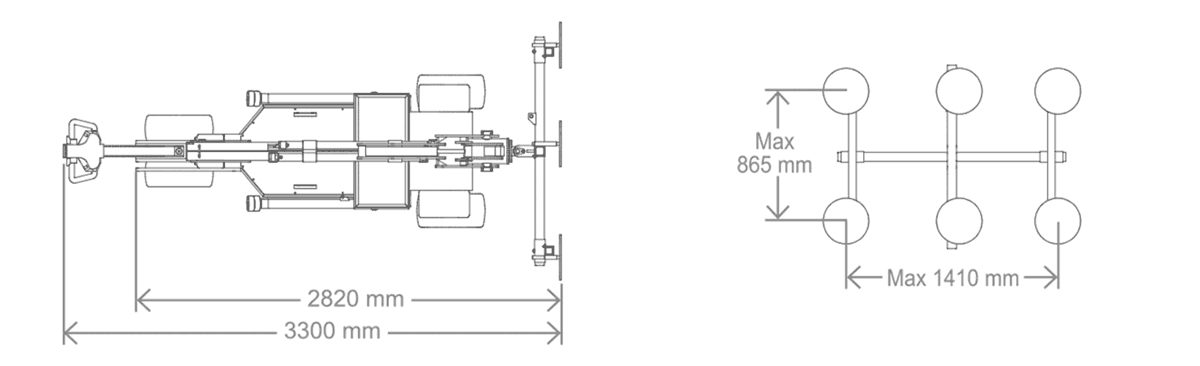

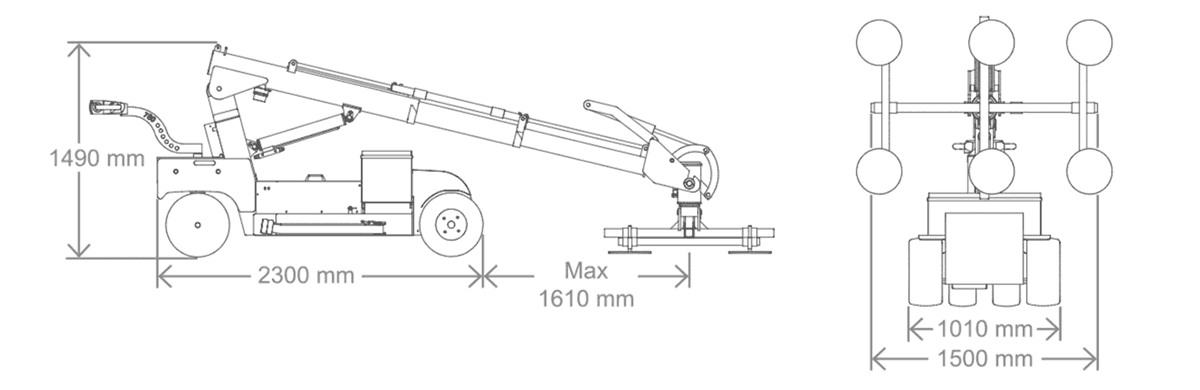

SL 808 Outdoor Giant Drawings

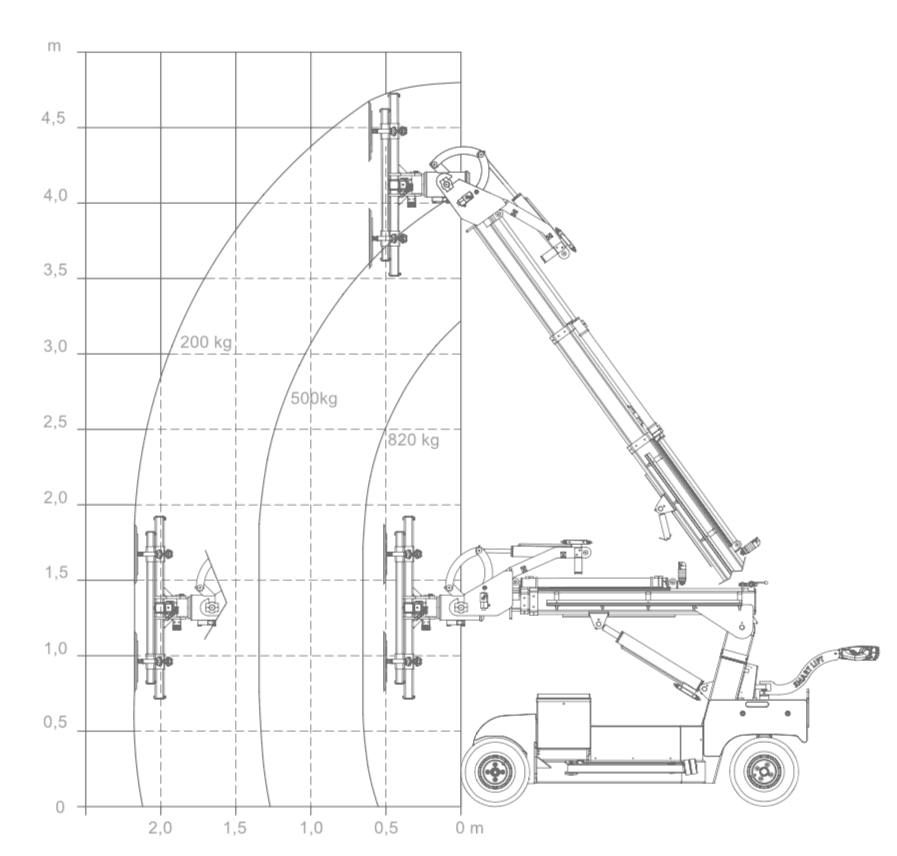

Lifting Capacity
