CMD | CMDB compatible with: VS1 - VS2 - VR2 - VR3 - VR4 - VR136
|895 kg||1470 kg||2045 kg||935 kg||1510 kg||2085 kg|
CMD | CMDB Data
|200-500 VAC (50-60 Hz) +24 VDC|

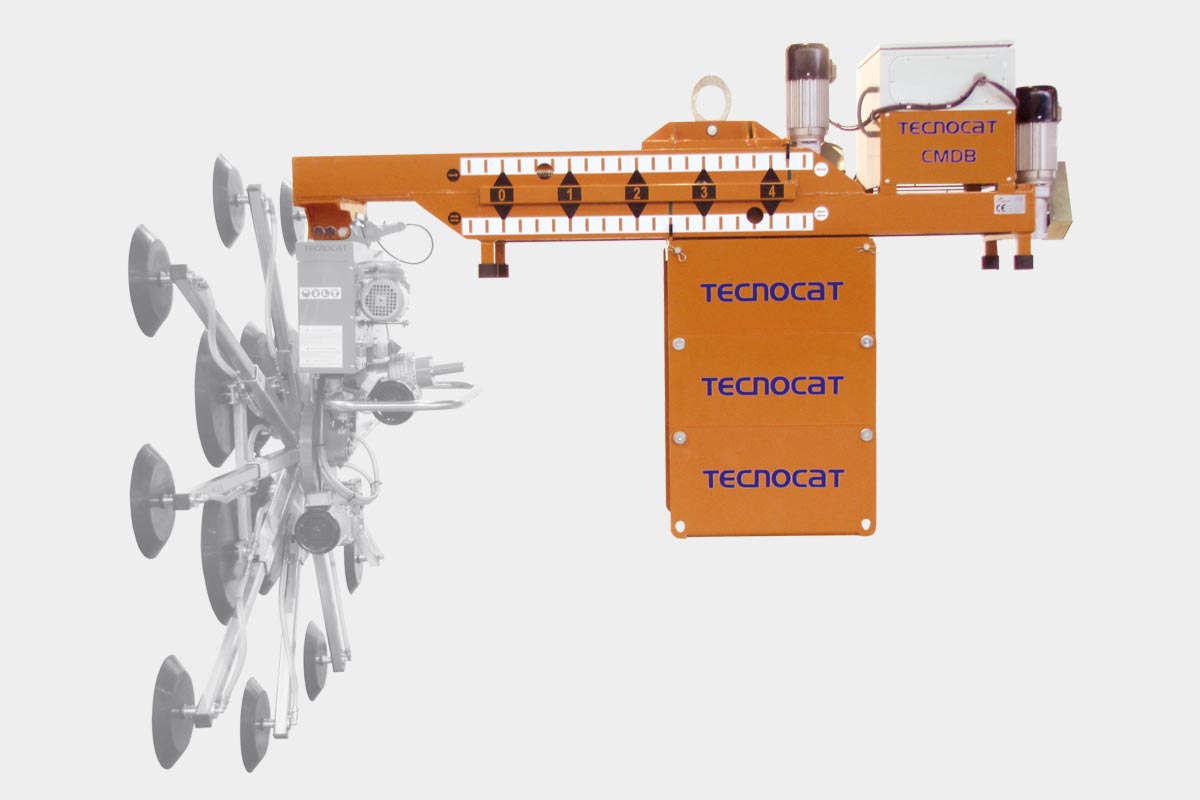

CMD is a dual movement motorized counterweight system, to be attached to any model of VS or VR suction cup equipment.

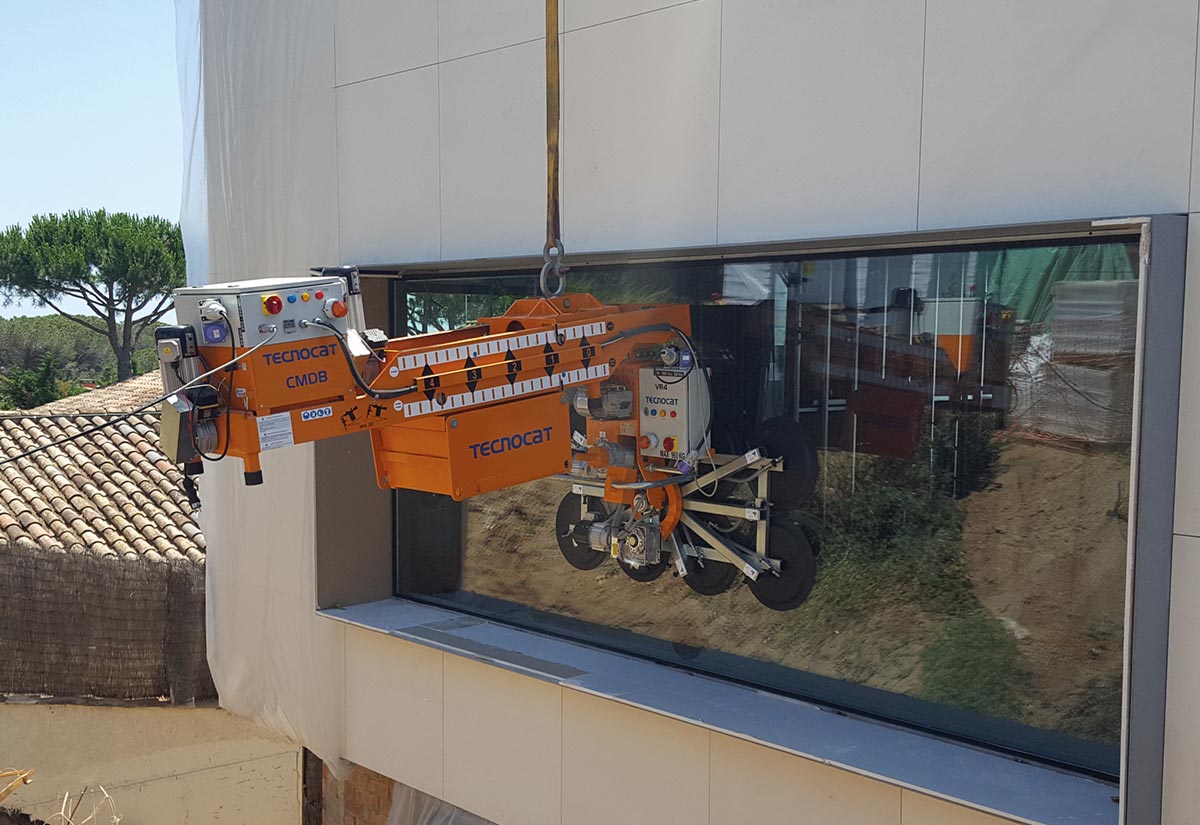

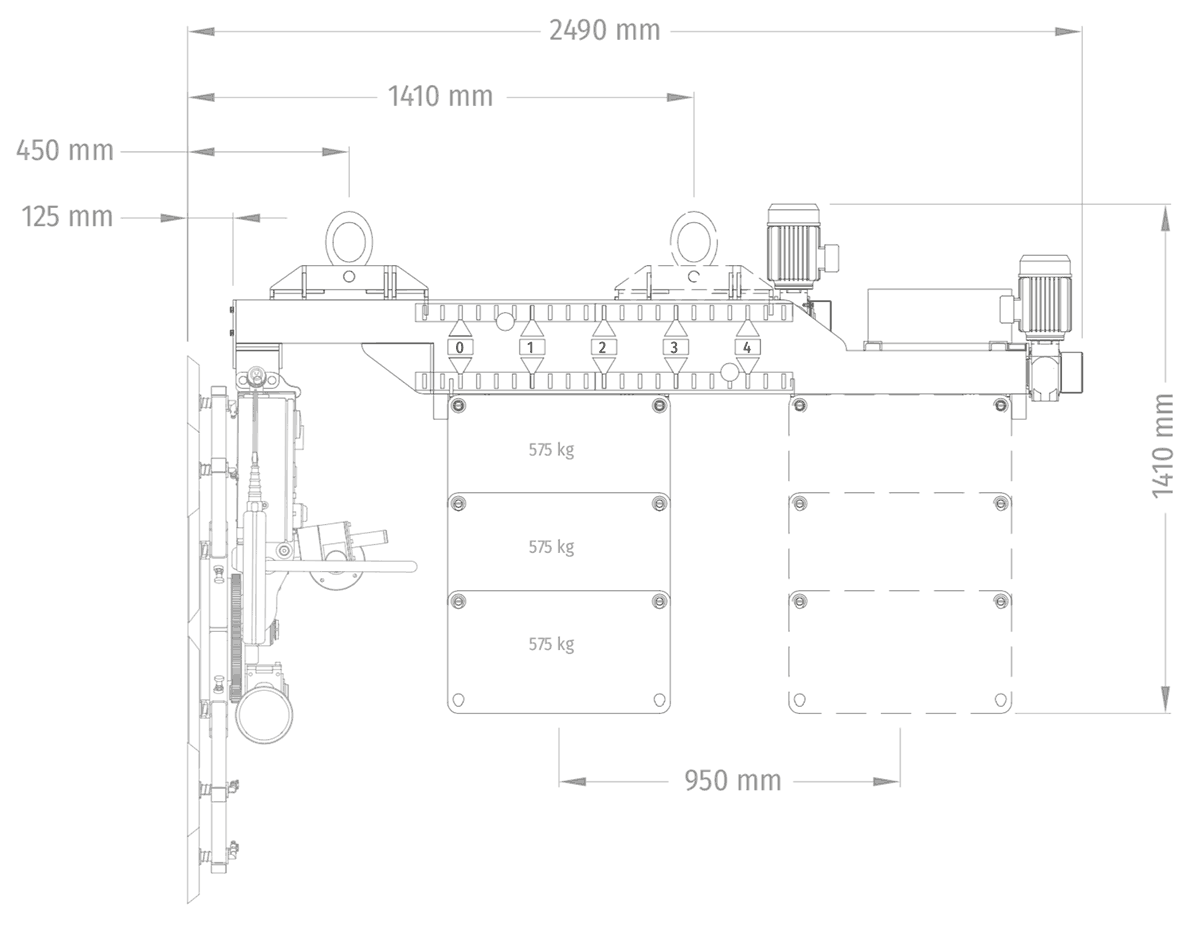

The displacement of the attachment point allows to save overhangs and cornices, while the movement of the different modules of 500, 1000 or 1500Kg allows to keep the system in perfect balance according to the weight of the glass sheet and its installation angle.
CMDB has batteries and it can supply power to the attached suction cup equipment if necessary.
The set of counterweight and suction cup equipment can be handled safely with only one wired keypad, even so, the MI-100 wireless control is highly recommended and practical. With this, all movements of the counterweight and associated suction cup equipment can be performed.
