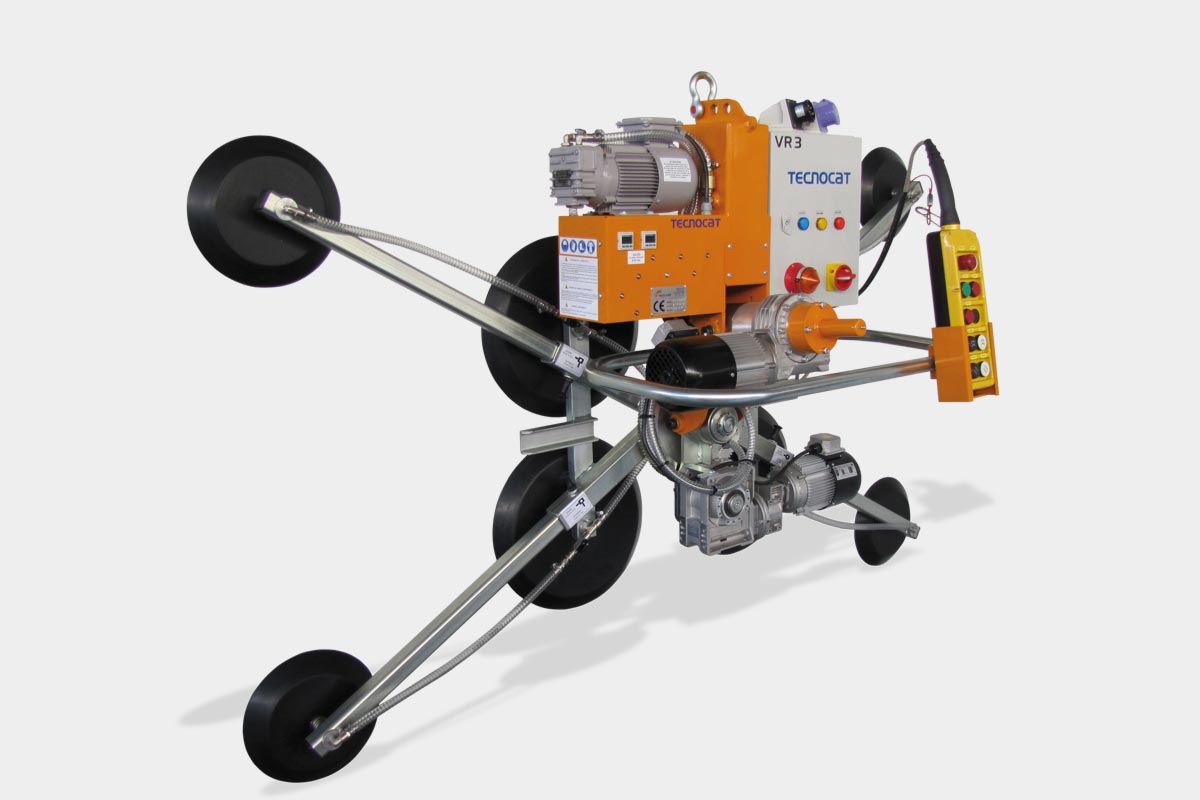

VR3-GB4 | VR3-GB4+4

VR3-GB4 equipment is compact, and with a large load capacity. It has a double safety vacuum circuit for the facilities, according to the EN-13155 standard.

It is highlighted, the electric motorized rotation 360° endless and electric tilting capacity 0°-90°, both very useful for complicated installations, in which, movements can be managed with safety an comfortable way.

It works only with a multi-voltage electrical connection, which allows it to be plugged in regardless of the type of voltage of the electric net. It incorporates load and vacuum indicators for each circuit, in addition to a security alarm.

4 central plates are large in diameter and adding the extensions (model VR3-GB4+4) allow to increase the grip surface and capacity for larger sheets.

Thanks to the wired keypad it is very easy and safe to manipulate the equipment, anyway, MI-100 wireless keypad is highly recommendable and useful.

The included metal box makes it easy to transport and protect the equipment.

VR3-GB4 Data

Maximum load capacity 960 kg
Maximum load capacity according to EN13155 480 kg
Equipment weight 140 kg

VR3-GB4+4 Data

Maximum load capacity 1360 kg
Maximum load capacity according to EN13155 680 kg
Equipment weight 164 kg

Common Data

Equipment produced according to EN13155 OK
Nominal electrical power 950 W
Manually rotating equipment 0° - 360° ENDLESS
Pushbutton cable length 3 m
Electrical power 200-500 VAC (50-60 Hz) +24 VDC
Vacuum system air flow 83 L/min
Motorised tilting equipment 0° - 90°
Energy autonomy by batteries -
Equipment support system OK

VR3-GB4 Drawings

VR3-GB4+4 Drawings
