XE2-1500G-A I XE2-1500G-C I XE2-1500G-E I XE2-1500G + 2KIT CURVO I XE2-1500G+4KIT CURVO

It is a totally modular equipment and can mount different grills for glasses of different weights and dimensions, being able to reach up to 1,500kg.

It has a double safety vacuum circuit for the handling and installation of glass on site, according to the EN-13155 standard.

Battery operation and it can also work with mains power, the 360° endless electric motorized rotation capacity and the 0°-90° hydraulic motorized tilt stand out, both very useful for daily installation work on site and with which you can compensate for any necessary movement in a very comfortable, safe and fast way.

It incorporates new digital control modules in line with industry 4.0. It has load and empty indicators for each circuit, as well as an empty alarm. Through an APP you can obtain information about the equipment, diagnostics and alarms.

XE2-1500G Common data

Equipment produced according to EN13155 OK
Nominal electrical power 150 W
Motorised rotating equipment 360° Endless
Pushbutton cable length 3 m
OK
Electrical power 200-240 VAC (50-60 Hz)
Vacuum system air flow 83 L/min
Motorised tilting equipment 0° - 90°
Energy autonomy by batteries OK - Running period 12h. aprox

XE2-1500G-A Data

Maximum load capacity 1000 kg
Maximum load capacity according to EN13155  500 kg
Equipment weight 158 kg

XE2-1500G-C Data

Maximum load capacity 1500 kg
Maximum load capacity according to EN13155 1000 kg
Equipment weight 190 kg

XE2-1500G-E Data

Maximum load capacity 1500 kg
Maximum load capacity according to EN13155 1500 kg
Equipment weight 249 kg

XE2-1500G + 2KIT CURVO DATA

Maximum load capacity 400 kg
Maximum load capacity according to EN13155 400 kg
Equipment weight 200 kg

XE2-1500G + 4KIT CURVO DATA

Maximum load capacity 800 kg
Maximum load capacity according to EN13155 800 kg
Equipment weight 270 kg

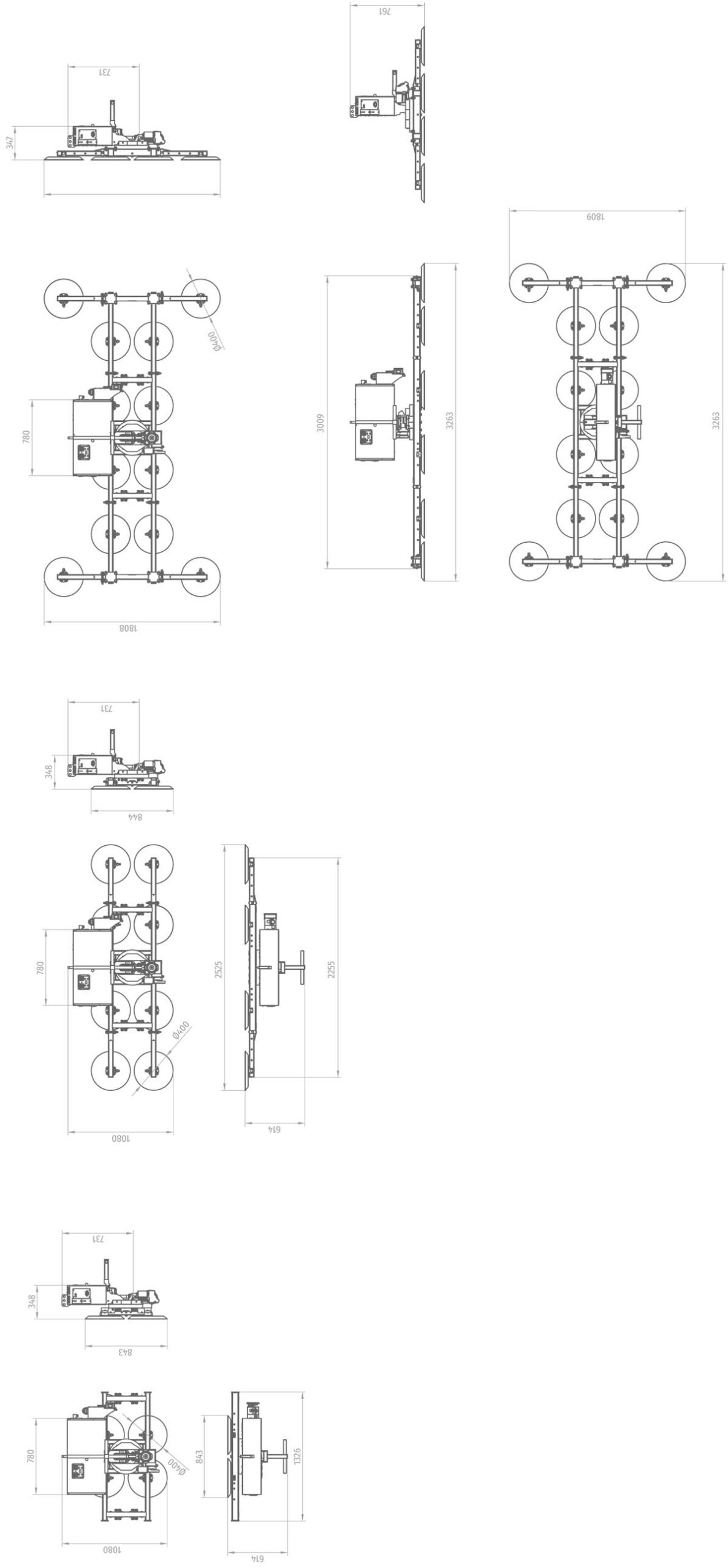

XE2-1500G-A Drawings

XE2-1500G-A

XE2-1500G-C Drawings

XE2-1500G-C

XE2-1500G-E Drawings

XE2-1500G-E esquema

XE2-1500G + 2KIT CURVO Drawings

XE2-1500G + 2KIT CURVO

XE2-1500G + 4KIT CURVO Drawings

XE2-1500G + 4KIT CURVO

Included

Optional

  • FU-P COVERS
  • MI-14A WIRELESS PUSHBUTTON CONTROLLER
  • AL-BOT PUSHBUTTON 10m. WIRE
  • BPS03 .1 EXTERNAL AC POWER SUPPLY BOX
