VS2-GB4 | VS2-GB4+4

VS2-GB4 equipment is compact and with large load capacity. It has a double safety vacuum circuit for the facilities, according to the EN-13155 standard.

It always work with batteries and it can work and self recharge at the same time connected in multi-voltage, regardless of the type of voltage in the electric net. It incorporates load and vacuum indicators for each circuit, in addition to a security alarm.

4 central plates are large diameter and adding the extensions (model VS2-GB4+4) allow to increase the grip surface and capacity for larger sheets.

Thanks to the wired keypad it is very easy and safe to manipulate the equipment.

The included metal case makes it easy to transport and protect the equipment.

VS2-GB4 Data

Maximum load capacity 960 kg
Maximum load capacity according to EN13155 480 kg
Equipment weight 98 kg

VS2-GB4+4 Data

Maximum load capacity 1360 kg
Maximum load capacity according to EN13155 680 kg
Equipment weight 122 kg

Common Data

Equipment produced according to EN13155 OK
Nominal electrical power 240 W
Manually rotating equipment 90° - 180° - 270° - 360°
Pushbutton cable length 3 m
Electrical power 200-500 VAC (50-60 Hz) +24 VDC
Vacuum system air flow 83 L/min
Manually tilting equipment 30° - 60° - 90°
Energy autonomy by batteries OK - Running period 20h aprox
Equipment support system OK

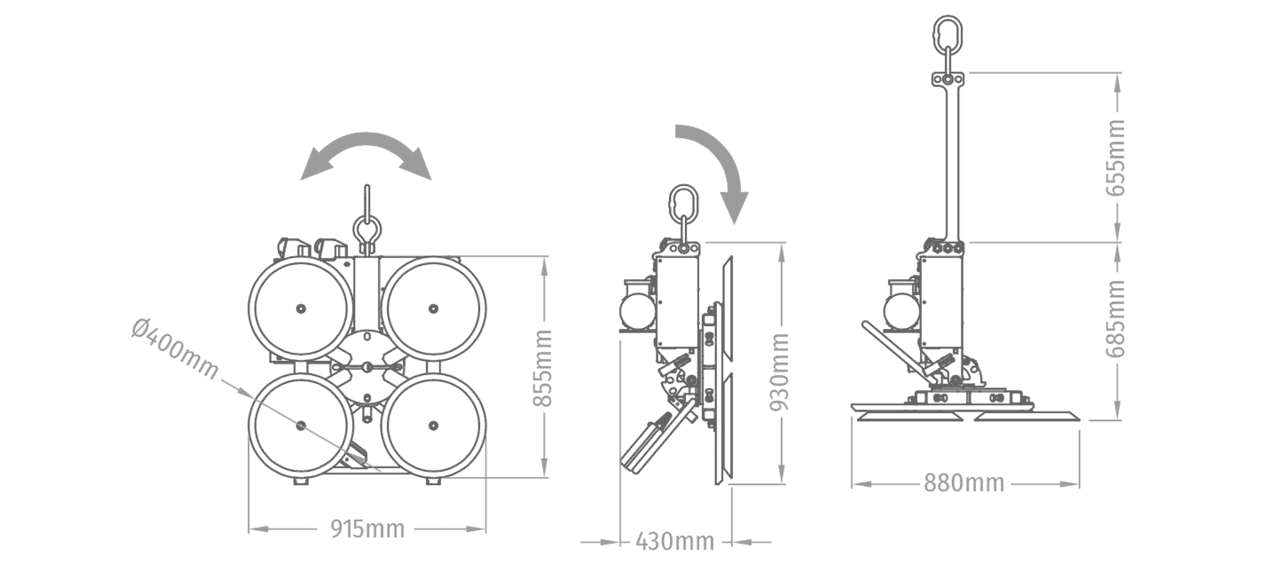

VS2-GB4 Drawings

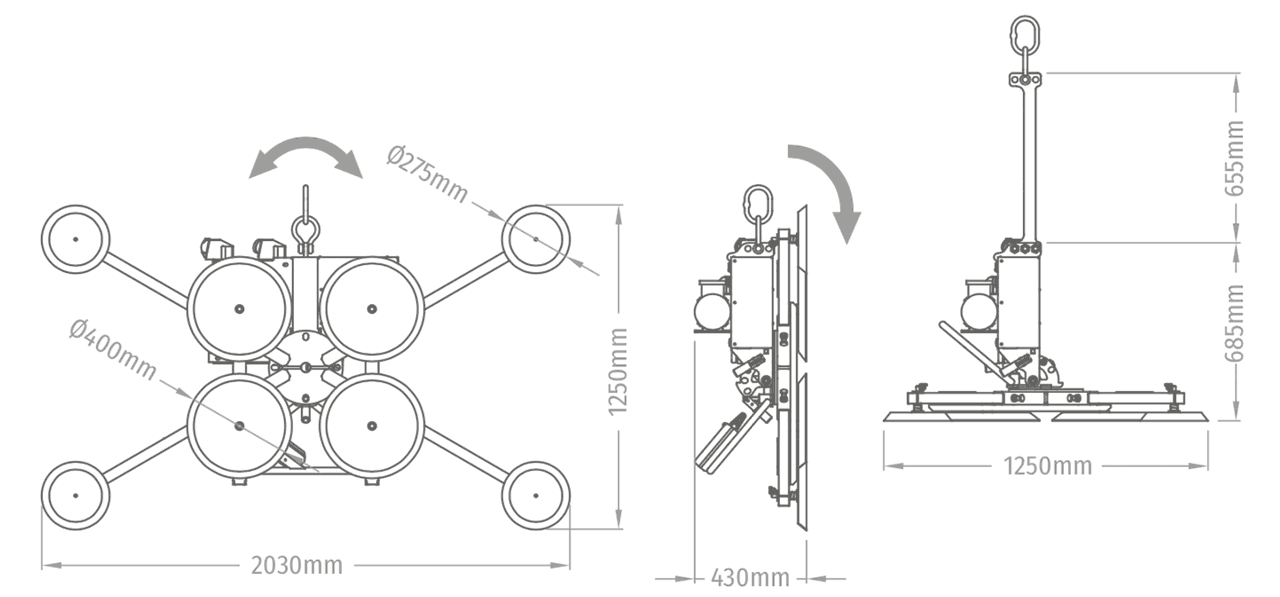

VS2-GB4+4 Drawings
