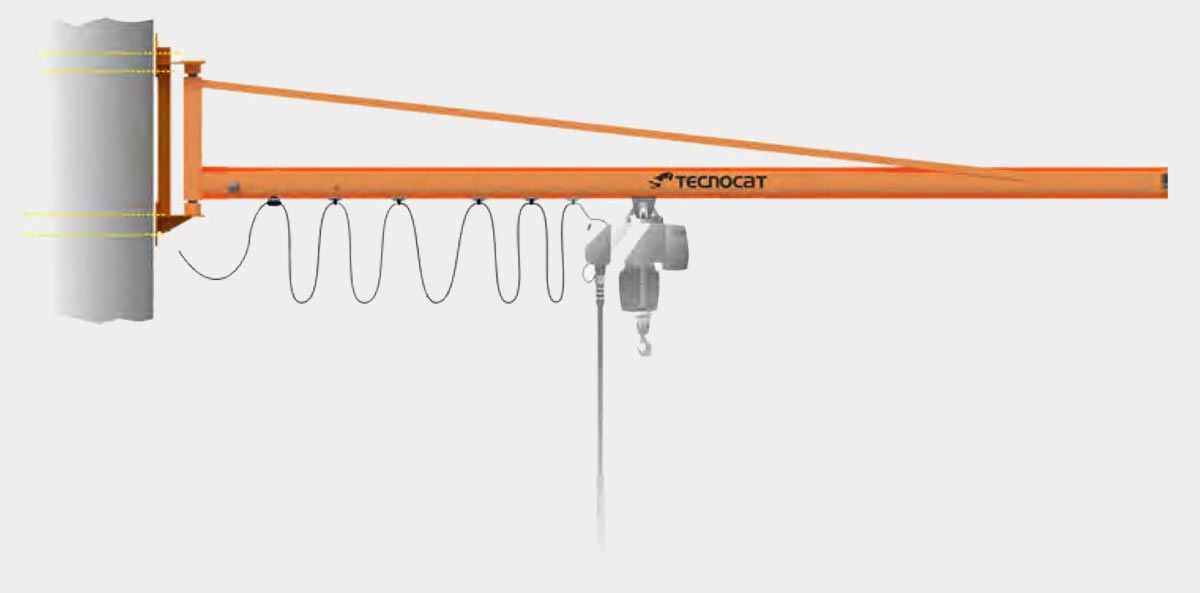

ML-B equipment is a crane arm lifting system with load capacity up to 500Kg.

There are 4000, 5000, 6000 and 7000mm arm length measurements and the rotation angle is 180° or 270°, depending on the location.

Jib crane movements are manual.

Thanks to beam length,  this is the perfect equipment for working on processing lines that require agility of movements on a wide work area. Installed in the correct location, it is ideal for working in edger machines, entrance or exit on double glazing lines, CNC, laminating lines, entrance or exit on tempering furnaces, cutting tables, aluminum assembly for windows and doors, washing machines, etc.

As usual, elevation process must be done by means of a hoist, wich is not included with ML-B.

The installation of the jib crane can be carried out by means of different systems: direct anchoring to the wall, by welding on an existing metal profile, by means of brackets attached to an existing concrete column.

Any of these processes must be verified by a specialist technician.

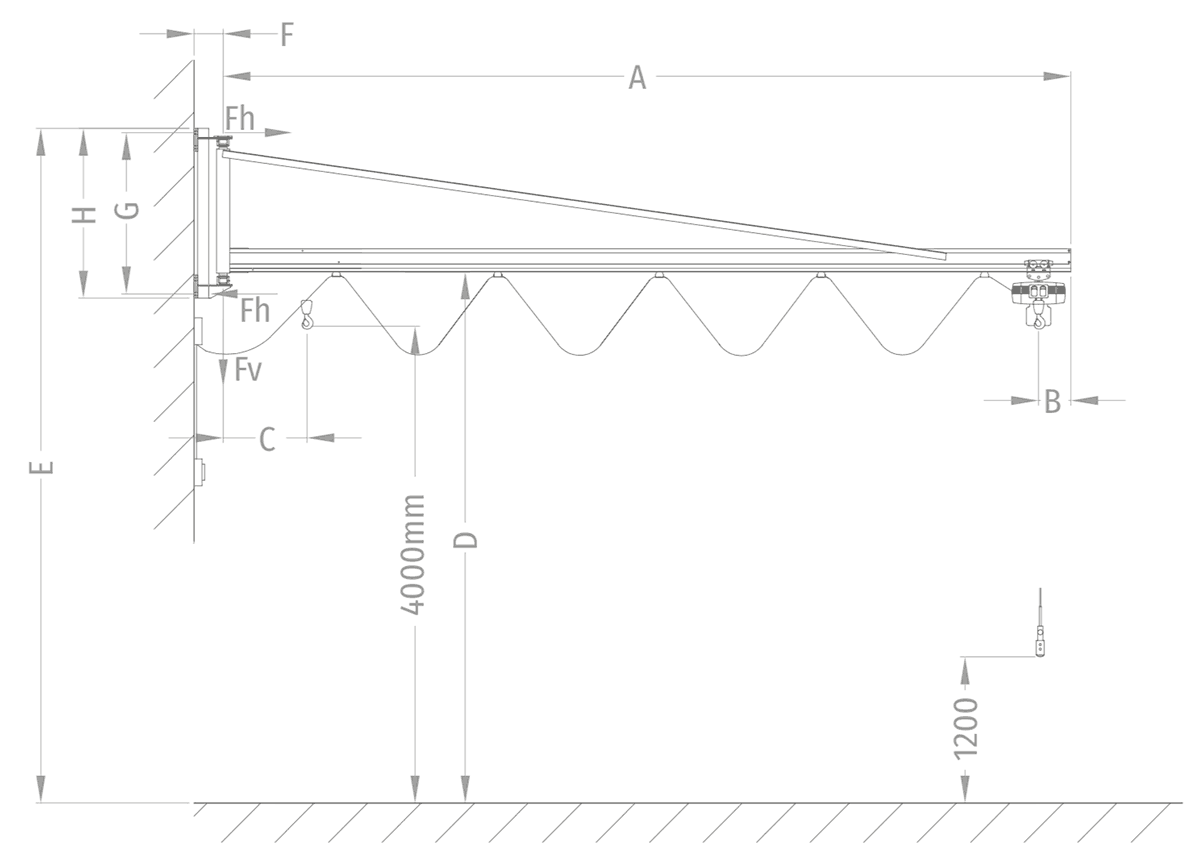

CL-B Data

Maximum load capacity Lifting crane usable rotation A
(kg.)		 B
(°)		 C
(mm)		 D
(mm)		 E
(mm)		 F
(mm)		 G
(mm)		 Mf
(kNm)		 Fn
(kN)
ML‑B4‑250 250 kg 180° 4000 140 932 4400 5360 240 1025 18 6,5
ML‑B5‑250 250 kg 180° 5000 140 932 4400 5360 240 1025 22,4 6,7
ML‑B6‑250 250 kg 180° 5795 140 932 4400 5360 240 1025 27,2 7
ML‑B7‑250 250 kg 180° 7000 140 1080 4400 5660 240 1325 26,6 8
ML‑B4‑500 500 kg 180° 4000 140 932 4400 5360 240 1025 30,9 9,7
ML‑B5‑500 500 kg 180° 5000 140 932 4400 5360 240 1025 38,8 9,9
ML‑B6‑500 500 kg 180° 5795 140 932 4400 5360 240 1025 46,1 10,2
ML‑B7‑500 500 kg 180° 7000 140 1080 4400 5660 240 1325 44 11,1

ML-B

D: RECOMMENDED WORKING HEIGHT

ROTATION: 180° OR 270° DEPENDING ON THE EXISTING SUPPORT

Optional

  • HOIST 250 KG. OR 500 KG.
