FE2-400G | FE2-400G+2 | FE2-400G+4

COMMON DATA

Manually rotating equipment 90° - 180° - 270° - 360°
Motorised tilting equipment 0° - 90°
Vacuum system air flow 83 L/min
Equipment support system OK
Nominal electrical power 480 W
Electrical power 200 - 500 VAC (50 - 60 Hz)
Energy autonomy by batteries -
OK

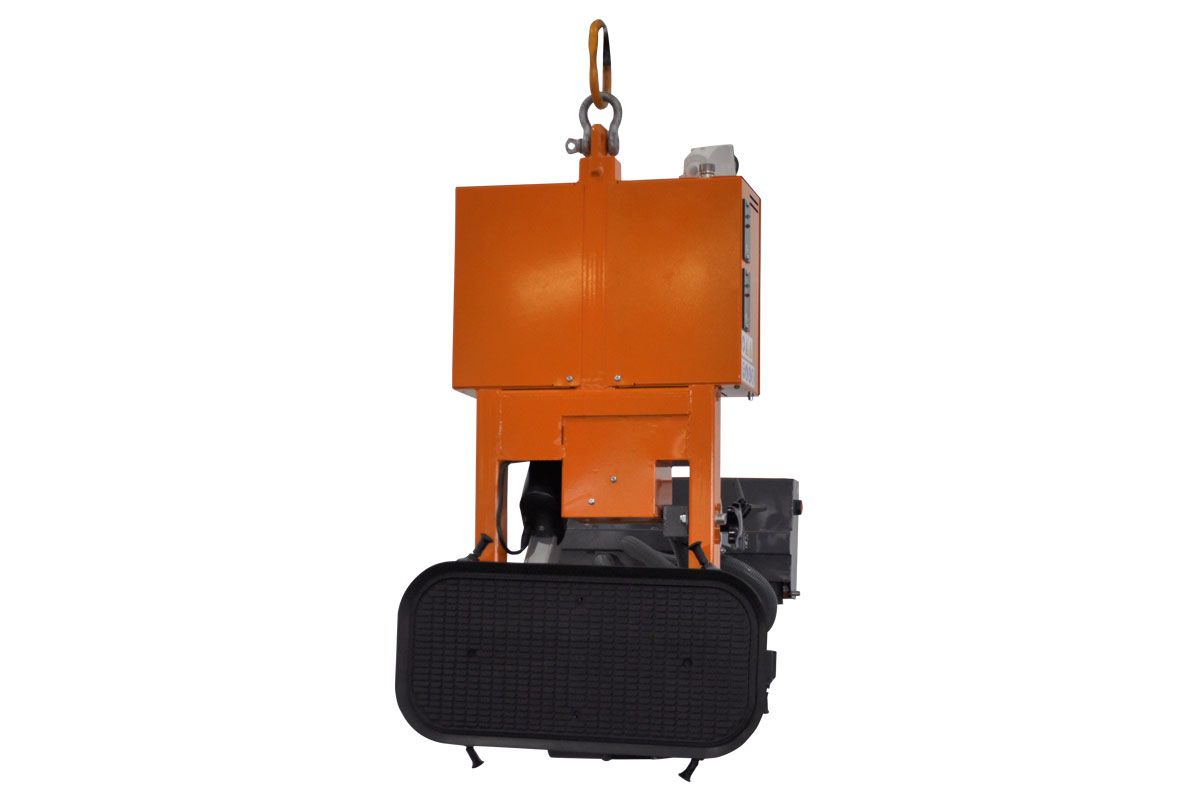

FE2-400G DATA

Maximum load capacity 250 kg
Equipment weight 65 kg

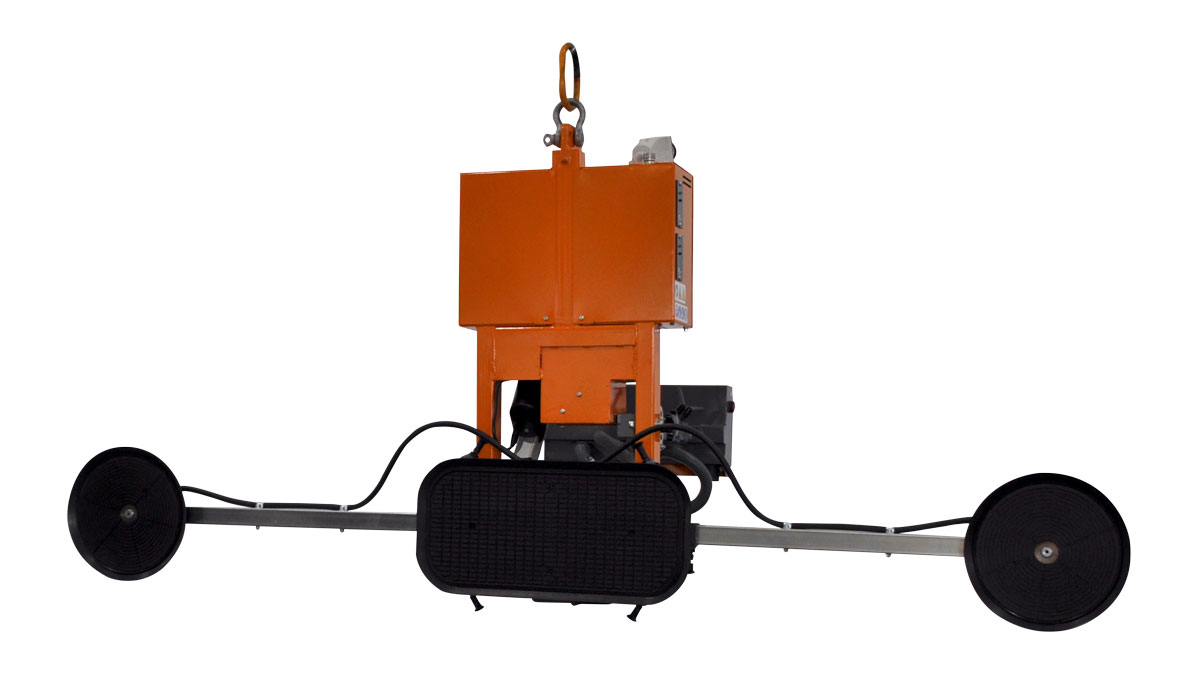

FE2-400G+2 DATA

Maximum load capacity 400 kg
Equipment weight 77 kg

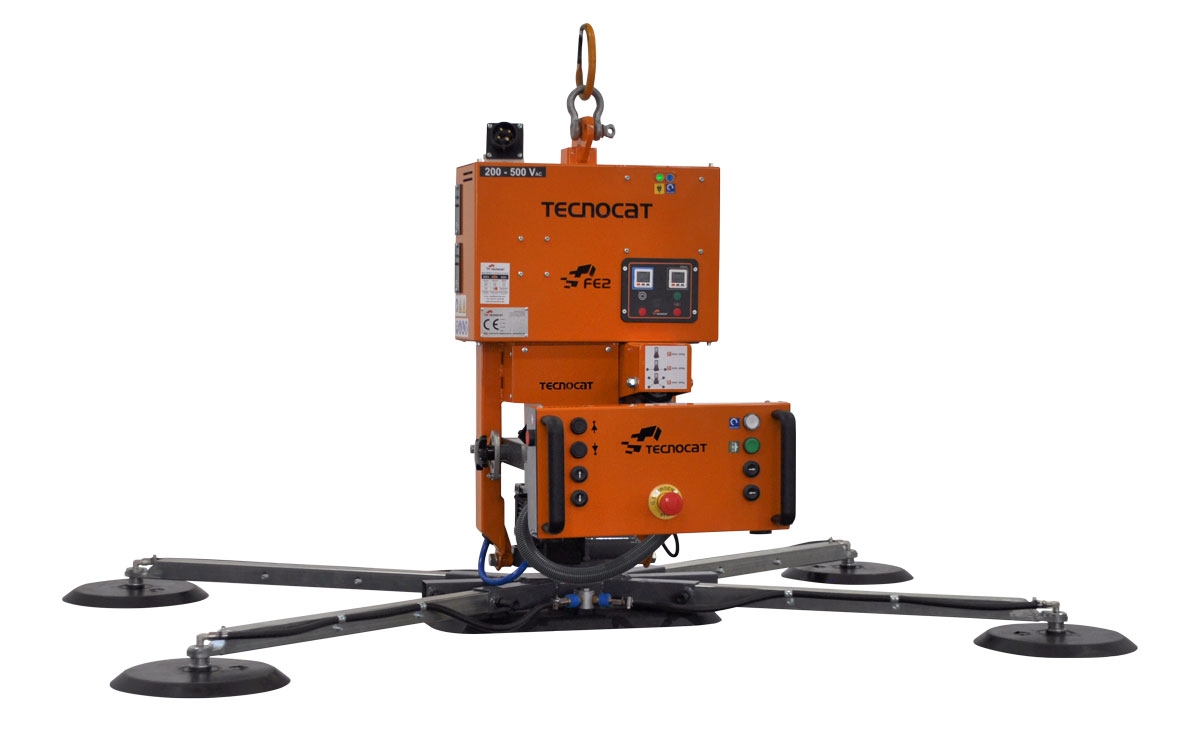

FE2-400G+4 DATA

Maximum load capacity 400 kg
Equipment weight 85 kg

Light equipment with 360° manual rotation and 0° - 90° electric tilting, especially suitable for vertical and horizontal glass handling processes such as edger machines,  vertical and horizontal CNCs, vertical and horizontal washing machines, tempering furnaces, handling and assembly of doors and windows, cutting tables ...

It works only with electricity and the tilting is smooth, precise to speed up the operator's work and increase efficiency.

The rectangular central plate provides great suction which allows loading up to 250Kg. Adding the extensions allows increasing the grip surface for larger sheets and load capacity up to 400Kg.

This equipment combines perfectly with TECNOCAT ELEVATION SYSTEMS.

It is a multi-tension equipment and it has an horizontal  extendable control keypad to hold large format sheets and incorporates air pressure and vacuum indicators, in addition to a vacuum security alarm.

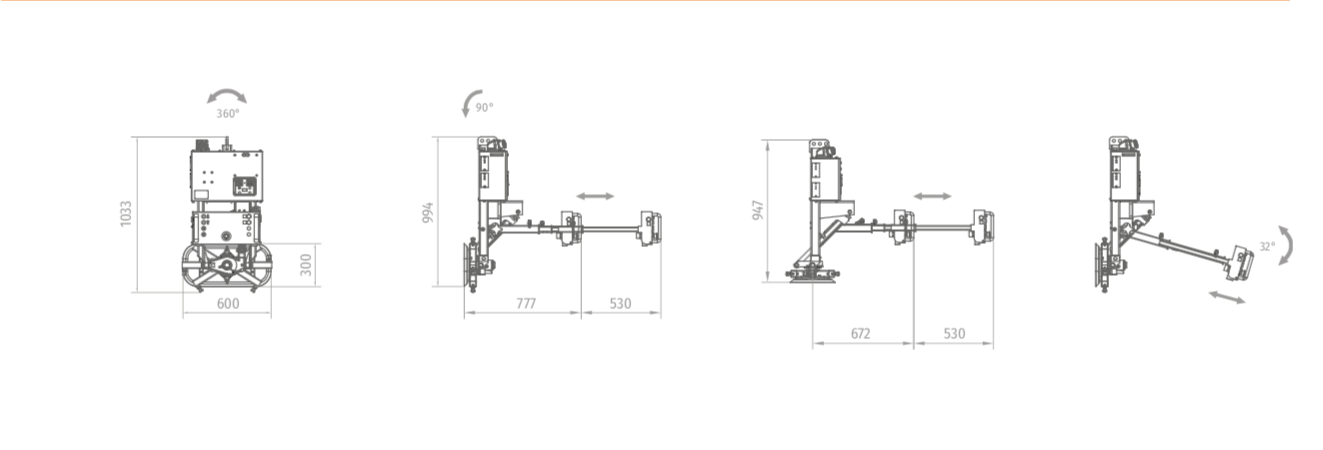

FE2-400G DRAWINGS

 FE2-400G esquema

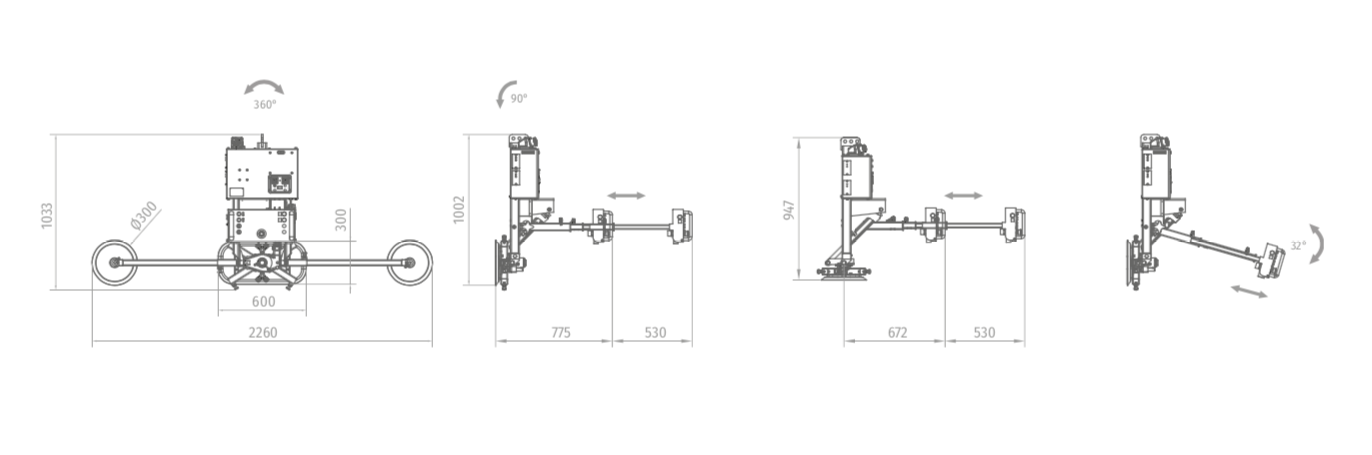

FE2-400G+2 DRAWINGS

FE2-400G+2 x 4AL-FE2 esquema

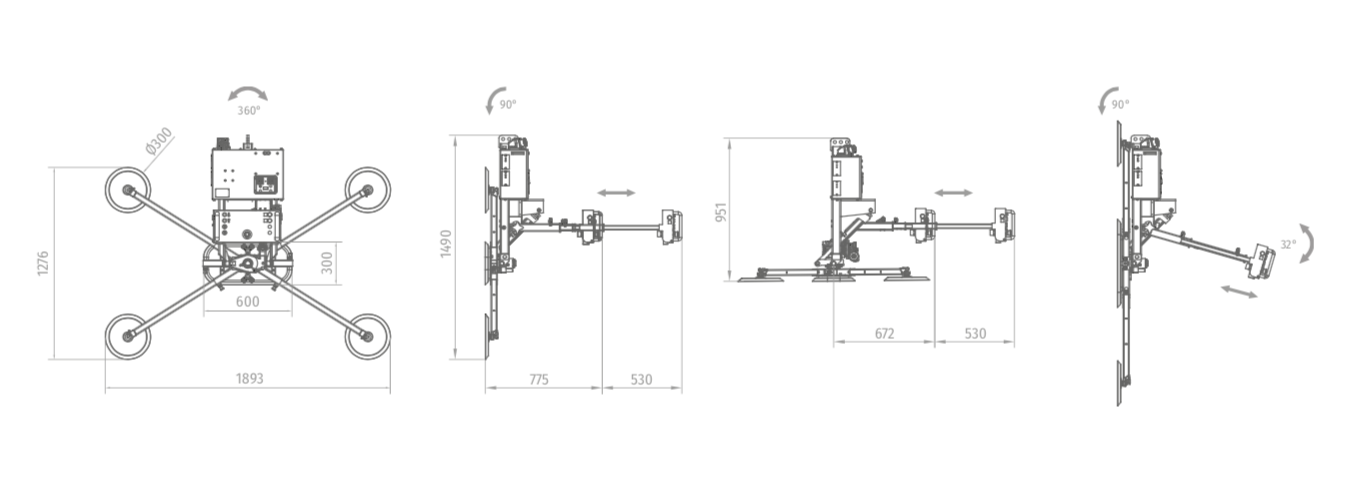

FE2-400G+4 DRAWINGS

FE2-400G+4 x 4AL-FE2 esquema
