FE1-400G I FE1-400G+4AL-FE1

FE1-400G Data

Maximum load capacity 250 kg
Equipment weight 58 kg

FE1-400G+4AL-FE1 Data

Maximum load capacity 400 kg
Equipment weight 68 kg

Common Data

Pneumatic rotating equipment 0° - 360° - Endless
Vacuum system air flow 83 L/min
Equipment support system OK
Nominal electrical power 480 W
Electrical power 200 - 500 VAC (50 - 60 Hz)
OK

Light equipment especially suitable for vertical glass handling processes such as work on edging machines, vertical and horizontal CNC machines, vertical washing machines, handling and assembly of doors and windows...

Electric operation, 360º rotation with smooth and precise movements that facilitate effortless work for the operator.

Incorporates the new digital control modules in line with the Industry 4.0. It has vacuum level indicator with luminous and acoustic alarm. Through an app you can obtain information about the equipment, diagnostics and alarms.

The central rectangular plate provides a great suction which allows to load up to 250Kg, adding the extensions allows to increase the gripping surface for larger sheets and capacity up to 400Kg.

This equipment combines perfectly with TECNOCAT LIFTING SYSTEMS. It is possible to control the lifting and lowering movements of the hoist (fast and slow) from the suction cup controls.

It has a multi-voltage electrical connection (200-500v) and a vertically extendable control panel to hold large format sheets.

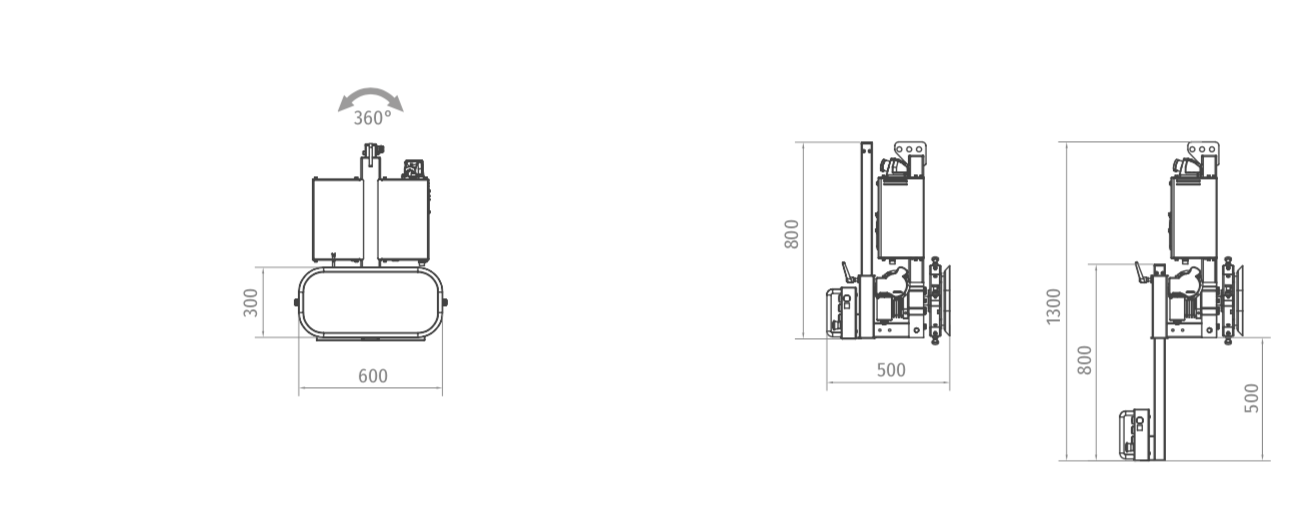

FE1-400G DRAWINGS

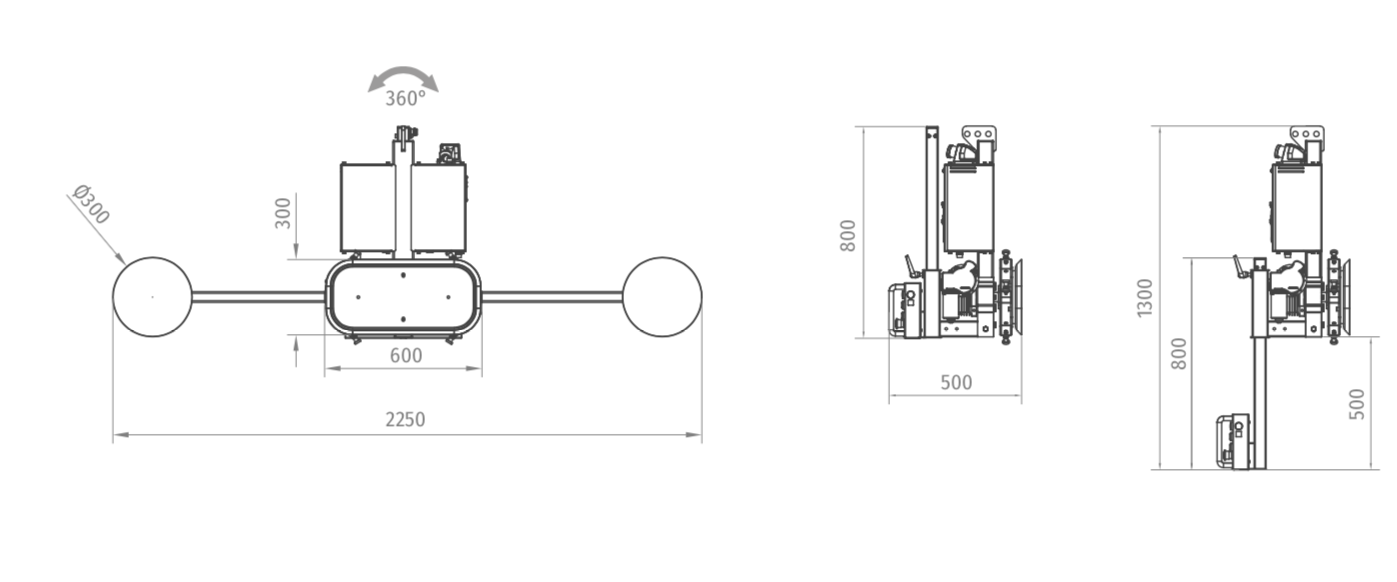

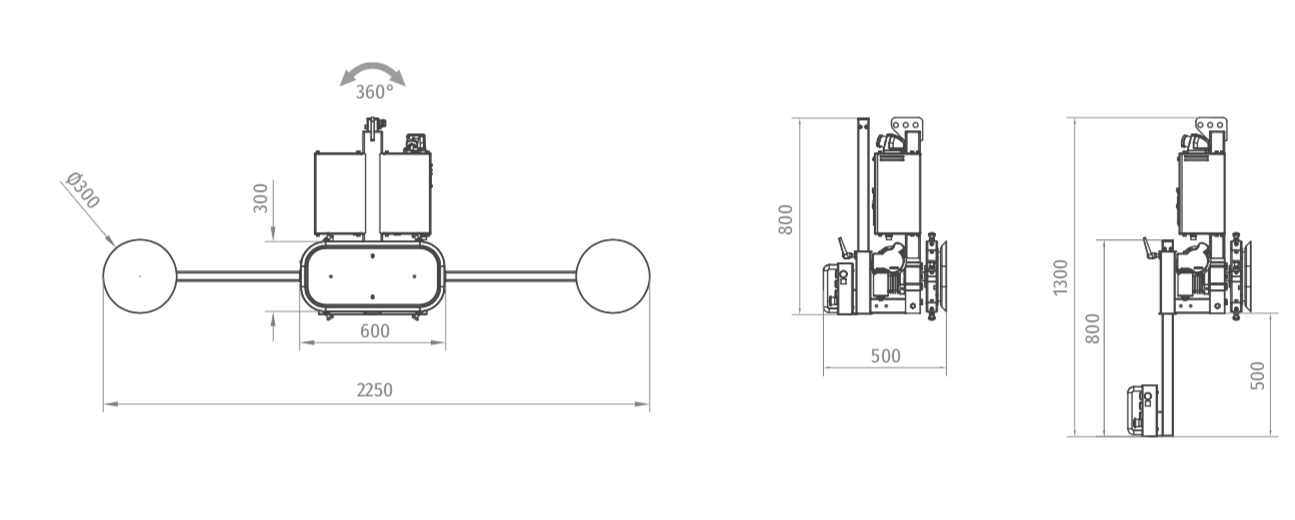

FE1-400G+4AL-FE1 DRAWINGS
