VN5-B4 | VN5-B4+4

VN5-B4 Data

Maximum load capacity 400 kg
Equipment weight 92 kg

VN5-B4+4 Data

Maximum load capacity 400 kg
Equipment weight 108 kg

Common Data

Pneumatic supply 7 bar - 100 l/min
Rotating equipment -
Equipment support system -
Vacuum system air flow 40 L/min
Pneumatic tilting equipment 0° - 90°

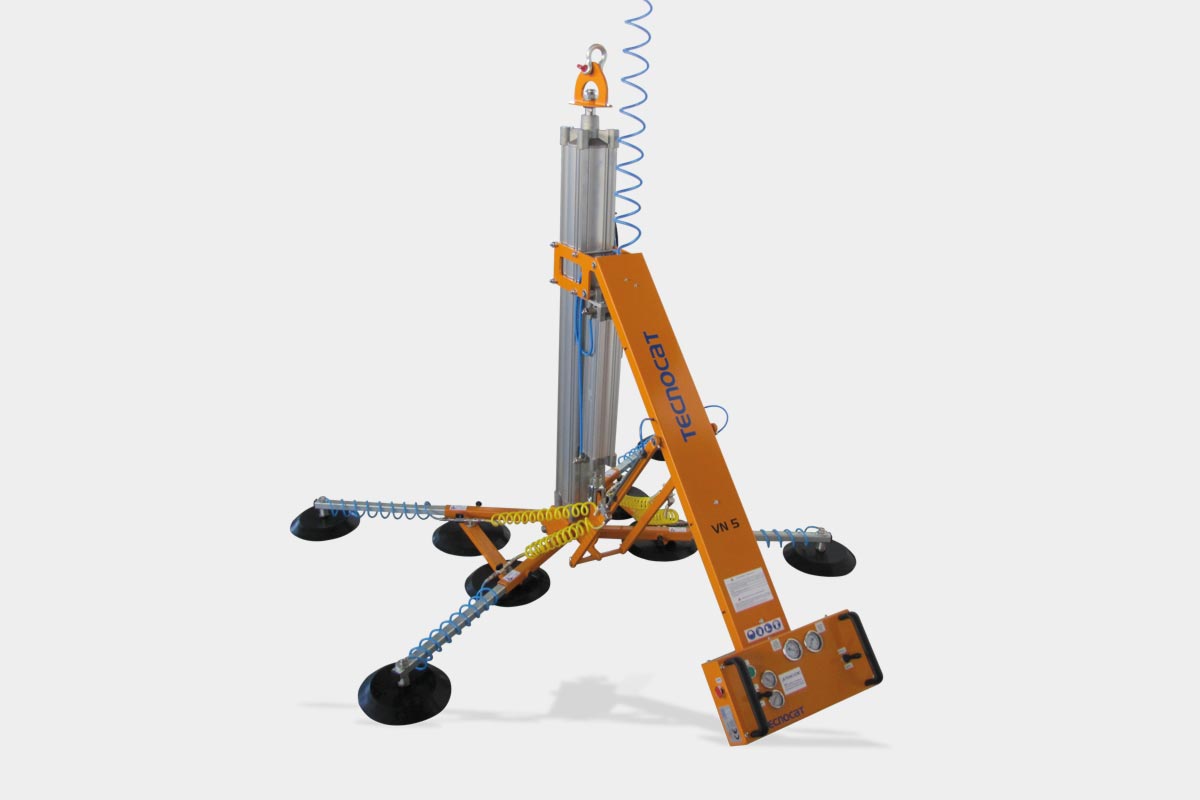

Light equipment with pneumatic tilting 0°-90° specially suitable for horizontal glass handling processes such as horizontal CNC machines, laminate glass lines, tempering furnaces, horizontal assembly of doors and windows, cutting tables ...

It works only with pressurized air and the movement is fast and precise to speed up the operator's work and increase efficiency.

Four central plates provide great suction, which allows loading up to 400Kg. Adding the extensions (model VN5-B4+4) allows increasing the grip surface for larger sheets.

This equipment combines perfectly with TECNOCAT ELEVATION SYSTEMS and does not require a hoist because it has its own lifting piston.

It has an extendable horizontal control button to hold large format sheets in a horizontal position safely and incorporates air pressure and vacuum indicators, as well as a vacuum security alarm.

VN5-B4 Drawings

VN5-B4+4 Drawings
