VN6-GB2 | VN6-GB2+2

VN6-GB2 Data

Maximum load capacity 250 kg
Equipment weight 57 kg

VN6-GB2+2 Data

Maximum load capacity 400 kg
Equipment weight 96 kg

Common Data

Pneumatic supply 7 bar - 100 l/min
Pneumatic rotating equipment 0° - 90°
Equipment support system OK
Vacuum system air flow 40 L/min
Pneumatic tilting equipment 0° - 90°

Light equipment with manual rotation 0° - 90° and pneumatic tilting 0° - 90° indicated for vertical and horizontal glass handling processes, such as edger machines, vertical or horizontal CNC machines, laminate glass machines, tempering furnaces, horizontal assembly of doors and windows, cutting tables ...

It works only with pressurized air and the movement is fast and precise to speed up the operator's work and increase efficiency.

Two central vacuum cups provides great suction which allows loading up to 250Kg. Adding the extensions (model VN6-GB2+2) allows increasing the grip surface for larger sheets and load  capacity up to 400Kg.

This equipment combines perfectly with TECNOCAT ELEVATION SYSTEMS.

It has an extendable horizontal control button to hold large-format sheets in horizontal position in a safe way,  and it incorporates air pressure and vacuum indicators, in addition to a vacuum security alarm.

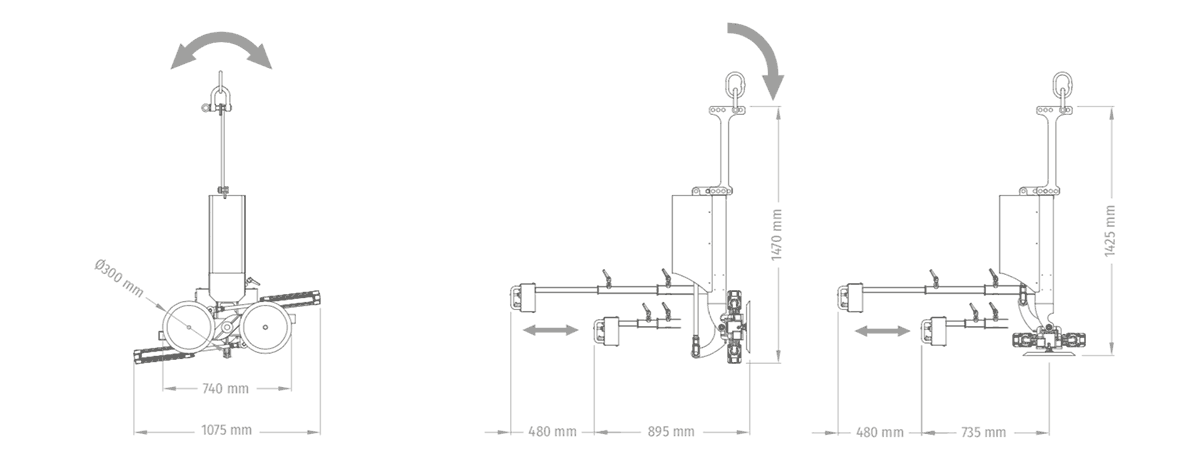

VN6-GB2 Drawings

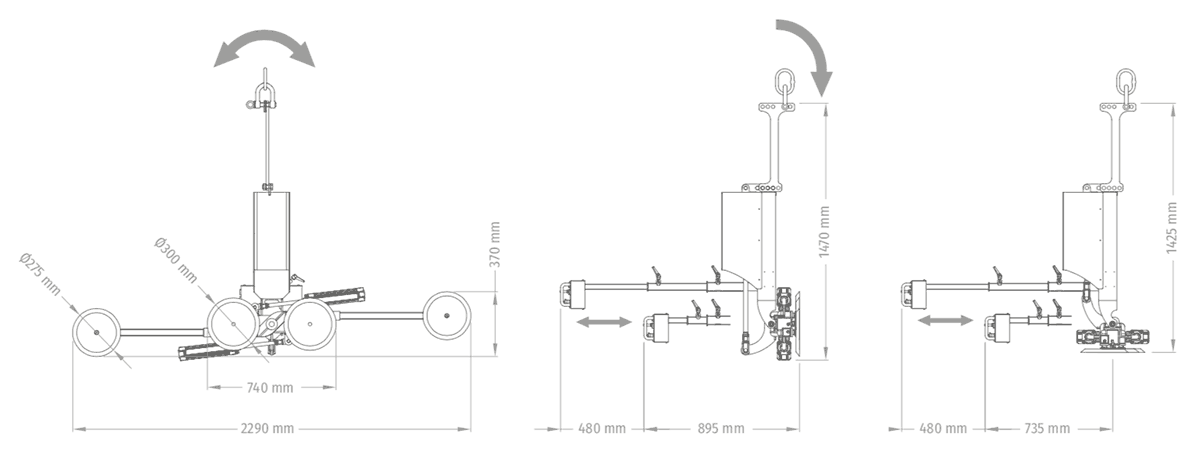

VN6-GB2+2 Drawings
