VP-GB8 | VP-GB8+8 | VP-GB8.4 | VP-GB8.4+8

VP-GB8 equipment is specially designed for large format curved glass installations up to 2000Kg. It has a double safety vacuum circuit for the installations, according to the EN-13155 norm.

It is highlighted the endless 360° electric motorized rotation capacity and the 0°-90° electric motorized tilting, both very useful for complicated installations and with which any necessary movement can be compensated in a very comfortable and safe way.

It always works with batteries and can work and recharge at the same time by connecting in multi-voltage, regardless of the type of voltage in the network. It incorporates load and vacuum indicators for each circuit, in addition to a security alarm.

The distribution of VP-GB8 suction plates is variable and can be adjusted to different sheet formats and capacities required. Adding the extensions, they allows an excellent grip and capacity thanks to 400mm diameter vacuum cups.

It can be attached to the CMDB counterweight to get a perfect equipment to work with big loads in difficult places. It has wireless command MI-100, with which the VP-GB8 unit can be operated together with the counterweight.

Metal box, which is included, guaranties the protection while it is transported or kept in the work area.

VP-GB8 Common Data

Equipment produced according to EN13155 OK
Nominal electrical power 950 W
Motorised rotating equipment 0° - 360° Endless
Pushbutton cable length 3 m
Wireless pushbutton OK
Electrical power 200-500 VAC (50-60 Hz) +24 VDC
Vacuum system air flow 166 L/min
Motorised tilting equipment 0° - 90°
Energy autonomy by batteries OK - Running period 12h aprox
Equipment support system OK

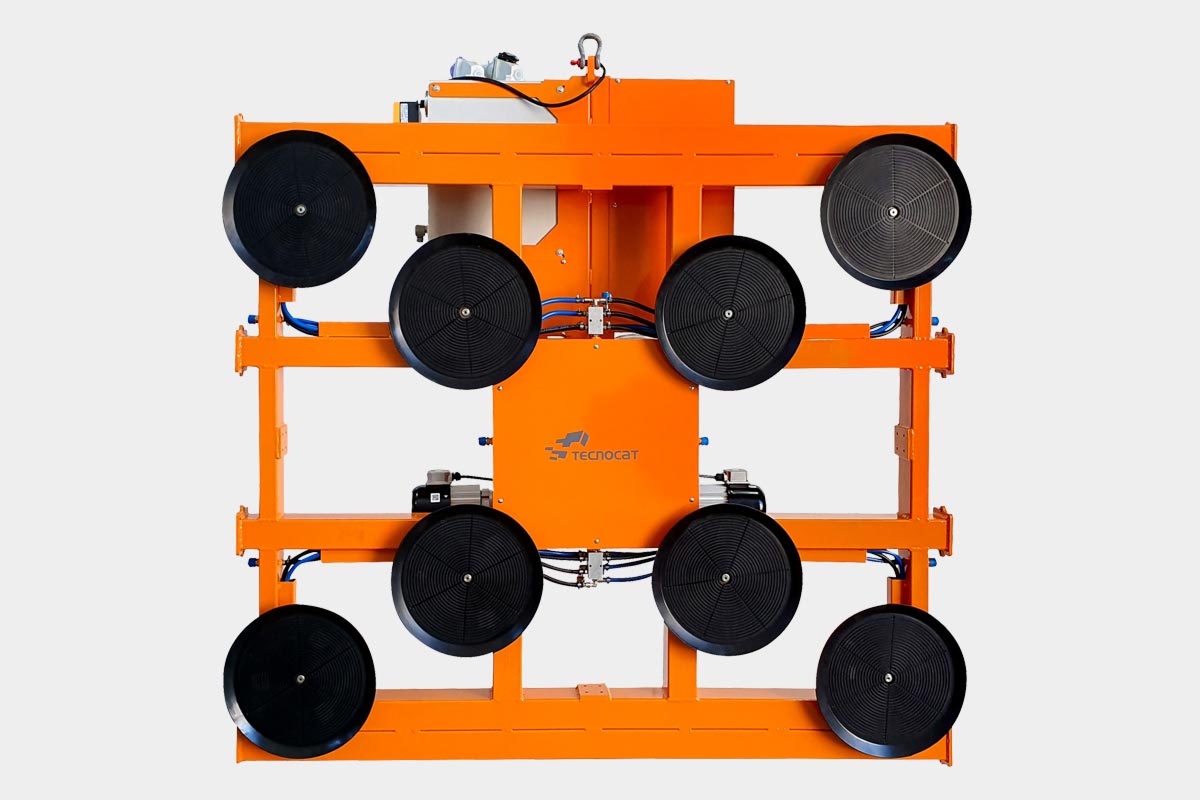

VP-GB8 Data

Maximum load capacity according to EN13155 1000 kg
Equipment weight 402 kg

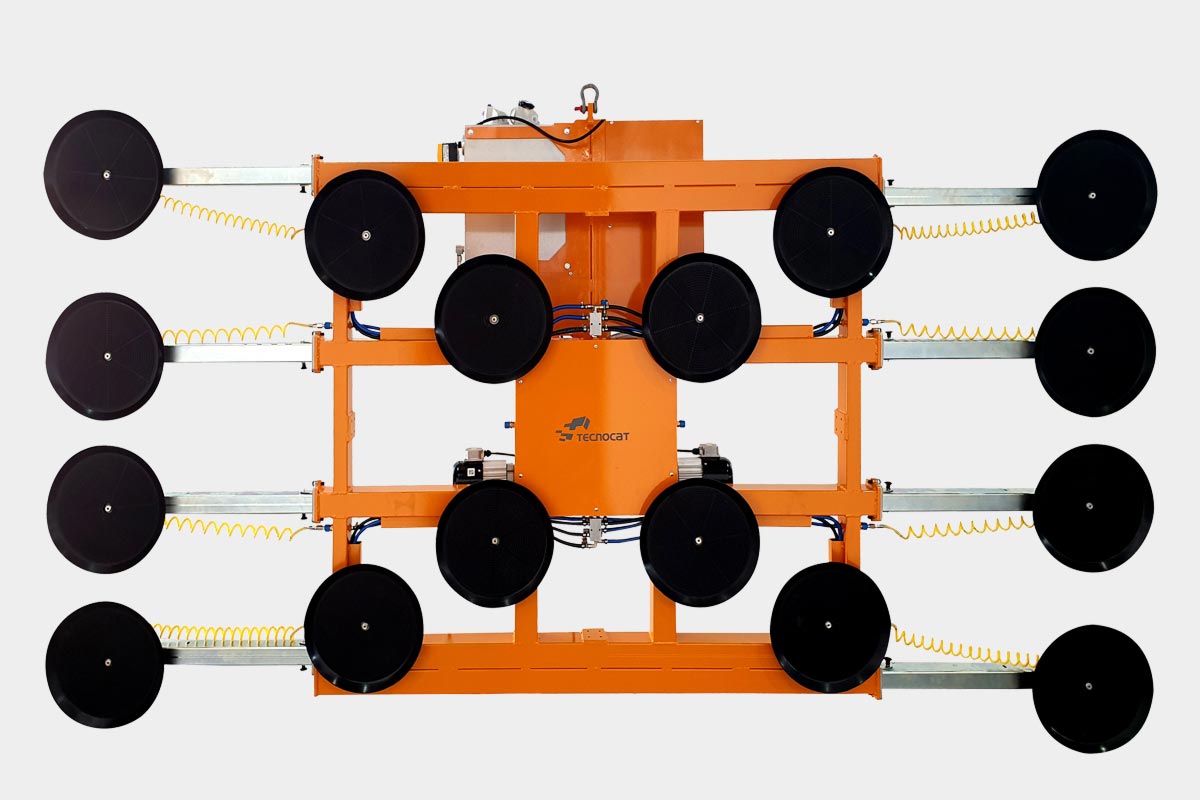

VP-GB8+8 Data

Maximum load capacity according to EN13155 2000 kg
Equipment weight 530 kg

VP-GB8.4 Data

Maximum load capacity according to EN13155 1500 kg
Equipment weight 425 kg

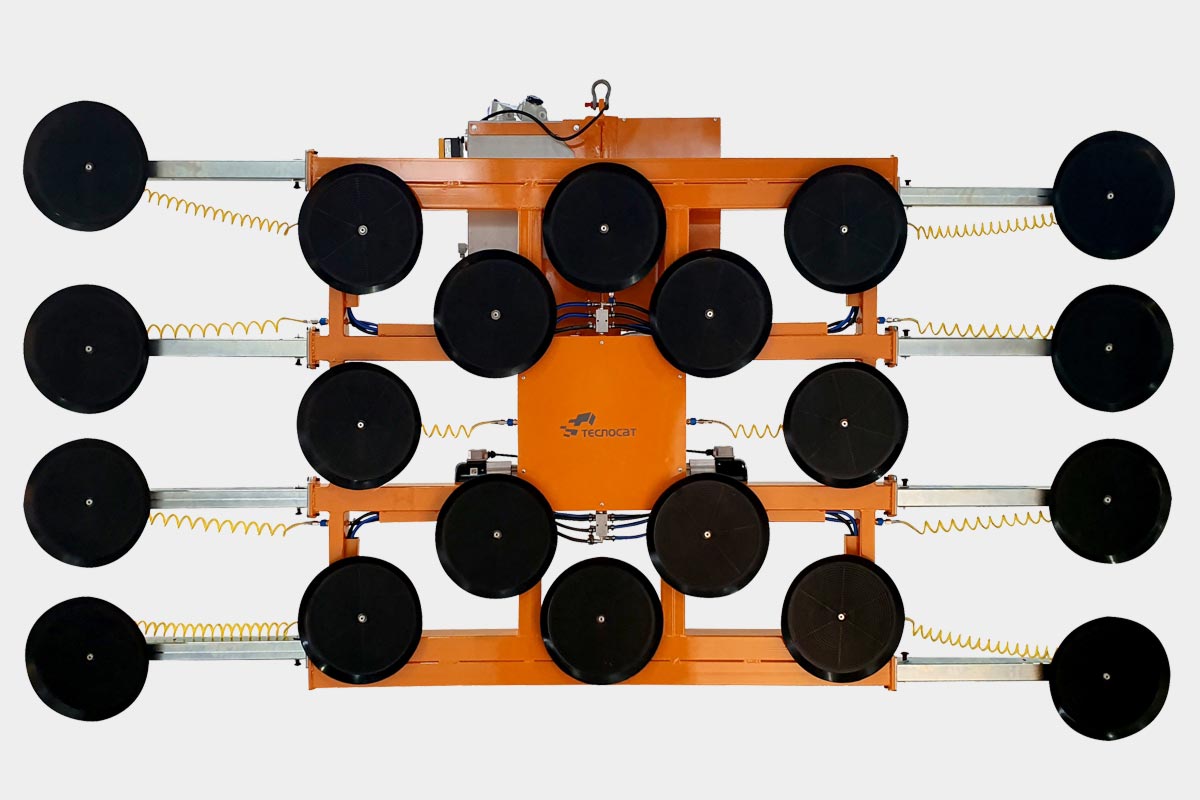

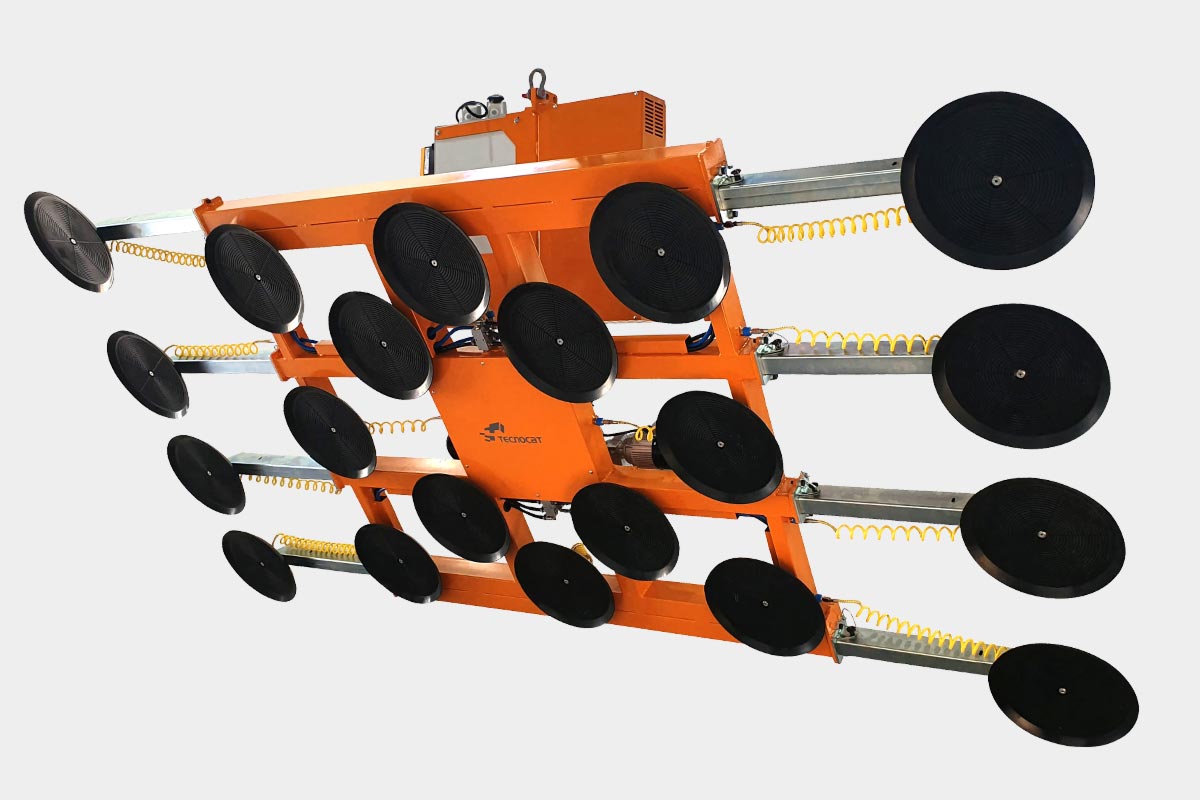

VP-GB8.4+8 Data

Maximum load capacity according to EN13155 2500 kg
Equipment weight 553 kg

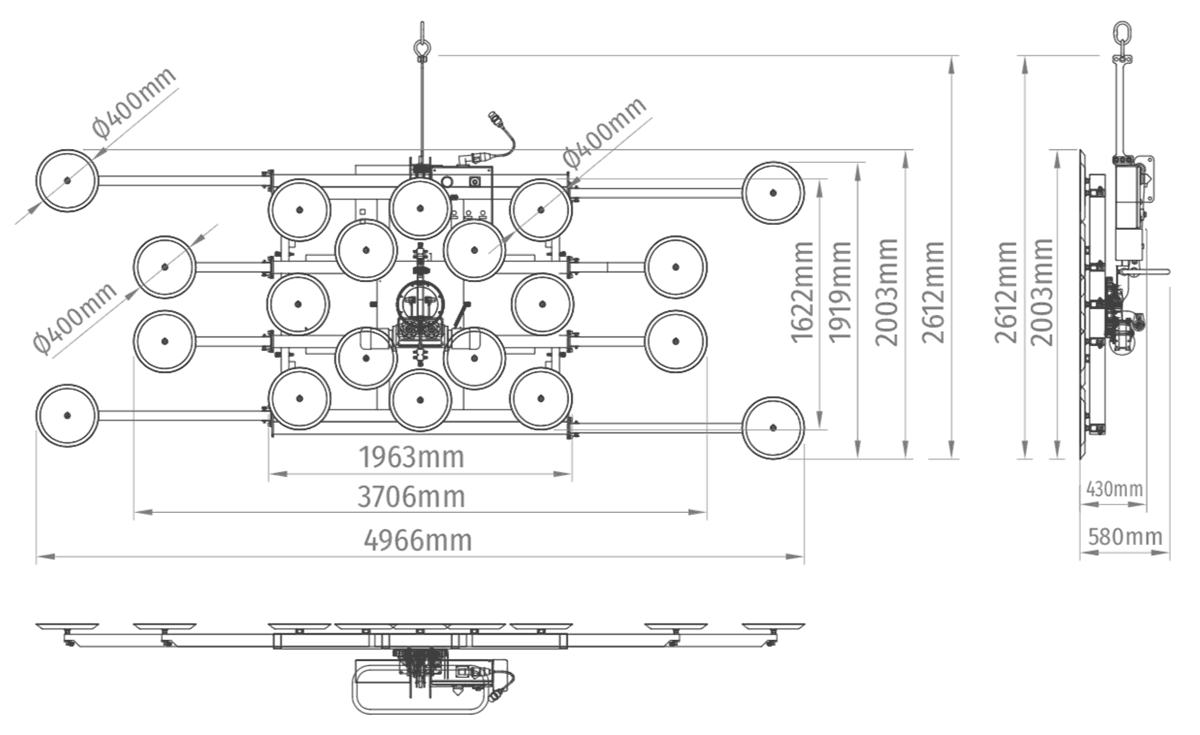

VP-GB8 Drawings
