VL2-GB4 | VL2-GB4+2 | VL2-GB4+4

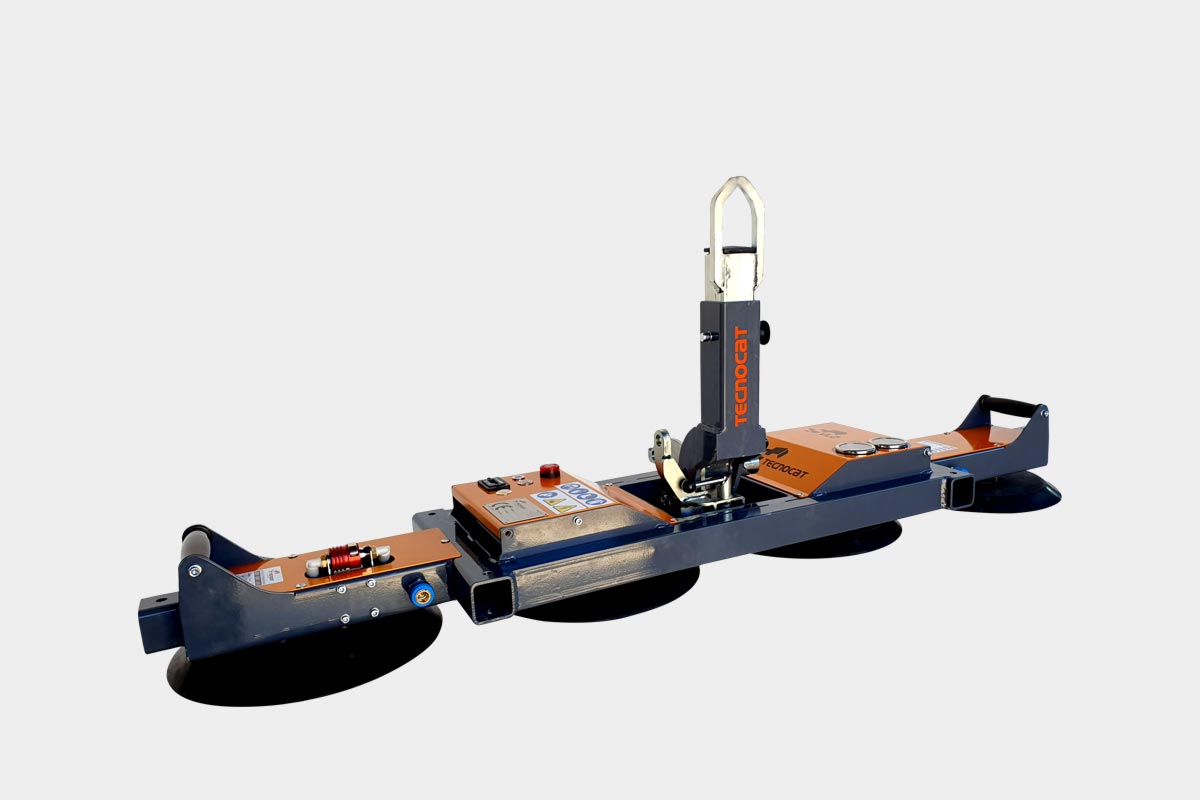

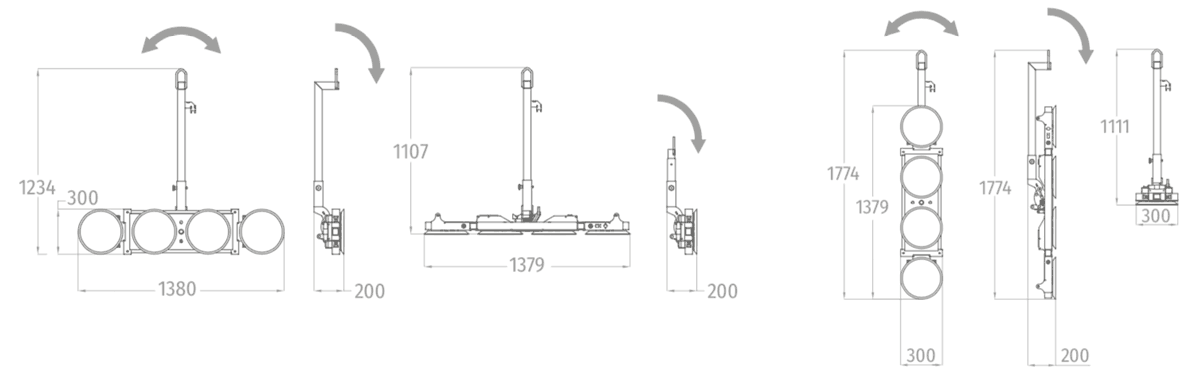

VL2-GB4 equipment is light and compact, with great load capacity. It has a double safety vacuum circuit for the facilities, according to the EN-13155 standard.
It works entirely with batteries, and incorporates charge and vacuum indicators for each circuit, and security alarm as well.
Its reduced width allows installations in very narrow places such as between façade and scaffolding.

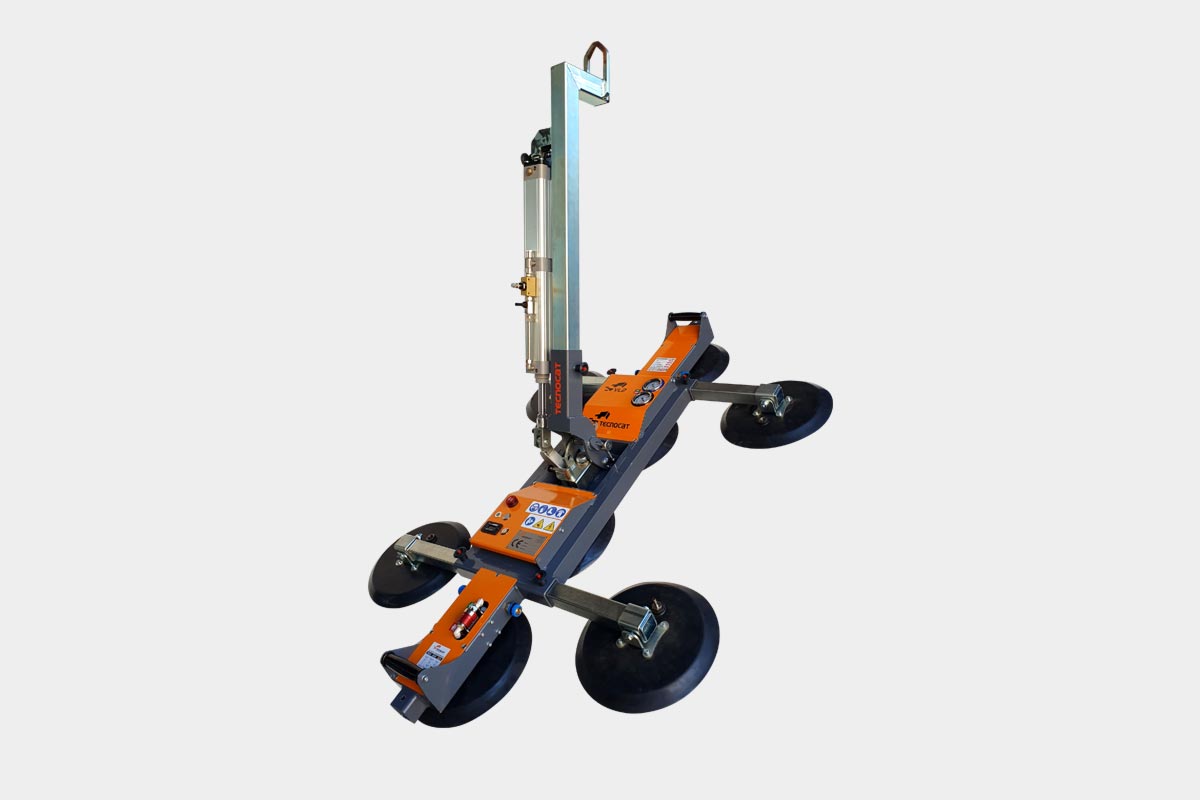

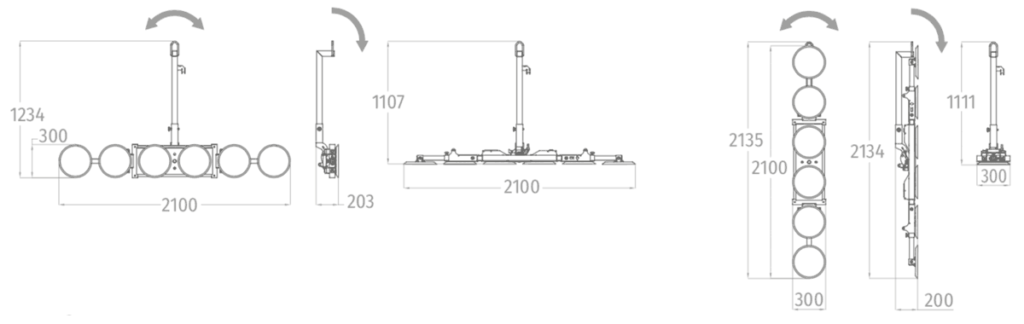

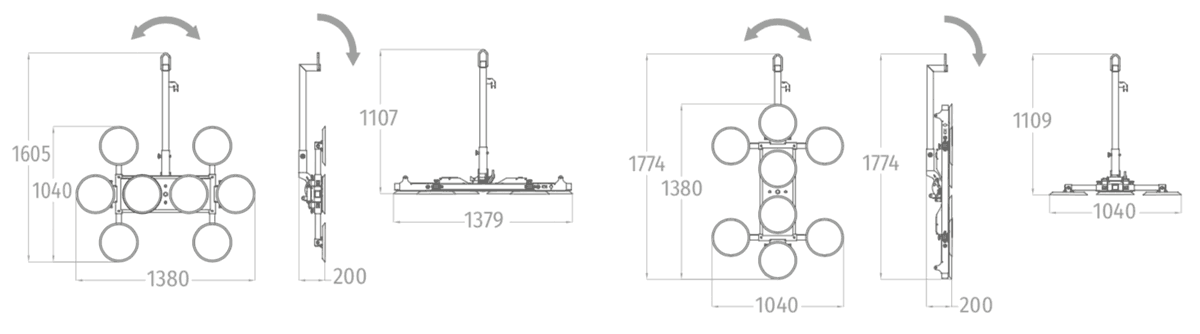

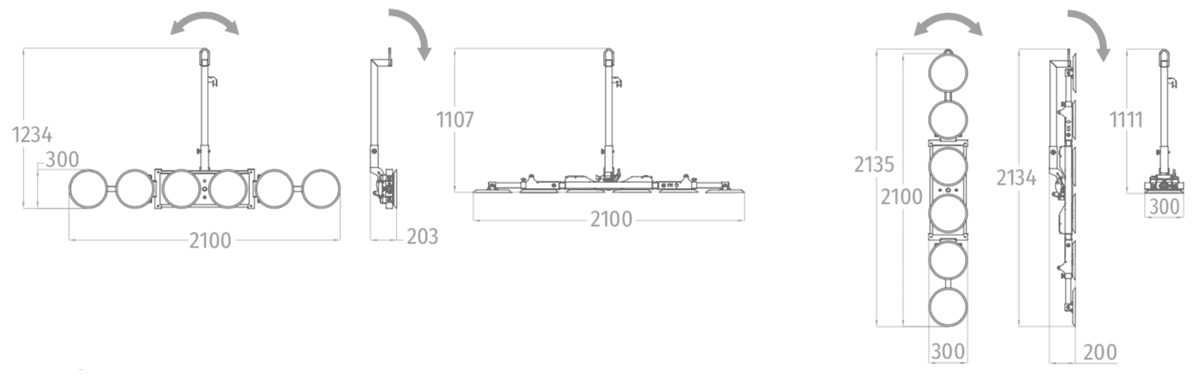

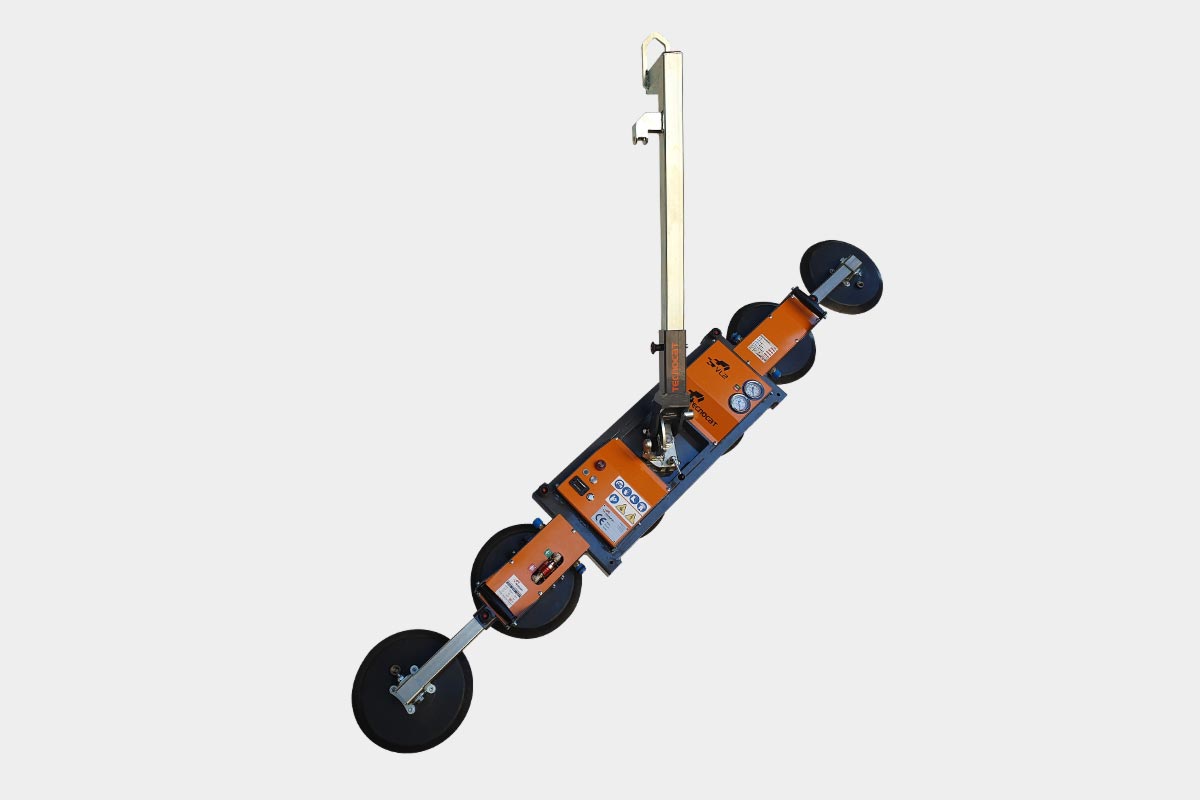

Central suction plates are removable and can be adapted to different sheet formats. Adding 2 or 4 extensions (VL2-GB4+2 or VL2-GB4+4 models) allow to increase the grip surface and capacity for larger sheets.
Optional PI-VL Manual Hydraulic Piston is recommended, which allows manual tilting under load. Optional CM-VL Metal protection box is very recommended as well.
|90° - 180° - 270° - 360°|
|0° - 60° - 90°|
|BATTERY CHARGE 220-240 V AC 50-60 HZ|
|OK - BATTERY 12 V - Running period 20 h aprox|
- METAL HANGING EXTENSION 2 SIZES
