XL0-150

The XL0-150 equipment is light and compact, with a high load capacity and battery operation. It has a double safety vacuum circuit for the handling and installation of glass on site, according to the EN-13155 standard.

Incorporates new digital control modules in line with industry 4.0. It has battery and vacuum level indicators with light and acoustic alarm.

The reduced dimensions allow complex installations in very narrow places such as between the frontage and the scaffolding.

XL0-150 Data

Maximum load capacity 300 kg
Maximum load capacity according to EN13155 90 kg
Equipment weight 24 kg
Electrical power 220-240 V AC 50-60 HZ
Nominal electrical power 60 W
Equipment produced according to EN13155 OK
Vacuum system air flow 30 L/min
Manually tilting equipment 0º - 60º - 90º
Energy autonomy by batteries OK Battery 12V
Equipment support system OK

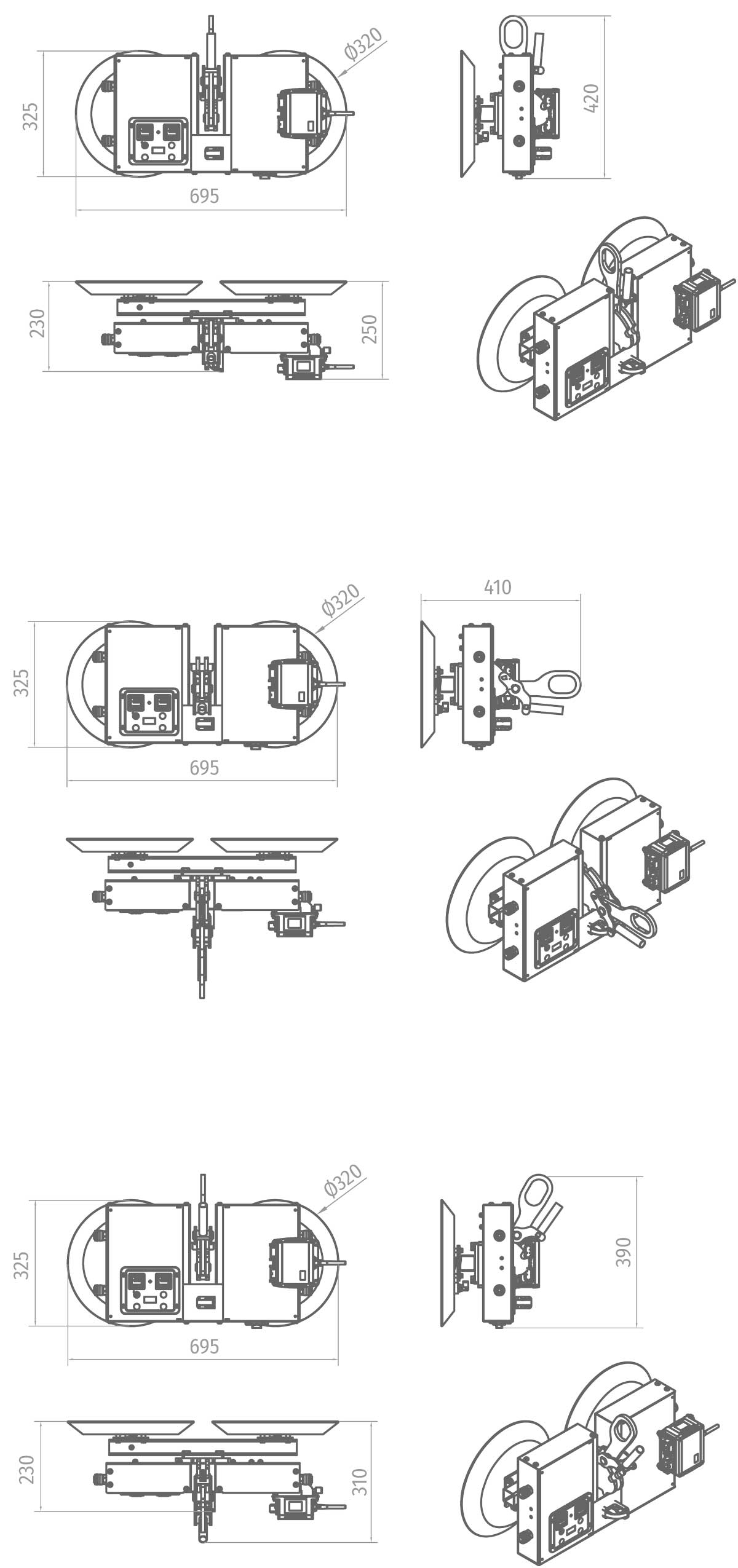

XL0-150 Drawings

XL0-150-PLANOS-FICHA-TECNICA

Optional

  • CM-VC METAL BOX
  • FU-P COVERS
  • MI-04A WIRELESS REMOTE CONTROL
