XL1-600G | XL1-600G+4AL-XL1

The XL1-600G is lightweight and compact, with high load capacity and battery operation. It has a double safety vacuum circuit for the handling and installation of glass on site, according to the EN-13155 standard.

This equipment incorporates new digital control modules in line with the Industry 4.0. It has battery and vacuum level indicators with luminous and acoustic alarm. Through an app you can obtain information about the equipment, diagnostics and alarms.

The small dimensions allow complex installations in very narrow places such as between facade and scaffolding.

The central suction cups are configurable and can be quickly adapted to different sheet formats. By adding 2 or 4 extensions (model XL1-600G + 4ALXL1), the gripping surface and capacity for larger sheets can be increased.

The PI-XL1 hydraulic piston is available as an option, which allows manual tilt under load, as well as the CM-XL1 metal transport and protection box.



XL1-600G DATA

Maximum load capacity according to EN13155 300 kg
Equipment weight 45 kg

XL1-600G+4AL-XL1 DATA

Maximum load capacity according to EN13155 600 kg
Equipment weight 65 kg

COMMON DATA

Equipment produced according to EN13155 OK
Manually rotating equipment 360°
Manually tilting equipment 0° - 60° - 90°
Vacuum system air flow 30 L/min
Equipment support system OK
Nominal electrical power 60 W
Electrical power BATTERY CHARGE 220-240 V AC 50-60 HZ
Energy autonomy by batteries OK - BATTERY 12 V - Running period 12 h aprox
Equipment support system OK

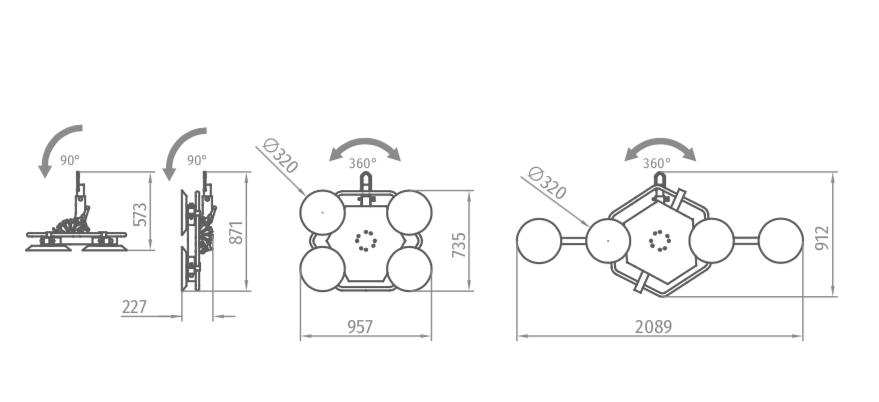

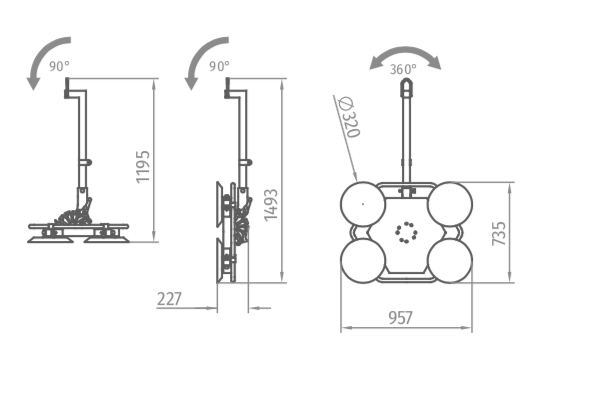

XL1-600G DRAWINGS

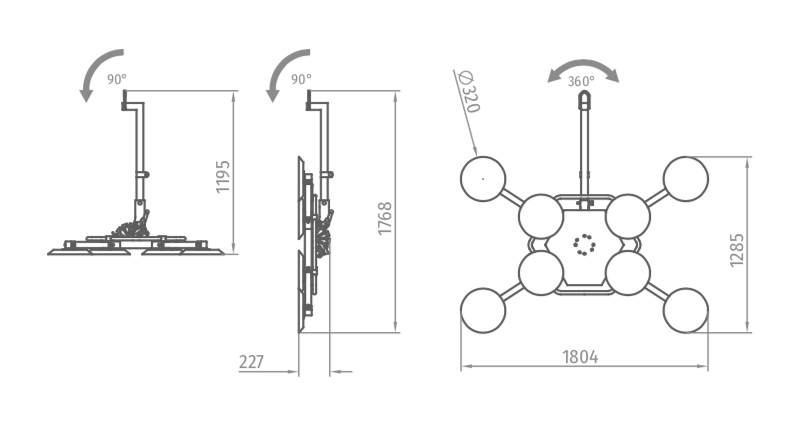

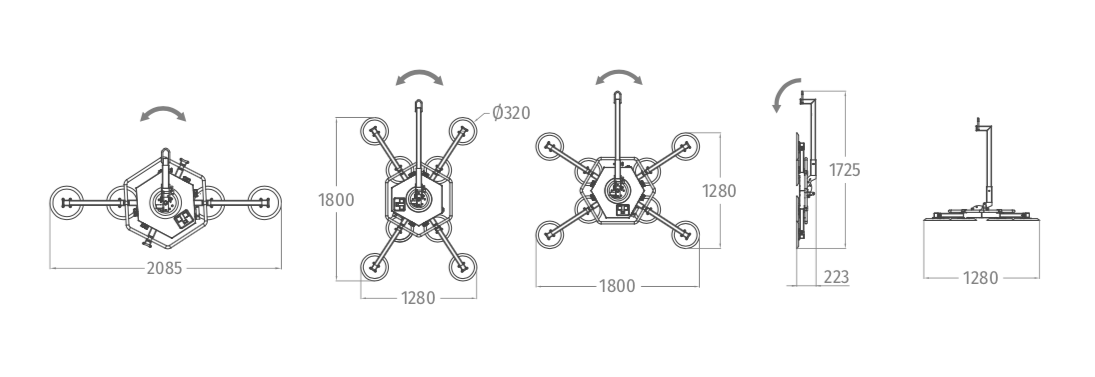

XL1-600G+4AL-XL1 DRAWINGS

INCLUDED

  • SUPPORT WITH WHEELS
  • FIXED HOLDING EXTENSION 2 SIZES

OPTIONAL

  • CM-XL1 METAL BOX

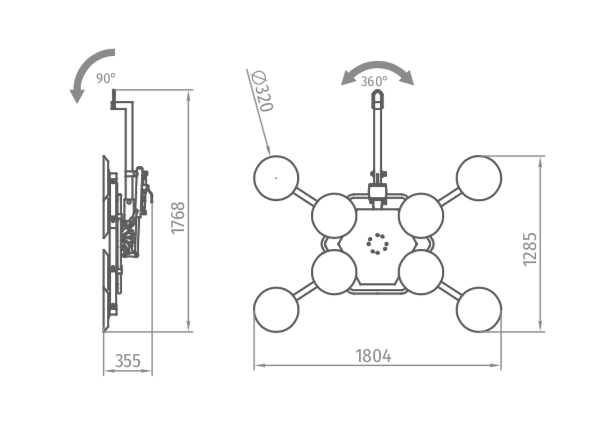

  • PI-XL1 HYDRAULIC TILTING PISTON
  • MI-04A WIRELESS REMOTE CONTROL
  • RVS-01 CAMERA
  • ALS-C1 AUXILIAR LIGHT

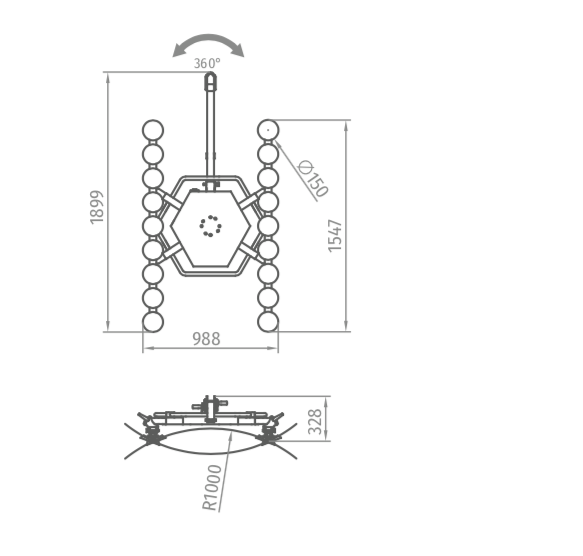

  • C150-XL1 CURVED GLASS ARM 9+9 SUCTION CUPS Ø125 (270KG)

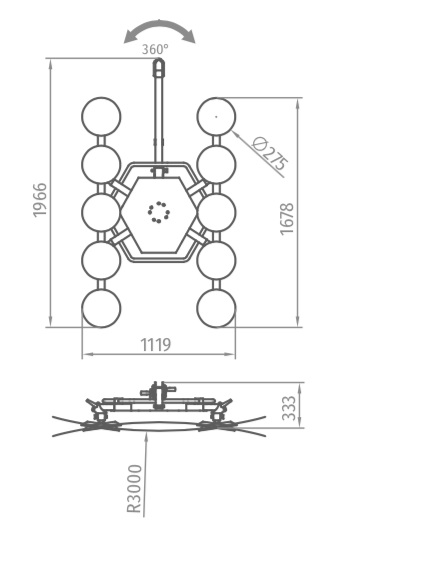

  • C275-XL1 CURVED GLASS ARM 5+5 SUCTION CUPS Ø275 (500KG)
  • 4AL-XL1
